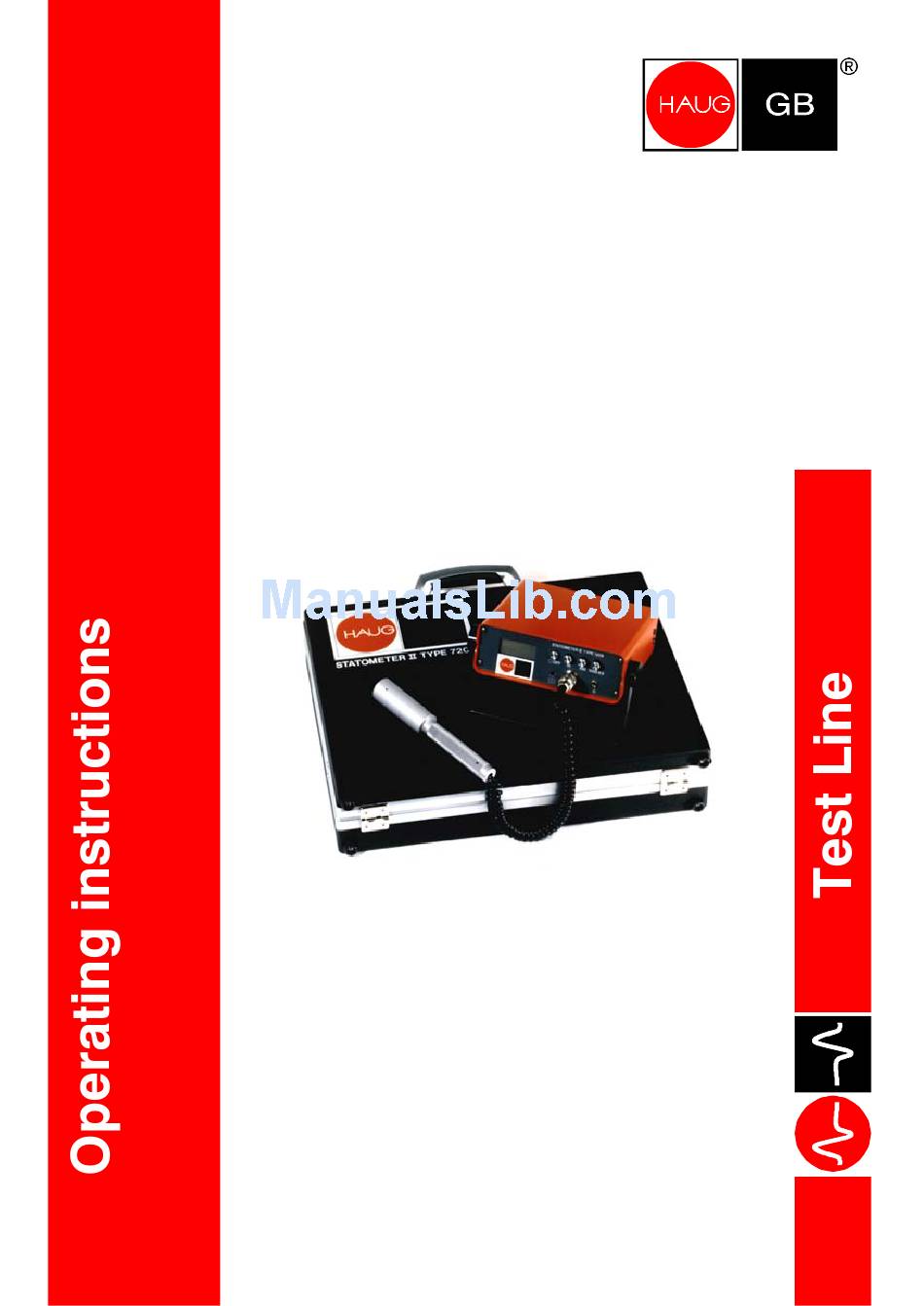

- Page 1 Statometer II...
- Page 3 Perform a visual inspection to determine any damage to the unit due to transportation. In case of missing parts or other defects, complain to the forwarder without delay. Inform a representative of the company HAUG GmbH & Co. KG in order to ensure that the unit is repaired or replaced.
-
Page 4: Intended Use
Only use NiMH cells! Intended use The Statometer II is intended for the measurements of electric fields on flat surfaces. It provides fast measurements of electric fields created, for example, through charges on surfaces of plastic, paper, glass and other materials. - Page 5 Design, control elements Figure 1 Pushbutton switch (unit off) Pushbutton switch (unit on and range selection) Display (digital or analog) Carrying handle / stand Recorder output Measuring head port Ground connection Figure 1 Figure 2 Set mains voltage Fuse holder 10.
- Page 6 If required, a recording instrument can be connected to the recorder output (Section 3, item Connect the Statometer II to the mains unless working in battery mode. Put unit into operation. In case of battery operation, always ensure grounding! The display will indicate low battery voltage.
- Page 7 Setting the mains voltage On delivery from the factory, the unit is set to a voltage of 230 V. Check the set mains voltage by reading the number on the fuse holder (refer to Section 3, Para. Changing the voltage range: Switch off the unit and isolate from the mains.
- Page 8 Application Preconditions: The Statometer II and its components must have been connected correctly. The position of the Statometer II does not affect its functioning. Determination of the field intensity Check whether the chassis ground connection has been made. No reliable measurements can be made unless the unit is grounded via the ground terminal (Section 3, item 7).
- Page 9 Measuring examples: Example 1 Example 2 Measuring head Measuring head Capacitor field Flat surface display x 1.5 (calibrated in a capacitor field with a plate size 300 mm x 300 mm) Example 3 Example 4 Measuring head Measuring head Convex surface Concave surface indicated measuring value too small indicated measuring value too high...
- Page 10 As/m Remedy of defects In case of malfunction in connection with the Statometer II, first check for correct installation and fusing (for replacement, refer to Section 7.2). If this does not solve the problem, please return the Statometer II and the measuring head to HAUG for a check-up.
- Page 11 This unit does not include any parts which can be repaired by the operator. HAUG only is authorized to repair or calibrate the unit. Should the unit prove defective or if a defect is suspected, switch off unit immediately and secure against subsequent reuse.
-
Page 12: Technical Data
Technical data Characteristics and specification Reference temperature 23 °C Display: Digital (12.7209.000) -digit liquid-crystal display Analog (12.7215.000) Moving-coil instrument with mirrored scale, polarity display by means of light-emitting diodes 3 mm Measuring ranges: Range 1 -20 kV/m to +20 kV/m Range 2 -200 kV/m to +200 kV/m Range 3... -
Page 13: Ambient Conditions
Ambient conditions Ambient temperature: Reference value + 23 °C ±1 °C Rated application range 0 °C to +40 °C Extreme range for storage and transport -20 °C to +60 °C Humidity: Reference range 45 % to 75 % RF Limit range of operation 10 % to 85 % RF Rated application range 20 % to 80 % RF... - Page 16 made by D – 0225 – GB 2012-01-25...
