Mohu Sail Instructions

INSTRUCTIONS
FIRSTSTAGE AMPLIFIED INDOOR / OUTDOOR HDTV ANTENNA
30 ft. Coaxial Cable

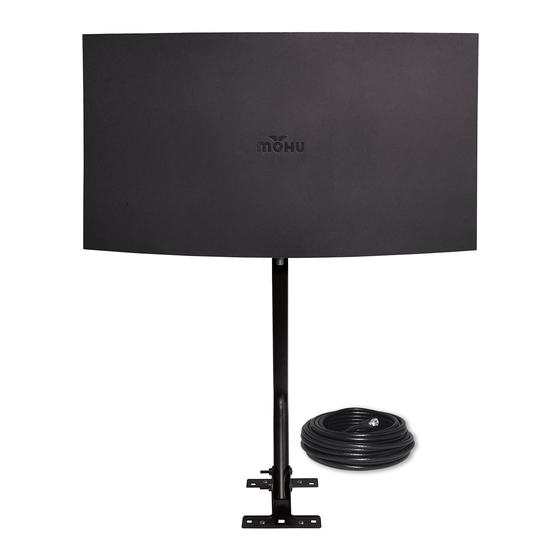

Sail Antenna
Power Injector USB Power Adapter*
*Actual USB power adapter may di°er in appearance.
FOLLOW ALL SAFETY PROCEDURES, WARNINGS, AND
INSTRUCTIONS WHEN INSTALLING YOUR ANTENNA.
SAFETY PROCEDURES
- Make sure there is another person present (on the ground) while
installing the antenna.
- DO NOT attempt to mount the antenna on a windy, rainy, or
snowy day.
Select mounting location;
ideally wood framework
indoors (in attic) or outdoors
(roof/siding).
Position the Mast Base (fat
surface to wood) to create an
" " shape when viewed from
1
straight on.
Mark the Mast Base position on
the surface and drill pilot holes,
1 ½" deep, for each of the 50mm
Screws. For outdoor installation,
place the Sealing Pads over the
pilot holes, and the Mast Base on
top of the Sealing Pads. Tighten
the four 50mm Screws.
Place the U-Bolt under the
Mounting Bracket, and secure the
Mounting Bracket to the antenna
using the four Screws and
Washers. Place the other
Mounting Bracket on the U-Bolt
and add the Wing Nuts.
Place the Mast End Cap on the
2
long end of the Mast. Insert the
Mast between the Mounting
Brackets and tighten the Wing
Nuts.
Insert the short end of the Mast
into the Mast Base. Use the two
Hex Bolts to secure the Mast to
the Mast Base.
If you have any di˜culties with the installation of your antenna, please contact Mohu®.
Si tiene alguna difcultad instalando su antena, por favor contacte a Mohu®.
support@gomohu.com
BOX INCLUDES
Antenna Mounting Hardware
x4 - Screws
x4 - Washers
x4 - 50mm Screws
x2 - Wing Nuts
x1 - U-Bolt
II 1.877.825.5572 II
x2 - Hex Bolts
x2 - Flange Nuts
x4 - Sealing Pads
x1 - Mast End Cap
IMPORTANT
MOUNT THE ANTENNA AT LEAST 20 FT. FROM ALL
POWER LINES OR UTILITY POLES.
POWER LINE WARNING
If you intend to mount the antenna on a rooftop, make sure to
mount it at least 20 ft. away from any power lines or utility poles.
3
4
POWER OPTIONS:
a. TV's USB Port
b. Wall Outlet
www.gomohu.com
Mounting Brackets
Mast Base
Mast
Connect one end of the 30 ft. Coaxial
Cable to the connector on the antenna
(see illustration below) and connect the
other end of the Coaxial Cable to the
Power Injector.
Note: Excessive cable length may cause reception
loss.
Connect the coaxial cable from the
Power Injector to the ANT/IN connector
on the back of the TV.
The Power Injector must be powered in
order to function. Plug the Power
Injector's USB cable into an open USB
port on the back of the TV.
If the TV does not have a USB port, use
the included USB Power Adapter with any
standard 120V wall outlet.
Note: If using an RF
splitter, follow the RF
splitter installation
instructions on the
back of this page.
30 ft.
Coaxial Cable
Power Injector
USB Cable (attached)
Back of TV
OR
Continued
Coaxial
Cable
(attached)
ANT/IN
