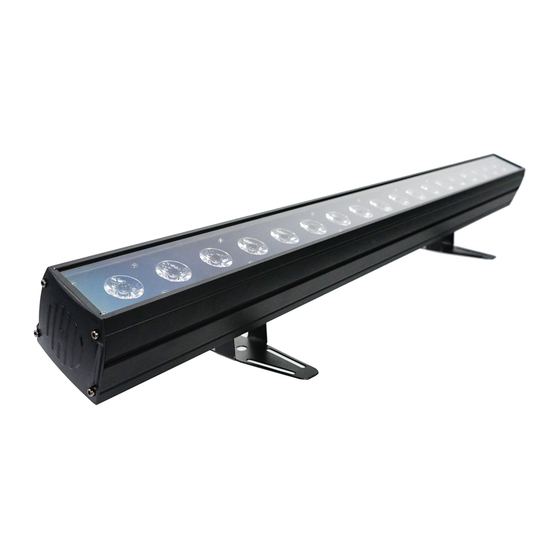

FOS BAR Pente
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FOS BAR Pente and is the answer not in the manual?

Questions and answers

Related Manuals for FOS Technologies FOS BAR Pente

Summary of Contents for FOS Technologies FOS BAR Pente

  • Page 1 FOS BAR Pente...

  • Page 2: Product Specifications

    PRODUCT SPECIFICATIONS TECHNICAL SPECIFICATION Voltage: 110/240 Volt AC, 50/60 Hz. Power Consumption: 180 Watt. Light Source: 18x 12 Watt RGBW + Amber LEDs. Effects: Red, Green, Blue, White & Amber color mixing. Independent pixel control, chase effects, peak meter effect. Control: DMX, Auto, Sound modes.
  • Page 3 PROTECTION AGAINST SOLIDS AND WATER Only for IP-rated fixtures The protection level of a housing is set by applied standards. For classification there is used the IP-Code. It contains the declaration „IP“and two following numbers. The first number characterizes the protection against harmful effects of solids, the second is rating the water protection.

  • Page 4: Installation

    Up / Down buttons you’re moving through the sub menu’s options, with Enter, you are confirming your choice. The FOS Bar Pente offers the following options: A001: set the DMX address from A001 to A512.

  • Page 5: Channel Modes

    CC00: Color change with adjustable speed (0 - 99). Ed00: Color fade with adjustable speed (0 – 99). Er00: Color run with adjustable speed (0 – 99). Po00: Color faded run with adjustable speed (0 – 99). Tr00: Color pixel (pattern A) run with adjustable speed (0 – 99) TU00: Color pixel (pattern B) run with adjustable speed (0 –...
  • Page 6 5. Pattern Choice & Speed 6. Red 7. Green 8. Blue 9. White 10. Amber 28 Channels 1. Master Dimmer 2. Shutter 0 – 4 Shutter Open • • 5 – 255 Strobe 3. Functions 0 – 35 Off • •...
  • Page 7 90 Channels 1. LED 1 Red 2. LED 1 Green 3. LED 1 Blue 4. LED 1 White 5. LED 1 Amber 6. LED 2 Red 7. LED 2 Green 8. LED 2 Blue 9. LED 2 White 10. LED 2 Amber 11.
  • Page 8 46 – 55 Pattern 2 • • 56 – 65 Color Selection • 66 – 75 Color Jump 76 – 85 Gradient • 86 – 245 Auto Patterns (in combination with channel 4 & 5) • • 246 – 255 Sound Mode 4.

  • Page 9: General Information

    General Information Replacing a fuse: Always disconnect the fixture from main power before replacing a fuse. Use only the appropriate fuse, with the same type and rating. A fuse with different rating, can damage the fixture in case of failure. Risk of electric shock and / or fire: The fixture must be earthed, supplied always with its nominal voltage and cleaned periodically from dust.
