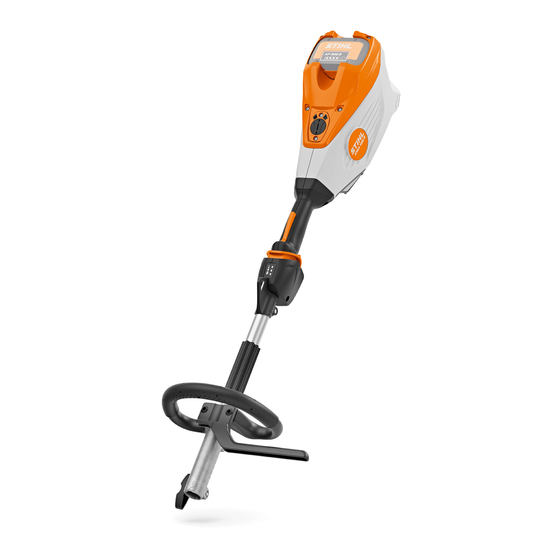

STIHL KMA 135 R
Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KMA 135 R and is the answer not in the manual?

Questions and answers

Related Manuals for Stihl KMA 135 R

Summary of Contents for Stihl KMA 135 R

  • Page 1 STIHL KMA 135 R Instruction Manual...

  • Page 3: Table Of Contents

    Removing and Fitting the Battery ....13 19.2 STIHL AP battery ........19 9.1 Inserting the Battery .

  • Page 4: Introduction

    This user manual 24.1 KombiEngine STIHL KMA 135 R ....22 is intended to help you use your STIHL product safely and in an environmentally friendly manner over a long service life.

  • Page 5: Symbols Used With Warnings In The Text

    – User instructions for AP belt bag with connecting cable – Safety notes and precautions for STIHL AP battery KombiEngine and Battery – Instruction manual for STIHL AL 101, 300, 500 chargers – Safety information for STIHL batteries and products with built-in batteries: www.stihl.com/safety-data-...

  • Page 6: Icons

    English 4 Safety Precautions 6 Trigger 1 LED emits red light. The battery is too warm or Switches the KombiEngine on and off. too cold. 7 Trigger lockout The trigger lockout unlocks the trigger. 4 LEDs flashing red. There is a fault in the battery.

  • Page 7: Intended Use

    Manual. Intended Use ► If the KombiEngine or battery is passed on to another The STIHL KMA 135 R KombiEngine is designed to power a person: Always give them the User Manual. number of different STIHL KombiTools. ► Make sure that the user meets the following conditions: The KombiEngine may be used in the rain.

  • Page 8: Clothing And Equipment

    KombiEngine. medicines or drugs. ￭ Electrical components of the KombiEngine can produce ► If you have any doubts, be sure to consult a STIHL sparks. Sparks may cause fires and explosions in highly dealer. flammable or explosive environments. Persons may be seriously or fatally injured and property may be damaged.

  • Page 9: Safe Condition

    ► Do not expose the battery to microwaves. KombiEngine. ► Protect the battery from chemicals and salts. ► Replace worn or damaged labels. ► If you have any doubts, be sure to consult a STIHL Safe Condition dealer. 4.6.1 KombiEngine 4.6.2...

  • Page 10: Working

    ► Avoid contact with the fluid. ► Stop working, remove the battery and consult a STIHL servicing dealer. ► In the event of contact with the skin: wash the affected areas with plenty of soap and water.

  • Page 11: Storing

    English 4 Safety Precautions ► Remove the battery. ► Remove the battery. ► If a KombiTool is mounted: Transport the KombiEngine ► Store the KombiEngine out of the reach of children. as described in the User Manual supplied with the ￭...

  • Page 12: Cleaning, Maintenance And Repair

    ► Adjust the loop handle, @ 8.2. ► If the KombiEngine or the battery require servicing or repairs: Contact your STIHL dealer for assistance. ► Check the controls, @ 11.1. ► If 3 LEDs on the battery flash red while you are checking the controls: Remove the battery and contact your STIHL dealer for assistance.

  • Page 13: Charging The Battery, Leds

    For specified charging times see www.stihl.com/charging-times. ► Recharge the battery fully as described in the instruction manual for the STIHL AL 101, 300, 500 chargers. Displaying State of Charge 80-100% 60-80% ►...

  • Page 14: Adjusting Kombimotor For User

    English 8 Adjusting KombiMotor for User Other approved carrying systems are listed in this User Manual, @ 21. Adjusting and Setting the Loop Handle The loop handle can be set to different positions to suit the height and reach of the user. ►...

  • Page 15: Removing And Fitting The Battery

    English 9 Removing and Fitting the Battery 9 Removing and Fitting the Battery 10 Switching the KombiMotor On/Off Inserting the Battery 10.1 Switching on the KombiEngine ► Hold the KombiEngine with your right hand by the control handle – wrap your thumb around the control handle. ►...

  • Page 16: Checking Kombiengine And Battery

    ► If the trigger can be pulled: Do not use your KombiEngine ► Hold and control the KombiMotor as described in the and contact your STIHL servicing dealer for assistance. instruction manual supplied with the KombiTool. The trigger lockout is faulty.

  • Page 17: Operation

    14.1 Transporting the KombiEngine ► Switch off the KombiEngine and remove the battery. 15.2 Storing the Battery STIHL recommends keeping the battery in a charging state Carrying the KombiEngine between 40% and 60 % (2 green LEDs lit). ► Carry the KombiEngine properly balanced by the shaft ►...

  • Page 18: Cleaning

    ► Clean the air filter. ► Switch off the KombiEngine and remove the battery. Annually ► Have the KombiEngine checked by a STIHL dealer. 17.2 Repairing the KombiEngine The KombiEngine cannot be repaired by the user. ► If the KombiEngine is defective or damaged: Do not use the KombiEngine and contact your STIHL dealer.

  • Page 19: Troubleshooting

    ► Charge battery as described in the User Manual does not start up green. battery is too low. for chargers STIHL AL 101, 300, 500. when switched on. 1 LED emits red The battery is too warm or ► Remove the battery.
  • Page 20 The battery is not fully ► Fully charge battery as described in the User runtime is too short charged. Manual for chargers STIHL AL 101, 300, 500. The battery service life has ► Replace battery. been exceeded. The power levels The trigger is depressed ►...

  • Page 21: Specifications

    2 dB(A). – Sound power level L to ISO 3744, ISO 10517, 19.1 KombiEngine STIHL KMA 135 R ISO 22868: 86 dB(A) to 101.5 dB(A). K-value – Permitted batteries: (uncertainty) for sound power level is 2 dB(A).

  • Page 22: Combinations With Kombitools

    – STIHL FCS-KM: Edger – STIHL FH-KM 145°: Scrub cutter – STIHL FS-KM: Brushcutter – Use the STIHL FS-KM KombiTool with mounted barrier bar only, @ 7.2. – Use the STIHL FS-KM KombiTool in the specified combinations only, @ 20.2.

  • Page 23: Stihl Fs-Km: Combinations Of Cutting

    English 20 Combinations with KombiTools 20.2 STIHL FS-KM: Combinations of Cutting Attachments, Deflectors and Carrying Systems A combination of KombiEngine and STIHL FS-KM may be used with the following cutting attachments: Cutting attachment Deflector Barrier bar at the Carrying system KombiEngine Mowing head with 2.4 mm diameter...

  • Page 24: Combinations Of Carrying Systems

    These symbols indicate original STIHL spare parts and original STIHL accessories. Full harness STIHL recommends the use of original STIHL spare parts and accessories. Despite ongoing market observation, STIHL is unable to judge the reliability, safety and suitability of other STIHL AR battery together with the support manufacturers' spare parts and accessories;...

  • Page 25: General Power Tool Safety Warnings

    Directives The safety precautions and warnings on avoiding an electric 2011/65/EU, 2006/42/EC, 2014/30/EU and 2000/14/EC and shock given under “Electrical Safety” do not apply to STIHL has been developed and manufactured in conjunction with cordless products.

  • Page 26: Electrical Safety

    English 25 General Power Tool Safety Warnings 25.3 Electrical safety c) Prevent unintentional starting. Check that the electric power tool is switched off before you connect it to the a) Electric power tool plugs must match the outlet. The plug mains, pick it up or carry it.

  • Page 27: Service

    English 25 General Power Tool Safety Warnings 25.7 Battery tool use and care d) Unused electric power tools must be stored out of the reach of children. Do not let anyone use the electric power a) Recharge only with the charger specified by the tool who is not familiar with it or has not read the manufacturer.
  • Page 28 0458-687-0121-A englisch www.stihl.com *04586870121A* 0458-687-0121-A...
