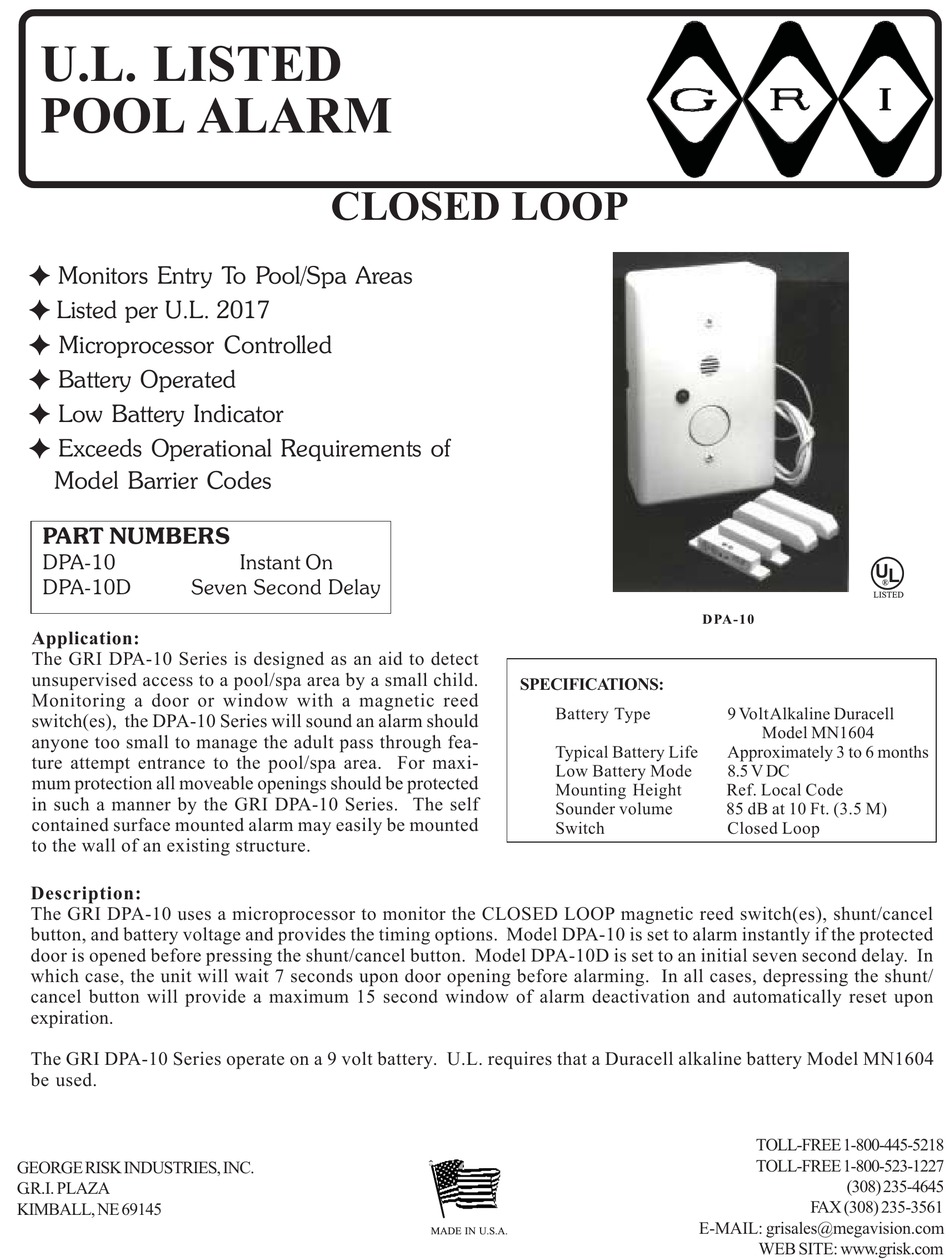

GRI DPA-10 Quick Manual

U.L. LISTED
POOL ALARM
. Monitors Entry To Pool/Spa Areas
. Listed per U.L. 2017
. Microprocessor Controlled
. Battery Operated
. Low Battery Indicator
. Exceeds Operational Requirements of
Model Barrier Codes
PART NUMBERS
DPA-10
DPA-10D Seven Second Delay
Application:
The GRI DPA-10 Series is designed as an aid to detect
unsupervised access to a pool/spa area by a small child.
Monitoring a door or window with a magnetic reed
switch(es), the DPA-10 Series will sound an alarm should
anyone too small to manage the adult pass through fea-
ture attempt entrance to the pool/spa area. For maxi-
mum protection all moveable openings should be protected
in such a manner by the GRI DPA-10 Series. The self
contained surface mounted alarm may easily be mounted
to the wall of an existing structure.
Description:
The GRI DPA-10 uses a microprocessor to monitor the CLOSED LOOP magnetic reed switch(es), shunt/cancel
button, and battery voltage and provides the timing options. Model DPA-10 is set to alarm instantly if the protected
door is opened before pressing the shunt/cancel button. Model DPA-10D is set to an initial seven second delay. In
which case, the unit will wait 7 seconds upon door opening before alarming. In all cases, depressing the shunt/
cancel button will provide a maximum 15 second window of alarm deactivation and automatically reset upon
expiration.
The GRI DPA-10 Series operate on a 9 volt battery. U.L. requires that a Duracell alkaline battery Model MN1604
be used.
GEORGE RISK INDUSTRIES, INC.
G.R.I. PLAZA
KIMBALL, NE 69145
CLOSED LOOP
Instant On
SPECIFICATIONS:
Battery Type
Typical Battery Life
Low Battery Mode
Mounting Height
Sounder volume
Switch
MADE IN U.S.A.
LISTED
D PA-10
9 Volt Alkaline Duracell
Model MN1604
Approximately 3 to 6 months
8.5 V DC
Ref. Local Code
85 dB at 10 Ft. (3.5 M)
Closed Loop
TOLL-FREE 1-800-445-5218
TOLL-FREE 1-800-523-1227
(308) 235-4645
FAX (308) 235-3561
E-MAIL: grisales@megavision.com
WEB SITE: www.grisk.com
®
