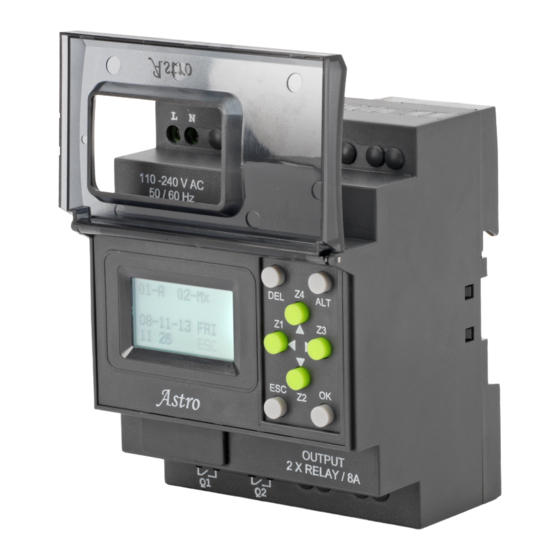

GIC Astro T2DDT0 Quick Start Manual

DIGITAL TIME SWITCH-
Cat. Nos.: T2DDT0
T3DDT0
"Astro" is an astronomical
applications. One can program the ASTRO to turn ON and turn OFF the light with
reference to the sunrise and sunset. R, Y, B inputs can be looped to address single
phase distribution or independently given to control 3 phase distributions. Relay
channels can be independently programmed for ON or OFF operation by specifying
the time offset with reference to sunrise and sunset or twilight rise and set.

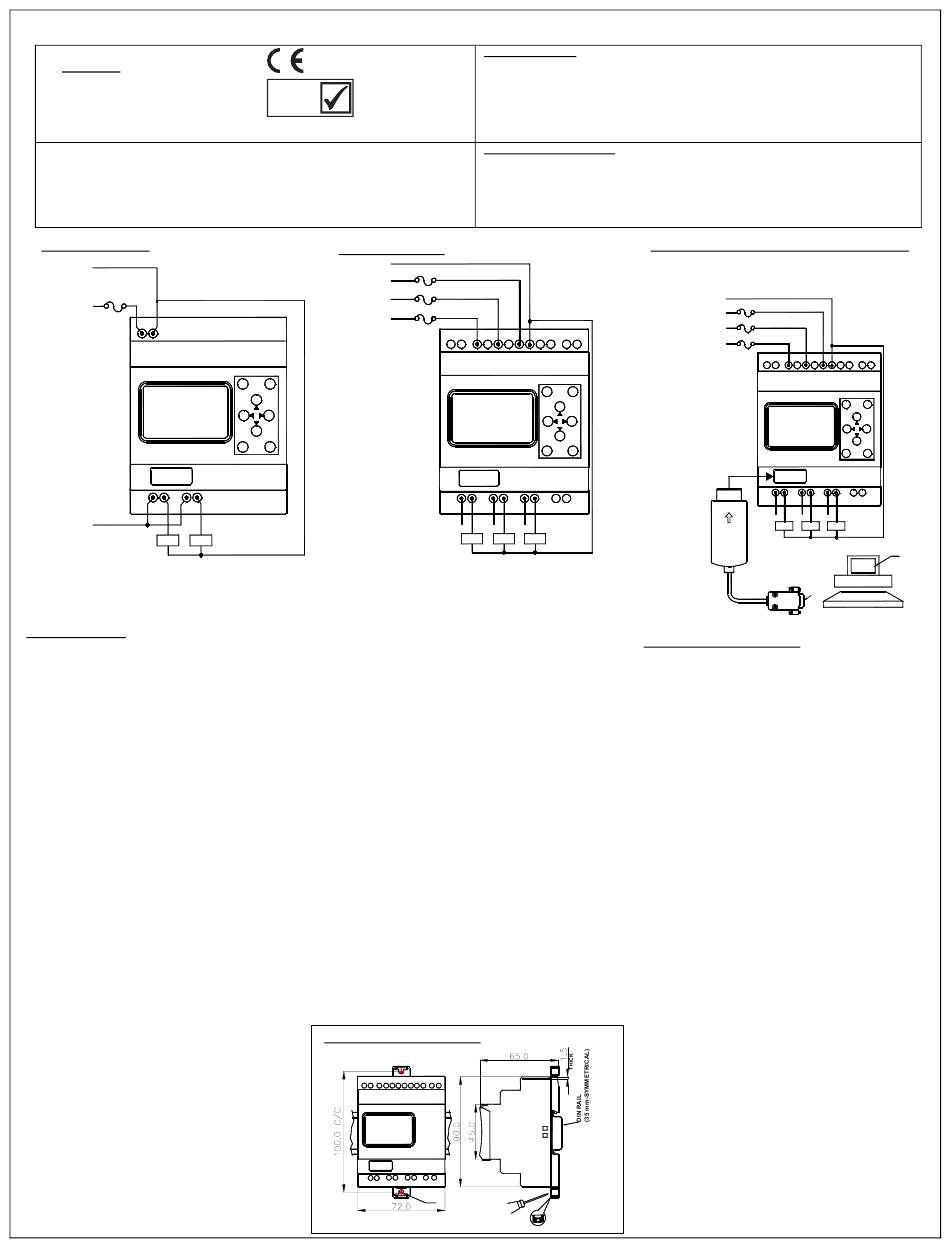

Single Phase Astro:
NEUTRAL
Supply
240 VAC
50/60 Hz
PHASE
250mA
L N
110 -240 VAC
50 / 60 Hz
Astro
Q1 Q2
PHASE
MC1 MC1
LOAD
1. MR1:- Coil of Contactor 1
2. MY2:- Coil of Contactor 2
BASIC FEATURES:
• Trigger Modes: The time settings of all outputs
can either be based on sunrise/sunset or
twilight. The trigger mode SRISE/SET
provide the reference time from sunrise/sunset,
while the trigger mode TWILIGHT will provide
the reference time from start/end of twilight. To
set this feature, refer page 3-> Screen tagged
as '6'.
• Operating Modes: ASTRO has three operating
modes ON, OFF, and PULSE. An 'ON' or 'OFF'
op-mode causes an output to be turned 'ON' or
'OFF' with respect to sunrise/sunset. A 'PULSE'
op-mode is to be used to have an output ON for
few seconds from a particular time. To set this
feature, refer page 3-> Screen tagged as '2'.
• Offset: It may be necessary to have an output
action before or after some
sunrise/sunset. This Offset from sunrise/sunset
can be achieved using OFFSET feature of the
ASTRO. ASTRO allows offset up to +/- 10:59. To
set this feature, refer page 3-> Screen tagged
as '1'.
• Off-Hours: This feature is to turn off any
output for a particular time period. Maximum 23
hours of Off-hours can be set individually for
every output. For example, off-hours from
23:00 to 2:00 will switch the output OFF for
three hours everyday. To set this feature, refer
page 3-> Screen tagged as '1'.
• Alternate Mode: In this mode, the Off-Hours
feature is applied to alternate
alternate days. This mode is useful to save
energy due to off-hours feature and is useful to
maximize load's life due to alternate action. For
details, see Alternate mode details. To set this
feature, refer page 3-> Screen tagged as '3'.
• Weekly Off: This feature automatically keeps
off the output on weekly off day(s). However
ASTRO allows to program weekly off day(s) and
related begin/end time. This feature offers
energy savings by switching an output OFF on
weekly-off day(s). To set this feature, refer
page 3-> Screen tagged as '1'.
Page 1
Astro™
RoHS
time switch specifically designed
Three Phase Astro:
N
B
Supply Ph
3 -Phase
4 wire Y
Ph
240 VAC
50/60 Hz
R
Ph
Z4
DEL ALT
Z1 Z3
ESC OK
Z2
OUTPUT
2 X RELAY / 8A
• Season Mode: During rainy season or in cloudy
atmosphere, sunlight may be insufficient. Hence
will
different time offset needs be programmed to control
light switching. User can program period of such
season and the related time-offset. This feature helps
switch lights early with respect to sun rise/set and
automatically move back to original settings after the
season period. To set this feature, refer page 3->
Screen tagged as '4'.
• Day-light Saving Time (DST): DST is the period in
which clocks in certain countries are set one hour or
more ahead of standard time to effectively use natural
daylight. ASTRO provides settings to easily define DST
start and end months and DST offset time to
effectively manage the shifting of clock year after year
without any manual intervention. To set this feature,
time of
refer page 3-> Screen tagged as '7'.
• UV/OV Mode: When Under / Over Voltage condition
prevails, load can be tripped off thereby protecting
load from
irregularities. Users can set Under & Over Voltage as
per their requirement. To set this feature, refer page
3-> Screen tagged as '5'.
• Modbus Communication: Three Phase version of
Astro supports Modbus RTU communication protocol
to read coil status, write or override coils, set season
periods etc. from SCADA software. Modbus related
information is mentioned on page 2. To set this
feature, refer page 3-> Screen tagged as '8'.
output on
MECHANICAL DIMENSIONS:
SAFETY NOTICE:
1. Only qualified persons are authorized to install the ASTRO.
2. Automation and control devices must be installed so that they are protected
against any risk of involuntary actuation.
3. It is essential to ensure that all control system connections meet applicable safety
standards.
4. Fluctuations or variations in the mains supply voltage should not exceed the
tolerance stated thresholds.
for lighting CONNECTION DETAILS:
To connect Astro to PC using Serial or USB port: Astro has TTL Serial Port.
Use TTL to RS232 cable [GFDNN2S] or USB cable [GFDNN1] for communication
between Astro & PC.
To connect Astro in RS485 network: Use standard isolated RS232 to RS485
2W/4W converter with Automatic flow control to connect in RS485 network. Connect
TTL to RS232 cable [GFDNN2S] to the Astro.
250mA
R Y B N
110 - 240 V AC [ 3Ph 4 Wire ]
Ph - N
50 / 60 Hz
Z4
DEL ALT
Z1
Z3
ESC OK
Z2
Astro
OUTPUT
3 X RELAY / 8A
Q1 Q2 Q3
B
R Y
Ph Ph
Ph
MR MY MR
1. MR:- Coil of Contactor 1
2. MY:- Coil of Contactor 2
3. MB:- Coil of Contactor 3
damage due to extreme voltage
Ø4.2
INSERT SCREW DRIVER
WITHDRAW CLIPS
TO RELEASE CLIP
FULLY WHEN
SURFACE MOUNTING
Three Phase Astro with Communication Cable:
Cable can be used to monitor channels or diagnostic
status through PC side software or Modbus.
N
B
Ph
Supply
3 -Phase Y
Ph
4 wire
240 VAC
R
50/60 Hz
Ph
250mA
R Y B N
110 - 240 V AC [ 3Ph 4 Wire ]
Ph - N
50 / 60 Hz
Astro
Q1
Q2
R Y B
Ph Ph Ph
MR
MY
TO GSM
SERIAL
INTERFACE
CABLE
GFDNN2S
RS 232
SERIAL CABLE
TO
SERIAL
PORT
MANUAL OVERRIDE MODES:
By default and on the field, the device is generally in
"AUTO" mode shown on the screen as "Qn-A". But, for
the purpose of maintenance or because of extremely
bad weather conditions for forceful switching, user has
an option of four different override modes for output
channel switching.
1. Manual OFF (T2DDT0): This override can be used
to turn off the output channel forcefully. Once this
override is selected, the output remains in OFF
condition forever unless user selects another mode.
This is valid even EUT is powered OFF and ON. The
manual mode always overrides other operating mode.
Shown on screen as "Qn-M x".
2. Manual ON (T2DDT0): This override can be used
to turn on the output channel forcefully. Once this
override is selected the output remains in ON condition
forever unless user selects another mode. This is valid
even EUT is powered OFF and ON. The manual mode
always overrides other operating mode. Shown on
screen as "Qn-M√".
3. Auto OFF (T2DDT0, T3DDT0): Used to turn OFF
the output channel forcefully. But the OFF condition will
not be forever. The device will automatically change the
operating mode from Auto OFF to AUTO on next auto
event. For example, user selects Auto OFF at 4:00 A.M.
and device has OFF event at 7:00 A.M. The EUT will
switch OFF from 4:00 A.M. to 7:00 A.M.
automatically shift to AUTO mode at 7:00 A.M. which is
next auto event and remain OFF till next ON event.
Shown on screen as "Q1-Ax".
4. Auto ON (T2DDT0, T3DDT0): Used to turn ON the
output channel forcefully. The ON condition will not be
forever. The EUT will change the operating mode to
AUTO on next auto event. For example, user selects
Auto ON at 4:00 P.M. and EUT has OFF event at 6:00
P.M. The EUT will remain ON from 4:00 P.M. to 6:00
P.M. and become OFF at 6:00 P.M because device will
automatically shift to AUTO mode at 6:00 P.M. which is
next auto event. Shown on screen as "Q1-A√".
Changing Operating Mode: To override the operating
mode of output channel Q1 - Press Z1 [Q2 –Press Z2,
Q3-Press Z3] key on the RUN screen. On every Z1 key
press event, the operating mode changes.
Z4
DEL ALT
Z1 Z3
ESC Z2 OK
OUTPUT
3 X RELAY / 8A
Q3
MB
PC
Device will
TLL001-02
