Optika Modular Series Instruction Manual page 4

5. Assembly of optional accessories (CL-11.1 or CL-12)

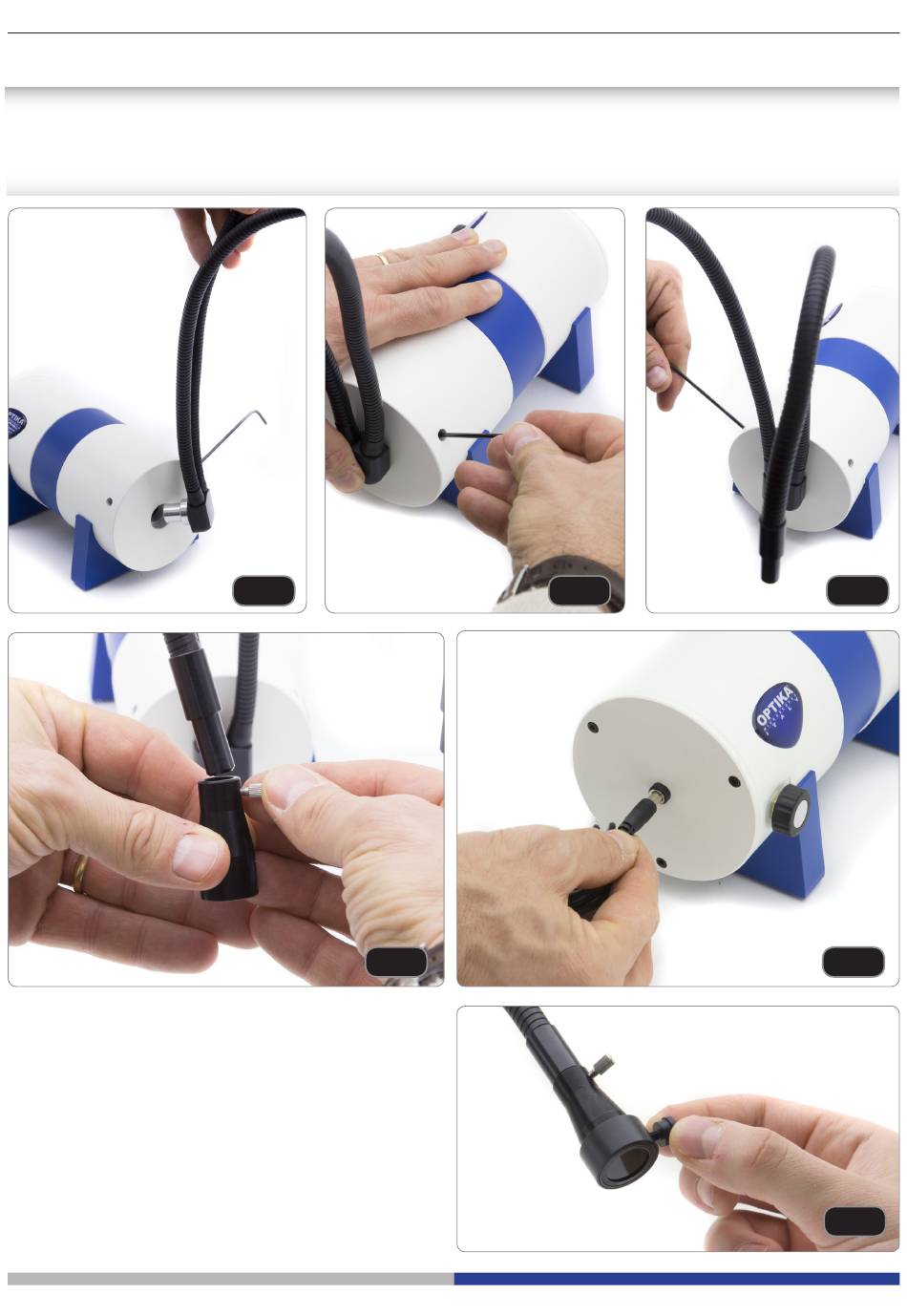

1. Insert the light guide connector in the light exit of the illuminator and lock the screws (Fig. 1-3)
2. Insert the focus lens on top of the light guide arms (Fig. 4)
3. Connect the power supply. (Fig. 5)
4. Connecting polarizing filters (Fig. 6)
Insert the polarizing filter on top of the focussing lens
and lock the fixing screw.
Adjust the polarizing effect rotating each filter
according to the analyzer installed on the microscope
head.
Fig.1
Fig.4
Fig.2
Page 4
Fig.3
Fig.5
Fig.6
