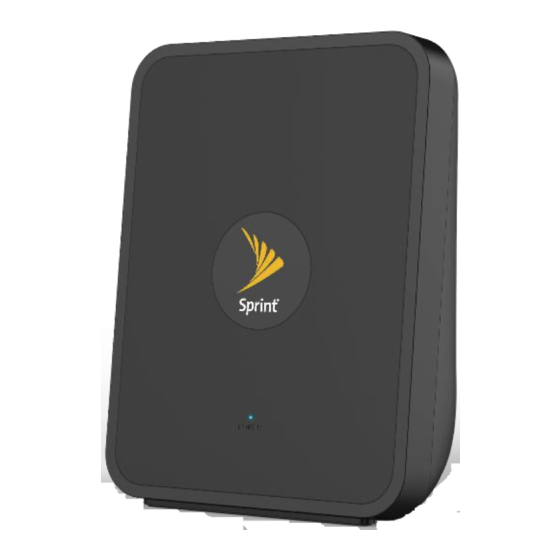

Sprint AIRAVE 4 LTE Quick Start Manual

AIRAVE 4 LTE
Setup Instructions
Check that all these components are in the box:
AIRAVE 4 LTE
Place the Unit

In an elevated location, such as the top of a shelf or tall cabinet

Within 10 to 20 feet of a clear view of the sky

Within reach of your broadband modem or router

Within reach of an electrical outlet

Turn the unit so the front faces into the room and carefully move all cables.
NOTE: There is room for the cables to come from the sides of the unit once it is
facing forward.

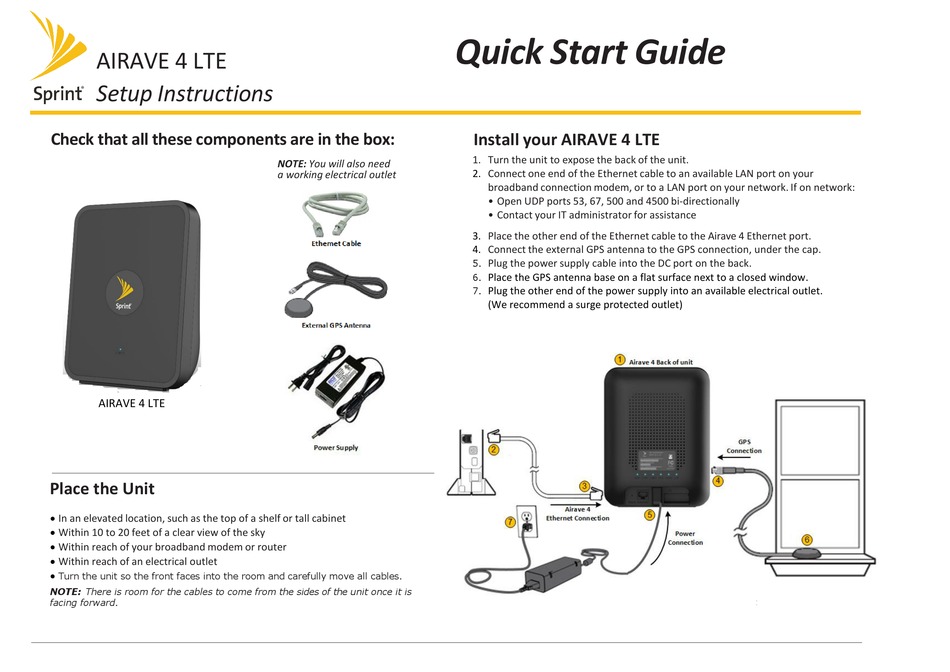

Quick Start Guide
NOTE: You will also need
a working electrical outlet
Install your AIRAVE 4 LTE
1. Turn the unit to expose the back of the unit.
2. Connect one end of the Ethernet cable to an available LAN port on your
broadband connection modem, or to a LAN port on your network. If on network:
• Open UDP ports 53, 67, 500 and 4500 bi-directionally
• Contact your IT administrator for assistance
3. Place the other end of the Ethernet cable to the Airave 4 Ethernet port.
4. Connect the external GPS antenna to the GPS connection, under the cap.
5.
Plug the power supply cable into the DC port on the back.
6.
Place the GPS antenna base on a flat surface next to a closed window.
7. Plug the other end of the power supply into an available electrical outlet.
(We recommend a surge protected outlet)
