WWW.PEAKWORKS.CA
Self-Retracting
Lifelines
Certifi ed to:
CSA Z259.2.2-1998
ANSI Z359.14-2014
SRL-53303-60,
SRL-53303-79,
SRL-53303-96,
SRL-53303-138,
SRL-53303-197
READ CAREFULLY
BEFORE USE
!
READ CAREFULLLY
BEFORE USE
USA:
Canada:
Sellstrom Manufacturing Co.,
SureWerx, 49 Schooner St.,
Schaumburg, IL 60173
Coquitlam, BC V3K 0B3
surewerx.com
sellstrom.com
Made in Germany
Fabriqué en Allemagne
Hecho en Alemania
A / Une / Una
Brand / Marque / Marca
M15-PW-V84523012-5534108
surewerx.c
3/2015
Advertisement
Related Manuals for Surewerx PeakWorks SRL-53303-60
Summary of Contents for Surewerx PeakWorks SRL-53303-60
- Page 1 READ CAREFULLLY BEFORE USE A / Une / Una surewerx.c Brand / Marque / Marca USA: Canada: Sellstrom Manufacturing Co., SureWerx, 49 Schooner St., Made in Germany Schaumburg, IL 60173 Coquitlam, BC V3K 0B3 Fabriqué en Allemagne 3/2015 surewerx.com sellstrom.com...
- Page 2 Prüfbuch_Peakworks_HRA_GB+FR_07112016...
-
Page 3: System Compatibility
WWW.PEAKWORKS.CA INTRODUCTION This manual contains the Manufacturer’s Instructions as required by CSA Z259.2 and ANSI Z 359.1. It should be used as part of the fall protection training program required by law. All PeakWorks’ products are designed and engineered to meet or exceed applicable CSA and ANSI standards along with labour ministry requirements. - Page 4 WWW.PEAKWORKS.CA FALL CLEARANCE Fall Clearance is the distance required to safely arrest the user’s fall. It is the distance from the anchorage to the ground. A Fall Clearance Calculation must be done anytime this or any other fall protection equipment is used. Step 1: Calculate Free Fall (FF) Step 2: Determine how much the connecting device deploys (DD) Step 3: Determine the stretch of the harness (Xh)

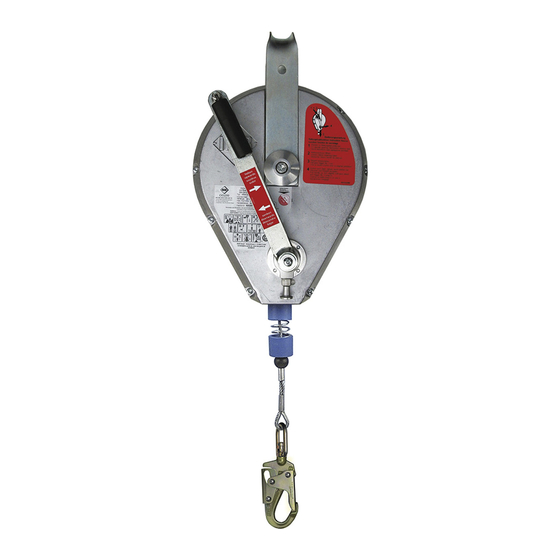

- Page 5 WWW.PEAKWORKS.CA SRL OVERVIEW All PeakWorks’ SRLs have been designed and engineered to meet or exceed all applicable standards and Ministry of Labour requirements. This PeakWorks Self-Retracting Lifeline is intended for use as a Fall Arrest Block or Fall Recovery Block. It is not intended for use with work positioning, man-riding, goods lifting or moving/lifting materials.
- Page 6 WWW.PEAKWORKS.CA SRL GENERAL OPERATION The mechanism in this device is activated by centrifugal force acting on the brakes. This action is produced by the inertia of a fall rapidly spinning the internal drum which in turn causes the brakes to lock and arrest the fall. Slow reeling of the line will not activate the brake.
-
Page 7: Pre-Use Inspection
WWW.PEAKWORKS.CA PRE-USE INSPECTION If the Self-Retracting Lifeline is known to have arrested a fall it must be removed from service immediately and returned for inspection and servicing. Before each use check (a) that the brake operates correctly (b) that the SRL is securely anchored level with or above the user (NEVER below) (c) that all components to be used in conjunction with this device are compatible and in good condition (d) avoid anchoring the device in such a position that could result in a ‘pendulum/swing... - Page 8 WWW.PEAKWORKS.CA 3. The recovery mechanism has only been approved for recovery purposes, not for lifting and lowering loads. 4. Only safety harnesses in accordance with EN 361, EN 361/1497, CSAZ259.2.2 type A or D, ANSI/ ASSE Z359.1-2007 are permitted for use with the fall arrest block with recovery mechanism (other harnesses are not permitted) (Fig.
-
Page 9: Service And Maintenance
WWW.PEAKWORKS.CA 20. Fall arrest blocks with recovery mechanisms must be protected from the effects of welding flames and sparks, fire, acids, lyes, solvents and similar agents. 21. No modifications may be made on the device. Note: Fall arrest blocks with recovery mechanism may only be used by persons who are appropriately trained or otherwise skilled. Users must be free from health impairments (alcohol, drug, medication or cardiovascular problems). 23. The service life of the fall arrest block with recovery mechanism must be determined in the yearly inspection;... - Page 10 WWW.PEAKWORKS.CA HRA EN/CSA Typenschild LABELING OF THE FALL ARREST BLOCK WITH RECOVERY MECHANISM For SRL: SRL-53303-60, SRL-53303-79, SRL-53303-96, SRL-53303-138, SRL-53303-197 Next Revision Nominal Lifting Capacity Cable Length Product Number nächste Revision Supervising Body next revision Part #/Réf.de pièce: SRL-53303-60 prochaine révision Lifeline length/ longueur de câble: 60 ft Read the Typ/type: 3/16 In steel/acier: 4.8 mm...
- Page 11 WWW.PEAKWORKS.CA FUNCTION DESCRIPTION FOR SELF-RETRACTING LIFELINES WITH RESCUE LIFTING DEVICE THROUGH CRANK MECHANISM Rescue Application: Required Operations: 1. Open the sealed Velcro lock, see figure 1. 2. Unfold the crank handle, see figure 1. 3. Pull out the locking pin with pear handle (see figure 2), (action 1), until the crank handle axis (action 2) pops out audibly and visibly (figure 3). 4. Rotate the crank handle back and forth until the gear has engaged.
-
Page 12: Inspection Log
WWW.PEAKWORKS.CA INSPECTION LOG INSPECTION CORRECTIVE MAINTENANCE INSPECTION RESULTS DATE ACTION PERFORMED CONDUCTED BY...
