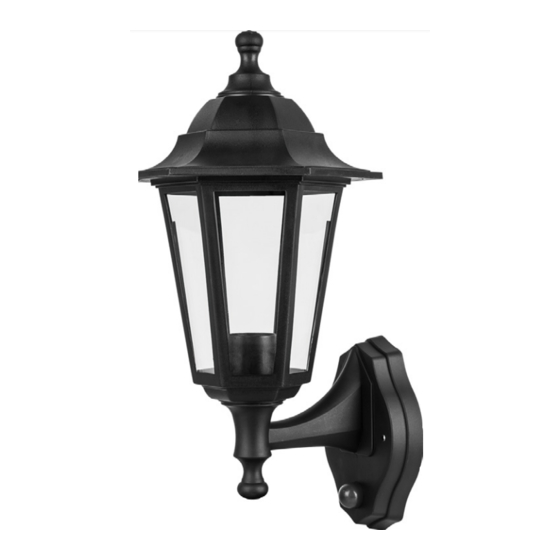

LED LANTERN WITH PIR SENSOR

Please read these instructions carefully before use and retain for future reference.

IMPORTANT SAFETY INFORMATION

•

When using electrical appliances basic safety precautions should always be

followed.

•

Check that the voltage indicated on the rating plate corresponds with that of the

local network before connecting the appliance to the mains power supply.

Safety Information for Installation and Operation

•

Avoid excessive force when installing.

•

Always install on a surface that can support the weight of the fixture.

Model: PEL01345 and PEL01348

Table of Contents

Do you have a question about the PEL01345 and is the answer not in the manual?

Page 1 LED LANTERN WITH PIR SENSOR Model: PEL01345 and PEL01348 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • When using electrical appliances basic safety precautions should always be followed. • Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.
Page 2 INSTALLATION • Turn off or isolate the mains supply. • Remove the two domed nuts on the mounting plate and remove the wall mount plate. • The lantern diffuser may also be removed from the bracket if required to aid visibility when making the wiring connections. •...
Page 3 • Offer up the bracket unit so that the mains supply wiring can be connected to the terminal block as follows: Connect the positive supply wire (brown or red) to the terminal marked L. Connect the neutral supply wire (blue or black) to the terminal marked N.
Page 4 OPERATION • When the lamp is powered on it will light when motion is detected only during low light levels. CLEANING AND MAINTENANCE • Clean only with a damp cloth with a little liquid detergent. Do not use any chemicals, abrasives or solvents that may damage the product. SPECIFICATIONS Voltage 220-240V~50Hz...
