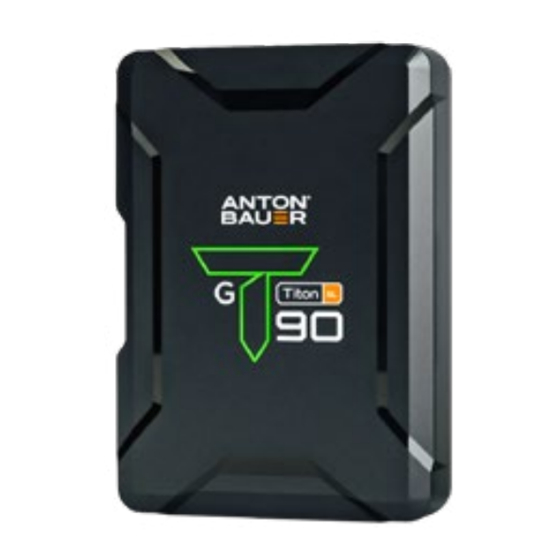

- Page 1 USER GUIDE Lithium-ion Battery 8675-0115 - Titon SL 90 Gold Mount 8675-0157 - Titon SL 150 Gold Mount 8675-0116 - Titon SL 90 V-Mount 8675-0158 - Titon SL 150 V-Mount...
- Page 2 Original Instructions: English All rights reserved throughout the world. No part of this document may be stored in a retrieval system, transmitted, copied or reproduced in any way, including, but not limited to, photocopy, photograph, magnetic or other record without the prior agreement and permission in writing of the Vitec Group plc.
-
Page 3: Table Of Contents
Contents Safety........... 4 Introduction......... .. 7 About This User Guide......7 Components and Connections .. -
Page 4: Safety
The presence of electricity near water can be dangerous. The Anton/Bauer Titon SL Series Lithium-ion battery is specifically designed and op- timized to be charged with current Anton/Bauer chargers. The Titon battery Series WARNING! When cleaning the product, use a soft damp are compatible with Anton/Bauer chargers and have been tested on industry recog- cloth only. - Page 5 WARNING! These electronic devices can be damaged if Contact Anton/Bauer Customer Support Group with additional inquires the battery is subject to abuse or damage. Do not use a as to maintenance.
- Page 6 Lithium-Ion battery transport. Since the interpretation and application of regulations may vary with the aviation company, the transport of the Anton/Bauer Titon Series battery may be disallowed even when the conditions described above are satisfied. Anton/Bauer therefore strongly recommends that you consult with your transportation...
-
Page 7: Introduction
About This User Guide Introduction The Anton/Bauer LP and Performance chargers contain a proprietary IP that increases run-time and lengthens life cycle of batteries. Titon SL uses Anton/Bauer’s balanced, high-quality cells that deliver a long performance life. This user guide covers the safe and reliable operation of the Titon SL Series batteries. -
Page 8: Components And Connections
Components and Connections Titon Series LCD Every Titon Series battery has an easy to read LCD which conveniently reports battery information in one of two ways. When the battery is sitting idle (no load is applied) the LCD will When the battery is powering an item (a load is applied), the LCD will show remaining capacity as percentage of full. - Page 9 Components and Connections The Titon Series features an Integrated PowerTap® and USB ports on the side of the battery to power camera accessories. The PowerTap® allows for convenient deployment of up to 10 Amps of DC current for various parallel devices. The USB port supplies a regulated 5 volts and maximum 2 Amps current and may be used for charging mobile devices.
-
Page 10: Technical Specifications
Technical Specifications Physical Data Titon SL 90 Gold Mount Titon SL 90 V Mount Titon SL 150 Gold Mount Titon SL 150 V Mount 95Wh Nominal 95Wh Nominal 143Wh Nominal 143Wh Nominal Capacity 5.63 inches 5.63 inches 5.15 inches 5.1 inches Height (14.29 cm) (14.29 cm) -
Page 12: After Sales Support
After Sales Support At Vitec Production Solutions we take great pride in the quality of our products and we also recognize that your experience with our products will be even more positive and productive with strong, effective support to back them up. Vitec Production Solutions Service Centers are there to provide technical support for customers and partners, via telephone or email. -
Page 13: General Notices
All changes and/or modifications not expressly equipment generates, uses, and can radiate radio frequency and, if not approved by Anton/Bauer could void the users’ warranty and authority to installed and used in accordance with the instruction manual, may cause operate this equipment. -
Page 14: Warranty
Shelton, Connecticut 06484. If you (the purchaser of the Product from applicable. You are responsible for all shipping and handling charges to Anton/Bauer, or the person for whom the Product was purchased, if it and from authorized facility. was a gift) have any questions regarding Product applications, Product... - Page 15 Use of unauthorized equipment in conjunction with Anton/Bauer products constitutes misuse under our warranties and may limit or void those warranties. Anton/Bauer does not authorize, condone, recommend, or otherwise assume any liability or responsibility resulting from the use of any battery,...
- Page 16 Publication No.7595-0472 V0.1...
