Summary of Contents for Siborg LCR-Reader
-
Page 2: Safety Notices
If replacing the battery, dispose of in battery recycling. Never dispose of batteries in household waste or in an incinerator Do not use damaged cables or chargers. Do not charge in damp environments. Damage to the device, property or self may occur. pg. 1 ©Copyright Siborg Systems Inc. -
Page 3: Table Of Contents
2. Overview Product Overview Features and Functions Navigation Charging the Battery Display General Display Overview Display Indicators Measurement Units Care and Maintenance 3. Making Measurements 4. Specifications Technical Specifications Measurement Ranges Physical Specifications 5. Warranty pg. 2 ©Copyright Siborg Systems Inc. -
Page 4: Overview

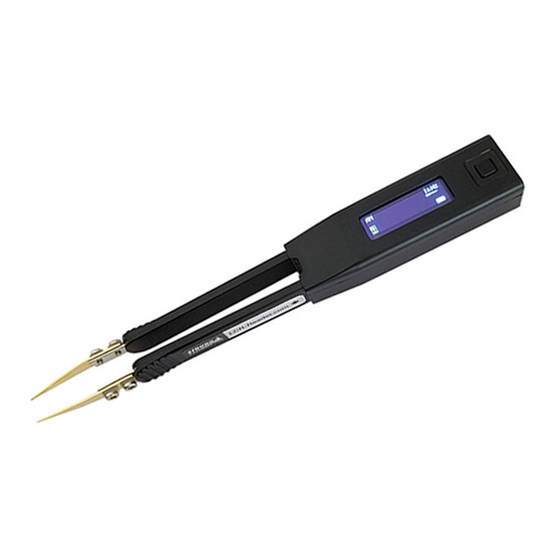

Overview Product Overview The LCR-Reader is a 1 oz. weight LCR-meter that is ultimately portable while still offering a high basic accuracy of 1%. It is an indispensable tool for testing and troubleshooting Surface Mount Technology in all aspects from manufacturing, lab-work, repair and maintenance, etc. -
Page 5: General Display Overview
The LCR-Reader is powered by a Li-Ion battery and is rechargeable via a micro-USB. To charge the battery, simply plug the device into a power source like a computer or USB-wall adapter. The adapter should have an output voltage of 5V+/- 5% with an output current of 100 mA or greater. -
Page 6: Care And Maintenance
Use damp clothes with little to no extra moisture. Be sure that all parts are dry before storage. The LCR-Reader may need cleaning or maintenance after an extended period of time. To clean the device, wipe down with a damp, gentle cloth. Be sure to not have extra moisture left on the device. -
Page 7: Making Measurements
Making Measurements LCR-Reader is capable of fully automatic measurements, with the ability to select manual test modes for specific tasks. When a component is in contact, the device will automatically determine the type of component while in ‘Automatic Mode’; all measurement values, including any secondary value, are automatically displayed. -
Page 8: Specifications
EN 61000-4-3 Radiated Immunity IEC61000-4-8 Magnetic Field Immunity FCC15/EN 55011/ICES-003 – Class A, Radiated Emissions FCC15 Class A Conducted Emissions Calibration Cycle: 1 year Note: Battery life may vary by use, configuration and other factors. pg. 7 ©Copyright Siborg Systems Inc. -
Page 9: Warranty
Such excluded damages shall include, but are not limited to: costs of removal and installation, losses sustained as the result of injury to any person, or damage to property. pg. 8 ©Copyright Siborg Systems Inc.
