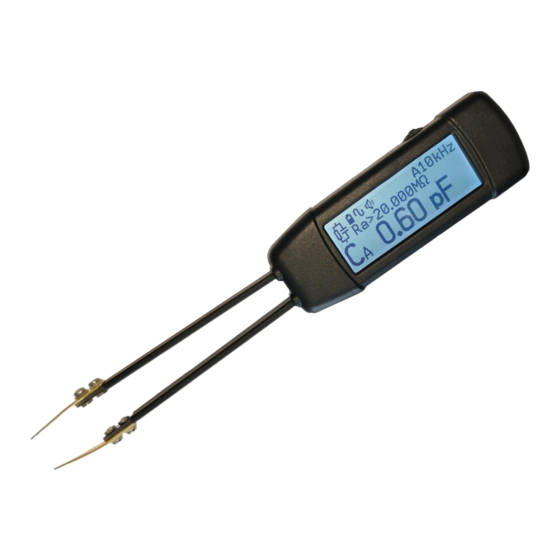

Siborg LCR-Reader-MP User Manual

Multi-purpose tweezer-meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LCR-Reader-MP and is the answer not in the manual?

Questions and answers

Related Manuals for Siborg LCR-Reader-MP

Summary of Contents for Siborg LCR-Reader-MP

  • Page 2: Table Of Contents

    Primary Parameter ........................ 11 7.2.2 Secondary Parameter ......................12 7.2.3 Test Frequency ........................12 7.2.4 Test Signal Level ........................12 7.2.5 Period ............................ 12 7.2.6 SER/PAR Mode ........................12 7.2.7 Sound ............................ 12 7.2.8 C-Voltage ..........................12 LCR-Reader-MP Manual Siborg Systems Inc.
  • Page 3 If there are no initial zero readings on the screen ..............19 Technical Support ........................19 Maintenance ..........................19 10.1 Care of the surface ........................19 10.2 Repairs ............................19 Storage Conditions ......................... 19 Transportation ..........................19 Warranty ............................20 LCR-Reader-MP Manual Siborg Systems Inc.
  • Page 4 DC Capacitance Measurement ..................23 14.4.6 Inductance ........................23 14.4.7 DC Voltage ........................24 14.4.8 AC Voltage ......................... 24 14.4.9 LF DDS Signal Generator ....................24 14.5 Supplement A ..........................25 14.6 Supplement D ..........................25 LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 5: Device Use

    Cs - Capacitance in Series Connection Xs - Reactance in Series connection Rp - Resistance in Parallel connection Lp - Inductance in Parallel Connection Cp - Capacitance in Parallel Connection Xp - Reactance in Parallel Connection LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 6: Principle Of Operation

    Impedance in series circuits Z = Rs + iXs and in parallel circuits Z = 1/(1/Rp + 1/iXp) where Xs (Xp) <0 if the reactance is capacitive and at Xs (Xp) >0 the reactance is Inductive. 4.1 Formulas to Determine the Parameters: Electrical capacitance C = 1/(2πf|Xs|) where f is the test frequency. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 7: Safety Measures And General Instructions

    10. Do not touch non-insulated test lead surfaces during measurements. Keep fingers on the insulated surfaces of the handles. 11. Replacement of the battery must be carried out by a specialist. Batteries must be recycled or disposed of separately from regular household waste. Do not burn the battery. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 8: Device Controls

    Charge the battery by connecting it via a micro-USB cable to a USB DC voltage source of 5V +/- 5%. The device’s indicator light will show when the device is charging and will turn off when the charging is complete. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 9: Main And System Menu

    To set the default operating mode (R-L-C-D, RDC+LED, Voltage, etc.), press and hold the jog-wheel for two beeps. This mode is then stored in the device’s memory and will be activated when the device is powered on. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 10: Modes Of Operation

    100 kHz. In this case the frequency of the test signal is not shown on the screen. For ESR based rejection of electrolytic capacitors two tables are used, one for standard aluminum electrolytic capacitors and the other for Low ESR capacitors. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 11: Quick Controls

    When the device is set to Auto-frequency the device automatically calibrates at 100Hz, 1 kHz, 10kHz, and 100kHz. To eliminate the offset, turn the jog-wheel clockwise, hold for 2 beeps and release. When measuring small capacitances less than 100 pF, use LCR-Reader Offset Calibration Board included in the package. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 12: R-L-C-D Mode Menu

    Primary Parameter In Auto mode the type of measured component is determined automatically: R: Resistor, L: Inductance, C: Capacitor, D: Diode. Measurement mode can also be set manually to R, L, C, Z as the impedance. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 13: Secondary Parameter

    The device will only reset when a new component is measured or the test probes are shorted. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 14: Large Cap

    Capacitors larger than 40 mF up to 680 mF. To speed up the settling of the readings, short the capacitor leads for 2-3 seconds before the measurements. Counter clockwise for 1 beep again to return to the normal Large Cap mode. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 15: Rdc+Led Mode

    • Press and hold for 1 beep to save the resistance value (shunt) in the device memory for the current measurements. Read below about the current measurement in the Voltage mode section. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 16: The Voltage Mode

    • Clockwise for 2 beeps to calibrate with short probes to eliminate the offset. The switch must be in position 1 in order to do the calibration (see Section 6.3 Extended Voltage Range Switch). LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 17: Transient Voltage Waveforms (Oscilloscope Mode)

    Clockwise for 1 beep to open menu to select the desired mode. When the mode is selected, hold for 2 beeps to make the mode default. 7.7.2 Frequency, Period control • Counter-clockwise for 1 beep to change the measurement time cyclically 0.25s-0.5s-1s-2s. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 18: Signal Generator Mode

    It is recommended to use LCR-Reader Kelvin Probe Connector to simplify the device operation in this mode. 7.8.1 Controls • Clockwise for 1 beep to select the item to change. • Counter-clockwise for 1 beep to increase the selected parameter. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 19: Default Settings

    All offsets are reset to zero 9 Device Troubleshooting If the device does not turn on a. Push the joystick and hold it for 1 beep, then release it. b. Charge the battery. c. Contact the manufacturer for repair. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 20: If There Are No Initial Zero Readings On The Screen

    • Recharge the built-in battery once every 6 months. Transportation All modes of transportation at ambient temperatures from -40 ° C to + 50 ° С The device must be protected against precipitation and dust. LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 21: Warranty

    Frequency 25 Hz – 100 kHz Measuring Time 0.25 s, 0.5 s, 1s, 2s Maximum Resolution 0.0001 Hz Sensitivity 0.25 V (10 mV*) Error ±(0.005%+5) Hz Input Impedance 1 kOhm or 10 MOhms** Signal Generator LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 22: Fcc Complience

    0.1Vrms 1%+5 0.5%+5 1%+5 2%+5 Series 0.65 Vrms 0.5%+2 0.2%+2 0.2%+2 0.5%+2 10кΩ 0.001кΩ 0.1Vrms 1%+5 0.5%+5 1%+5 1%+5 Series, Parallel 0.65 Vrms 0.5%+2 0.2%+2 0.2%+2 0.5%+2 100кΩ 0.01кΩ 0.1Vrms 1%+5 0.5%+5 1%+5 1%+5 Parallel LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 23: Dc Resistance

    0.5%+3 0.5%+3 10 μF 0.001 μF 0.1Vrms 2%+5 2%+5 3%+5 0.65 Vrms 3%+3 0.5%+2 0.3%+2 0.3%+2 3 %+5 3 %+5 100 μF 0.01 μF 0.1Vrms 5%+5 2%+5 3%+5 0.65 Vrms 2%+2 0.5%+2 0.3%+2 3 %+5 LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 24: Dc Capacitance Measurement

    0.1 mH 0.1Vrms 2%+5 2%+5 2%+5 0.65 Vrms 0.5%+2 0.5%+2 0.5%+2 3%+5 3%+5 10 H 1 mH 0.1Vrms 2%+5 2%+5 0.65 Vrms 0.5%+2 0.5%+2 2%+3 100 H 0.01 H 0.1Vrms 5%+5 0.65 Vrms 1%+3 2%+3 LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 25: Dc Voltage

    ±0.6 V  The rise time of the rectangular signal Typical 5 Maximum sampling frequency 1.5 MHz Accuracy Better than 0.02% Output Impedance 1 kOhm We reserve the right to adjust specifications without prior notice LCR-Reader-MP Manual Siborg Systems Inc.

  • Page 26: Supplement A

    ESR rejection table for Low ESR capacitors stored in the device memory Capacity in Volts F 1.33 1.25 0.73 0.68 0.67 0.64 0.56 0.32 0.57 0.54 0.51 0.45 0.25 0.60 0.48 0.37 0.35 0.33 0.29 0.16 LCR-Reader-MP Manual Siborg Systems Inc.
  • Page 27 0.074 1000 0.066 0.063 0.060 0.057 0.054 0.048 2200 0.038 0.036 0.034 0.032 0.031 0.027 3300 0.032 0.030 0.029 0.027 0.026 4700 0.027 0.025 0.024 0.023 6800 0.024 0.023 0.022 10000 0.021 0.020 15000 0.020 LCR-Reader-MP Manual Siborg Systems Inc.
