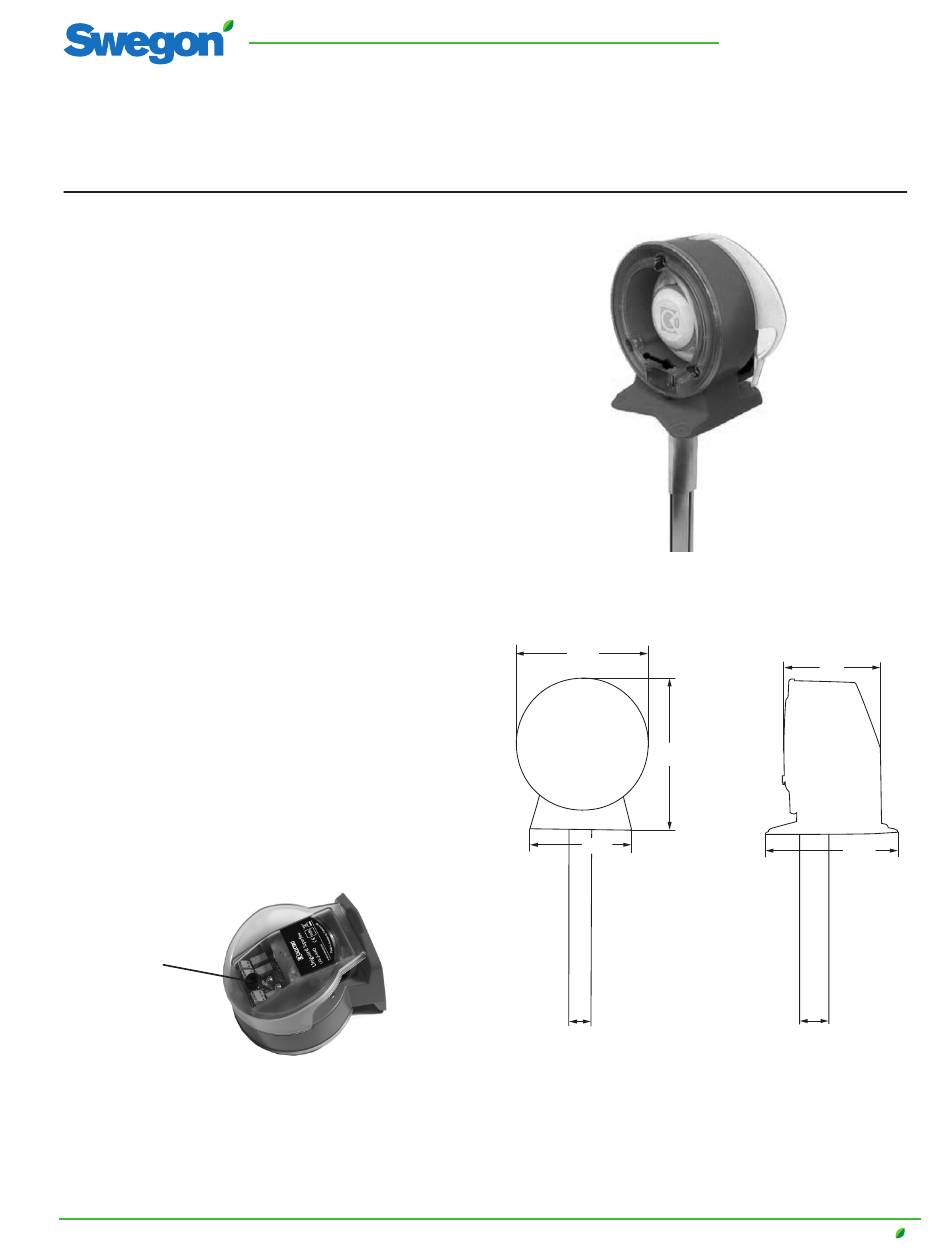

Installation instructions for the optical detector with built-in
control unit, TBLZ-1-72-a
GOLD/COMPACT
1. General
The TBLZ-1-72-a optical smoke detector with built-in control unit
is used for measuring smoke gases in ventilation ducts.
It consists of an optical detector mounted in an adapter system
in which both the tube and enclosure are designed for optimum
airflow through the detector. The system meets all fire safety
requirements at air speeds between 0.2m/s and 20m/s. The smoke
detector also has a built-in control unit for controlling fans, fire
and combustion gas dampers.
Accessories
Use an installation bracket when installing on circular or insulated
ducts.
2. Function
A green LED is lit on the control unit's circuit card when the unit is
operating in the normal mode. All the relays are activated.
When combustion gas is detected, a red LED lights up on the
circuit card and detector.
If the smoke detector becomes dirty, it becomes more sensitive
and slowly switches to alarm mode. To prevent false alarms if dirty,
the detector is equipped with a service alarm (green LED on the
smoke detector and yellow LED on the circuit card of the control
unit). This indicates that the detector requires cleaning.
If a malfunction arises, the green LED will be off and no relays
will be activated. Example: If the smoke detector is removed or a
power failure occurs.
A tripped alarm can be reset on the rear side of the smoke detec-
tor. See illustration.
Reset button
3. Technical Data
Type of detector
Operating voltage 24 V AC/DC +/- 10%
Power consumption:
Operation
Ambient temperature
Atmospheric humidity
Enclosure class
Tested and passed To
We reserve the right to alter specifications.
Optical
About 165 mA
-10°C to +55°C
Max. 99% rH
IP54
VdS
Dimensions
Venturi tube length of 600 mm or 1500 mm.
150
180
146
27
(All dimensions are given in mm)
4. Maintenance
When the smoke detector becomes dirty, it becomes more
sensitive and may trigger the service alarm. This can be delayed by
vacuuming the detector once a year.
GB.TBLZ172.190411
85
154
35
www.swegon.com
1
