Installation Smoke Detector
ELQZ-2-428-2, GOLD
General
The ELQZ-2-428-2 smoke detector is used for measuring
any smoke present in ventilation ducts. It consists of an
ionising detector mounted in an adaptor system where
both the tube and enclosure are designed for optimum
airflow through the detector. The system meets all the
fire safety requirements for air velocities between 0.2 m/s
and 20 m/s. The smoke detector is used together with a
control unit (fitted inside an ELQA equipment cubicle or a
separate equipment cubicle for the smoke detection and
warning function) for controlling fans, fire and smoke
dampers.
Operation
If any smoke is detected, a red LED on the detector lights
up and the detector transmits an alarm signal to the con-
trol unit.
Any accumulation of impurities in the smoke detector will
make it more sensitive and gradually approach its alarm
condition. To avoid unnecessary alarms caused by fouling,
the detector is equipped with a service alarm (green LED).
When lit, this LED indicates that the detector ought to be
cleaned.
Tecnical details
Type of detector Ionising
Power supply
Power consumption:
In-operation
Service alarm
Smoke alarm
Permissible
ambient temperature
Permissible humidity
Inclosure Class
Weight
Accessories
The ELQZ-1-428-2-1 Mounting bracket should be used for
mounting the detector on a circular or insulated duct.
Maintenance
Whenever the smoke detector becomes fouled, it will be
more sensitive and may trip the service alarm. This situa-
tion can easily be delayed by vacuum cleaning the detec-
tor once a year.
Specifications are subject to alteration without notice.
24VDC (from control unit)
Max 0,04mA
~ 13mA
~ 48mA
-20°C to +50°C
Max 99% rH
IP54
800g

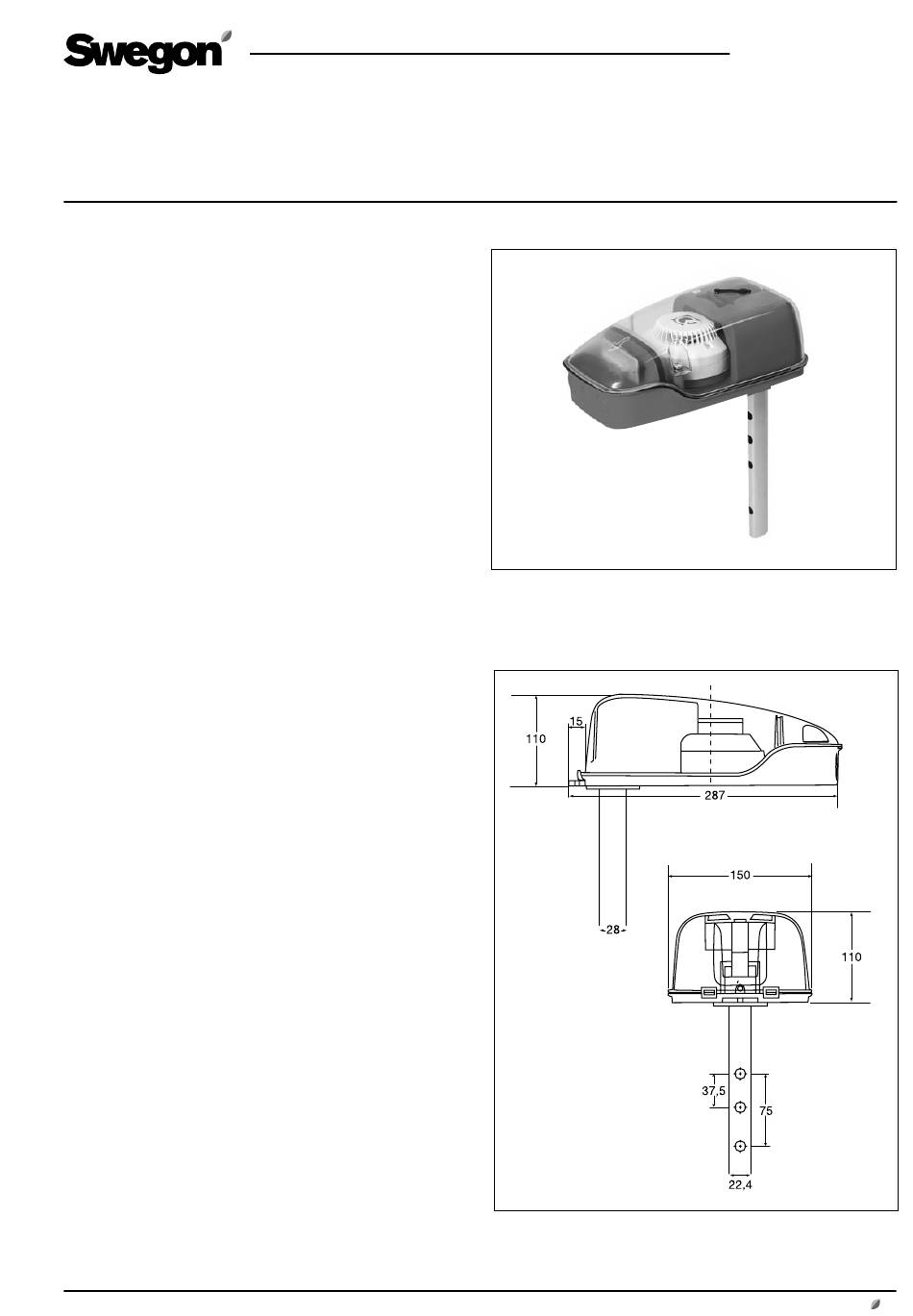

Dimensions
Venturi tube length 600 mm.
(All dimensions in mm)
GB.ELQZ428.050101
www.swegon.se
1
Advertisement
Summary of Contents for Swegon GOLD ELQZ-2-428-2
- Page 1 Whenever the smoke detector becomes fouled, it will be more sensitive and may trip the service alarm. This situa- tion can easily be delayed by vacuum cleaning the detec- tor once a year. (All dimensions in mm) www.swegon.se Specifications are subject to alteration without notice.
-
Page 2: Installation And Location
MIN 3xd h MIN 5xd h MIN 3xd h MIN 5xd h MIN 5xd h MIN 5xd h MIN 3xd h MIN 3xd h AIR HANDLING UNIT www.swegon.se Specifications are subject to alteration without notice. MIN 3xd h MIN 5xd h... - Page 3 flowing through the duct. • Mount the tube and the detector on the duct. • Secure the detector housing at the 3 points indicated by the arrows. www.swegon.se Specifications are subject to alteration without notice.
- Page 4 final resistor (2,2kΩ) in this detector. If several smoke detectors are to be connected to one control unit, wire the final resistor (2,2kΩ) in the last detector in the loop. Fit only one resistor per loop! www.swegon.se Specifications are subject to alteration without notice.
- Page 5 Fit the cover on the detector. Do not drill any holes in the plastic cover for fitting identification plates or the like. Doing so will cause leakage, which will seriously impair detector performance. www.swegon.se Specifications are subject to alteration without notice.
-
Page 6: Final Inspection
The smoke detector initiates an alarm when no smoke is present. • The smoke detector has been located where condensa- tion can form inside it, such as outdoors, in a cold attic, a kitchen or the like. www.swegon.se Specifications are subject to alteration without notice.
