Swegon TBLZ-1-49-a GOLD Installation

Smoke detector installation TBLZ-2-49-a
GOLD/COMPACT

1. General

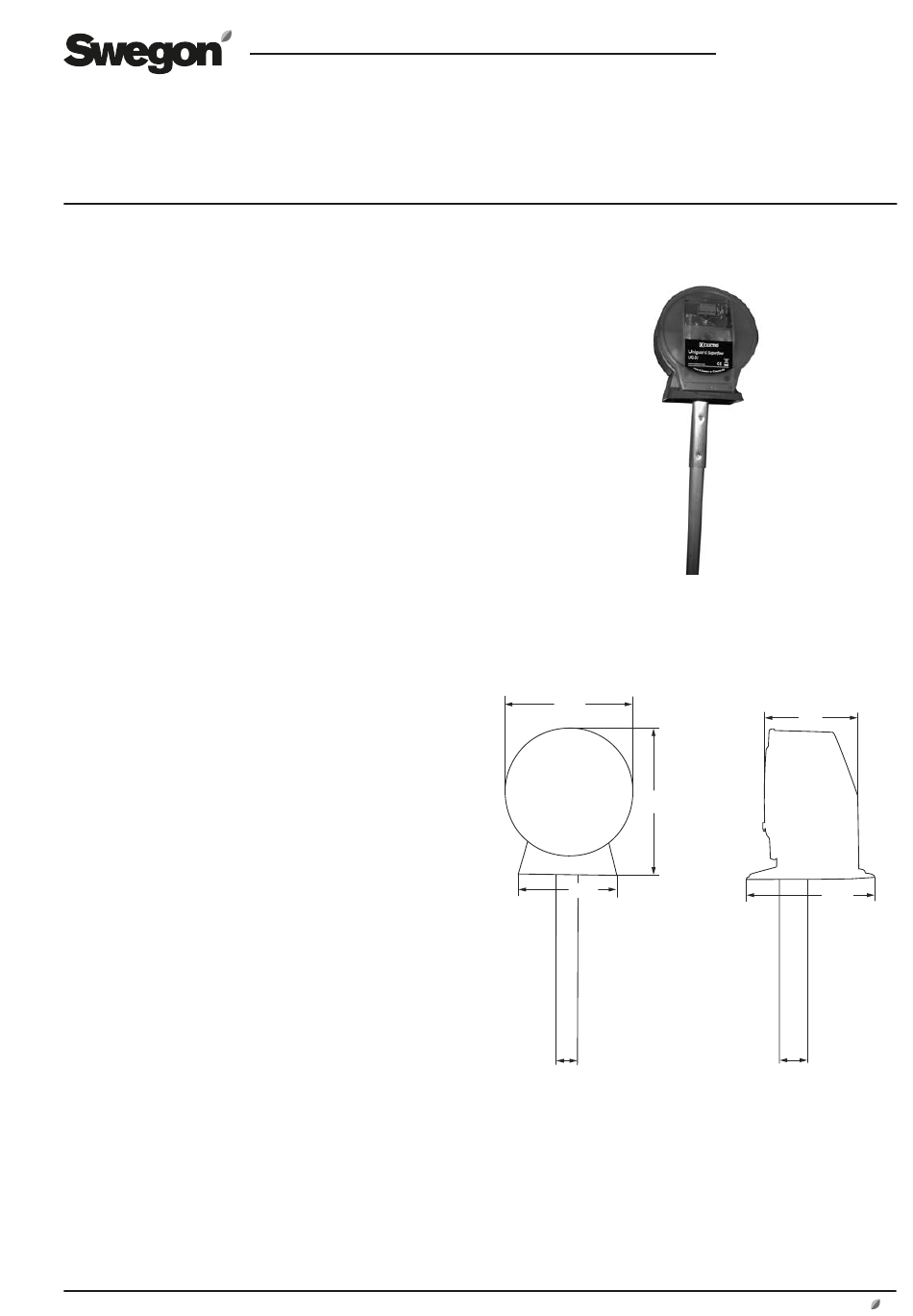

Smoke detector TBLZ-1-49-a is used to measure smoke
gases in ventilation ducts. It consists of an optical detector
mounted in an adapter system in which both the tube and
enclosure are designed for optimum airflow through the
detector. The system meets all fire safety requirements at
air speeds between 0.2m/s and 20m/s. The smoke detec-
tor is used together with a control unit (installed in equip-
ment cubicle ELQA or separate equipment cubicle for
smoke function) for controlling fans, smoke and combus-
tion gas dampers.
Accessories
Use an installation bracket when installing on circular or
insulated ducts.

2. Function

When combustion gas is detected the LED on the detector
lights red and the alarm signal is forwarded to the control
unit.
If the smoke detector becomes dirty, it becomes more sen-
sitive and switches to alarm mode more slowly. To prevent
false alarms if dirty, the detector is equipped with a service
alarm (green LED). This indicates that the detector requires
cleaning.

3. Technical Data

Detector type
Operating voltage
Power consumption:
In-operation
Service alarm
Combustion gas alarm
Ambient
temperature
Humidity
Degree of protection
Weight
We reserve the right to alter specifications without notice.
Optical
24VDC (from control unit)
Max 0.04mA
~ 13mA
~ 50mA
-20°C to +50°C
Max 99% rH
IP54
800g
Dimensions
Venturi tube length of 600 mm or 1500 mm.
150
180
146
27
(All dimensions are given in mm)

4. Maintenance

When the smoke detector becomes dirty, it becomes more
sensitive and may trigger the service alarm. This can be
delayed by vacuuming the detector once a year.
GB.TBLZ49.091201
85
154
35
