  • Page 1 Operating Instructions Outdoor Wi-Fi Socket Item No. 2181463...

  • Page 2: Intended Use

    1. Intended use This product is intended for switching and measuring the power consumption of mains-operated devices. Operation or programming is carried out via Wi-Fi using the “Sy- gonix RSL RS2W” application for mobile devices. Only connect to a standard household protective contact mains socket.

  • Page 3: Explanation Of Symbols

    2. Explanation of symbols The symbol with the lightning in a triangle indicates that there is a risk to your health, e.g. due to an elec- tric shock. The symbol with an exclamation mark in a triangle is used to highlight important information in these operating instructions.
  • Page 4 5. Application There are compatible Android and iOS apps available from their respective app stores. Look for the “Sygonix RSL RS2W” app and download it onto your smart device. An app instruction manual is available from the URL listed in chapter 6 “Up-to-date operating instructions”.

  • Page 5: Safety Instructions

    7. Safety instructions Read the operating instructions and safety infor- mation carefully. If you do not follow the safety information and information on proper handling in these operating instructions, we will assume no liability for any resulting personal injury or dam- age to property.

  • Page 6: Operating Location

    • Do not leave the packaging material lying around carelessly as it may be a danger to children. • Handle the product with care; it can be damaged by impacts, blows or falls even from a low height. • If you have any questions that are not answered in this man- ual, please contact our technical service or another specialist.
  • Page 7 c) Handling and use • Never plug in, unplug or operate the product when your hands are damp or wet. There is a risk of a life-threatening electric shock! The same applies for the load that is plugged into the socket of the product.

  • Page 8: Connected Devices

    d) Ingress protection rating (IP44) • This product has an IP44 ingress protection rating. This means it is “splash proof” and protected from objects greater than 1 millimeter in size and water spray from any direction. • This rating is only effective if: - The socket cover is closed.

  • Page 9: Operating Elements

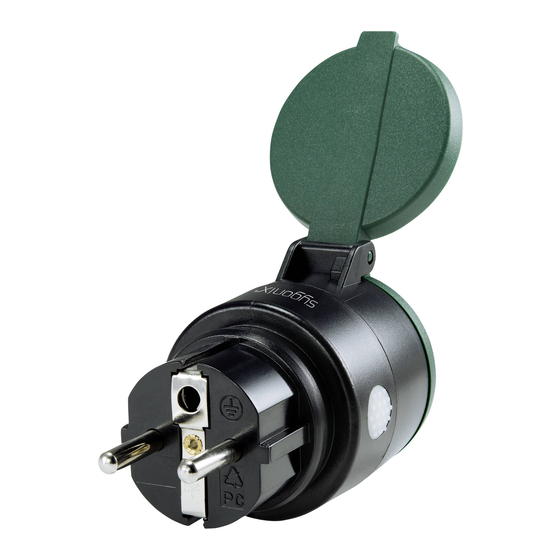

    8. Operating elements Socket cover Socket Power button Status indicator Plug 9. Connection Connect the plug (4) to a regular grounded mains socket (wall • socket). Plug a load into the socket (2). •...

  • Page 10: Operation

    10. Operation a) Power on / off Press the power button (3) to turn the socket on or off. Status indicator (3) on: Power to connected load. • • Status indicator off: No power to connected load. b) Connection mode When you connect the plug to a mains socket for the first time, the device will automatically enter App connection mode (status indicator flashes).

  • Page 11: Maintenance And Cleaning

    e) Reset product If the device is not functioning correctly or you cannot connect to Wi-Fi, you may need to perform a reset: • Disconnect the plug and wait 10 seconds. • Reconnect to the power supply. 11. Maintenance and cleaning •...

  • Page 12: Declaration Of Conformity (Doc)

    12. Declaration of Conformity (DOC) Conrad Electronic SE, Klaus-Conrad-Straße 1, D-92240 Hirschau hereby declares that this product conforms to the 2014/53/EU di- rective. Click on the following link to read the full text of the EU declaration of conformity: www.conrad.com/downloads Select a language by clicking on a flag symbol and en- ter the product order number in the search box.

  • Page 13: Technical Data

    14. Technical data Operating voltage ......230 V/AC 50 Hz Electrical load power rating ....max. 13 A / 3000 W Protection class ......IP44 Network ..........Wi-Fi 802.11 b/g/n, 2.4 GHz Transmission power......16 dBm (802.11b) 14 dBm (802.11g) 13 dBm (802.11n) Transmission frequency range ..2.412 – 2.472 GHz Transmission distance ....30 m (open area) Supported OS.
  • Page 14 This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com). All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
