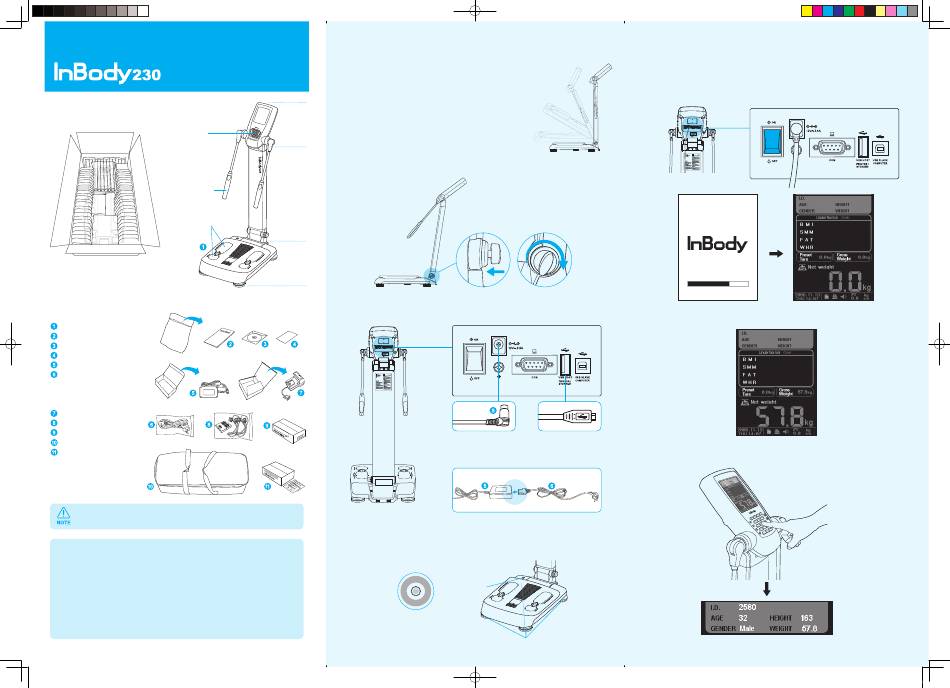

Biospace InBody230 Install Manual

BODY COMPOSITION ANALYZER
Install Manual
Input Buttons
C
Hand Electrode
B
Foot Electrode
A
Contents of the Box
Basic
InBody230
Install Manual 1EA A
User's Manual CD 1EA
Warranty
Adapter 1EA ( 12V, 3.5A )
Power Cable 1EA
B
Optional
Thermal printer
SD400 Set
Result Sheet
Carrying Bag
InBody Tissue
Please keep the packaging for future events of repacking InBody230 and sending
it for servicing or otherwise transporting InBody230 elsewhere.
1. If you use the InBody230 on a carpet, static electricity may cause serious damage to the
electronic components. If the InBody230 is to be installed on a carpet, use antistatic mats
CAUTION NOTE DANGER
below the InBody230. Use InBody tissue to wipe feet and hands before the measurement
starts.
2. Do not wipe the base and hand electrode with cleaning liquids. If cleaning liquids enter
into InBody230, it may cause corrosion or electric shock by short circuit. For cleaning of
the InBody230, please use InBody tissue, which also has antibacterial functionality.
3.Do not dismantle InBody230. Internal parts are not for customer use and may cause
electric shock. If InBody230 is dismantled, the warranty is void, and service costs will be
charged.
230매뉴얼_eng_E.indd 1
Installation
1. Raise the stand and lift the head and lower the arms.
Head
2. Push the knob shown above and turn it toward right to tighten the joint screw.
Stand
Base
<Side view of InBody230>
3. Plug the power adapter cable into the InBody230.
C
<Rear view of InBody230>
4. If the air bubble is not in the center of the level indicator, tighten or loosen
the leveling screws(4EA) on the foot plate to adjust the level of InBody230.
InBody230 must be leveled properly for accurate weight measurement.
< Leveled state >
<Printer Cable / Option>
* Make sure the power cord is firmly plugged in.
Level Indicator
Leveling Screws
Measurement
1. Turn on the InBody230 and keep the power on until the home screen
initializes. It will take 15 seconds. During the warming, do not touch
the base.
Power switch
<Rear view of InBody230>
2. Step on the foot plate and measure weight.
3. Enter your personal information and press "ENTER" button.
