BODY COMPOSITION ANALYZER
Installation Guide
Hand Electrode
Input Buttons
A
B
Foot Electrode
Included Items
InBody170
Joint Screw
Joint Cover
A
Cable Clips 2EA
User's Manual CD
Warranty
Install Manual
Power Cord
Adapter (12V, 3.4A)
B
Options
PT500
PT500 Cable
PT500 Cable gender
PT500 Bracket
PT500
Round-headed Bolt 2EA
Flat-headed Bolt 2EA
Please keep the packaging for future events of repacking InBody170 and sending
it for servicing or otherwise transporting InBody170 elsewhere.
1. If you use the InBody170 on a carpet, static electricity may cause serious damage to the
electronic components. If the InBody170 is to be installed on a carpet, use antistatic mats
ON
NOTE
DANGER
below the InBody170. Use InBody tissue to wipe feet and hands before the measurement
starts.
2. Do not wipe the base and hand electrode with cleaning liquids. If cleaning liquids enter
into InBody170, it may cause corrosion or electric shock by short circuit. For cleaning of
the InBody170, please use InBody tissue, which also has antibacterial functionality.
3. Do not place the InBody170 directly against a wall. The cables connected to InBody170
may get bent, resulting in communication faults or damage to the ports on the rear panel.
The measurement results may also be inaccurate if the base touches the nearest wall.
4. Do not dismantle the equipment. Internal parts are not for customer use and may cause
electric shock. If the equipment is dismantled, the warranty is void, and service costs
will be charged.

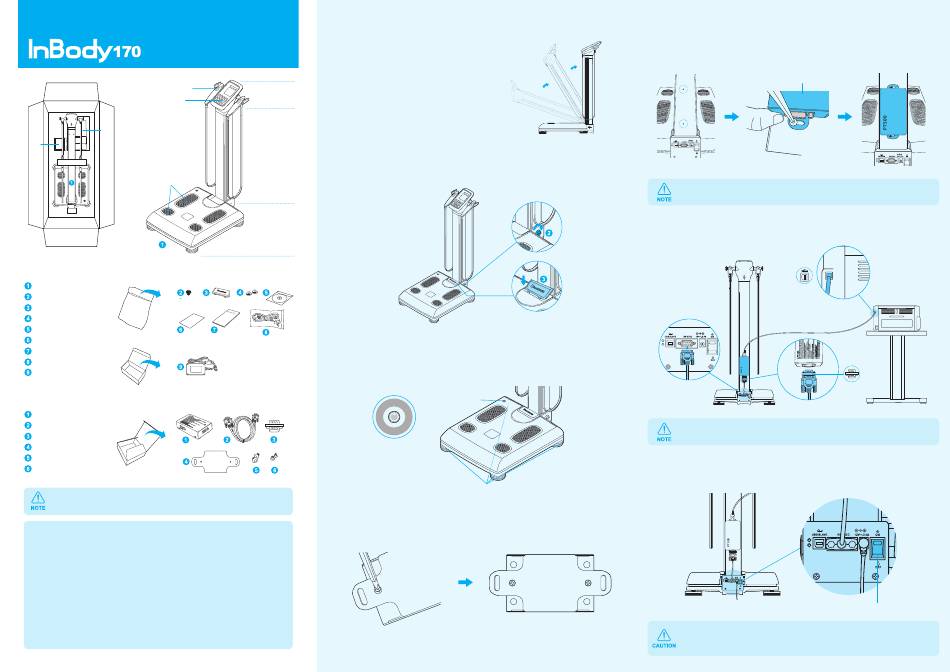

Installation Instructions
1. Raise the stand of the equipment carefully
until it stands upright.
Head
Stand
2. Tighten the joint screw connecting stand body and foot plate.
After upper part of the InBody170 is fixed, close the joint cover.
Base
3. If the air bubble is not in the center of the level indicator, tighten or loosen
the leveling screws (4EA) on the foot plate to adjust the level of InBody170.
InBody170 must be leveled properly for accurate weight measurement.
Level Indicator
< Leveled state >
4. Use the flat-headed bolt and cross screw driver to attach the PT500 and
the PT500 bracket.
<Back of the PT500>
CAUTION
CAUTION
<InBody170 Base>
Leveling Screws
<after attaching the PT500 and
the PT500 Bracket >
5. Assemble the PT500 and the hole in the backside of the InBody170
and fasten the PT500 with the round-headed bolt.
PT500
When fastening the PT500, make sure that the Serial Port is facing down.
6. Connect the InBody170, PT500, and the printer as shown in the image below.
NOTE
DANGER
Please connect the InBody and PT500 cable using the PT500 cable gender.
7. Connect the adapter to the power cord and plug it to the wall outlet.
NOTE
DANGER
Turn the InBody170 on.
<Rear view of InBody170>
Do not touch the base when turning on and during warm up. Applying pressure or weight
to the base during warm up will result in an inaccurate calibration, which may cause the
Measurements to be inaccurate.
POWER Switch
