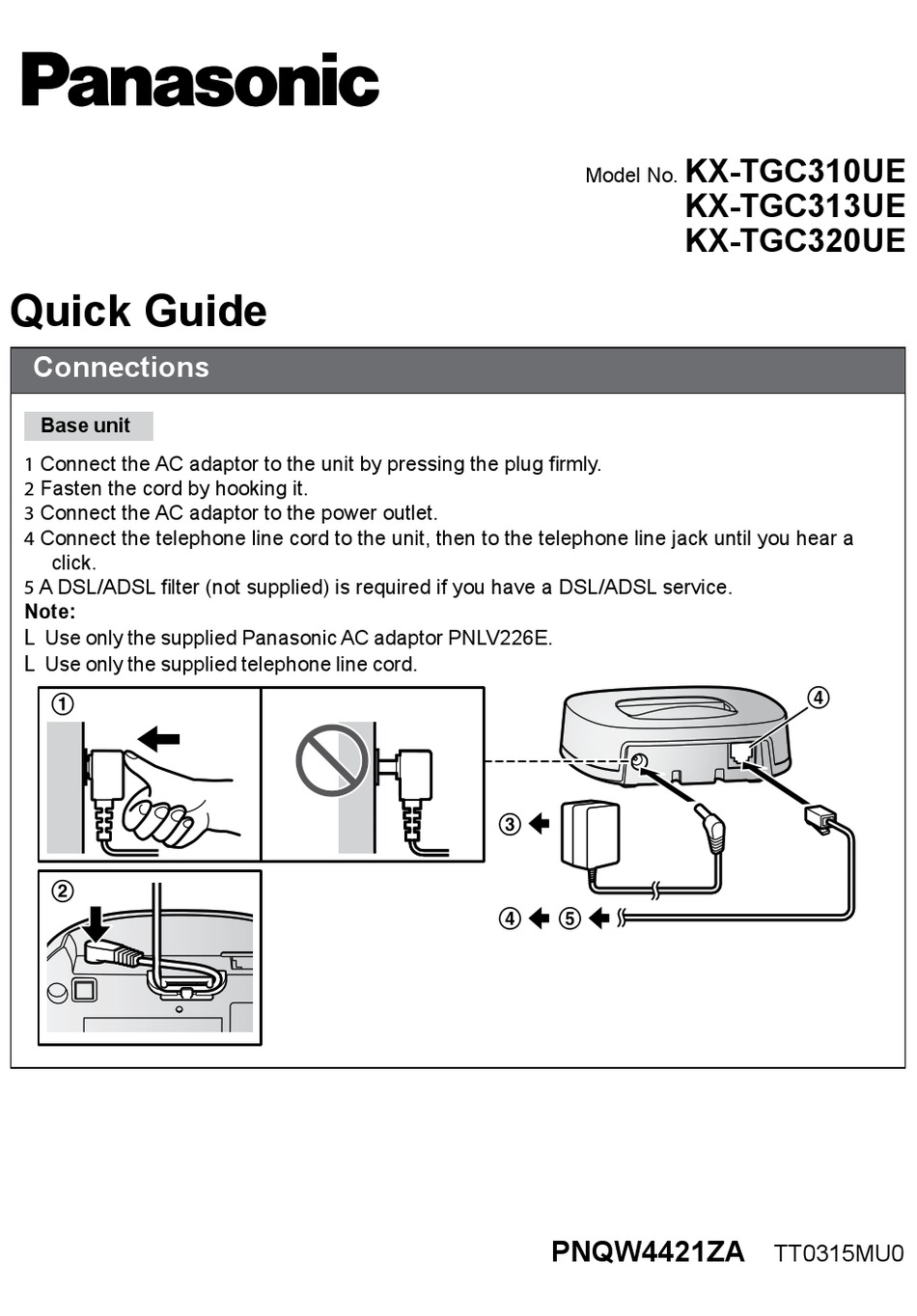

Quick Guide
Connections
Base unit
1 Connect the AC adaptor to the unit by pressing the plug firmly.
2 Fasten the cord by hooking it.
3 Connect the AC adaptor to the power outlet.
4 Connect the telephone line cord to the unit, then to the telephone line jack until you hear a
click.
5 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service.
Note:
L
Use only the supplied Panasonic AC adaptor PNLV226E.
L
Use only the supplied telephone line cord.
1
2
Model No.
3
4
5
PNQW4421ZA
KX-TGC310UE
KX-TGC313UE
KX-TGC320UE
4
TT0315MU0
Advertisement
Related Manuals for Panasonic KX-TGC310UE
Summary of Contents for Panasonic KX-TGC310UE
- Page 1 4 Connect the telephone line cord to the unit, then to the telephone line jack until you hear a click. 5 A DSL/ADSL filter (not supplied) is required if you have a DSL/ADSL service. Note: Use only the supplied Panasonic AC adaptor PNLV226E. Use only the supplied telephone line cord. PNQW4421ZA TT0315MU0...
- Page 2 1 Connect the AC adaptor plug to the unit until you hear a click. 2 Connect the AC adaptor to the power outlet. Note: Use only the supplied Panasonic AC adaptor PNLV233E. Battery installation/Battery charging Charge for about 7 hours.
-
Page 3: Operating Tips
Operating tips Soft keys By pressing a soft key, you can select the feature shown directly above it on the display. Navigator key Symbol Meaning {<} {>} Down Left {<} Right {>} − {^}, {V}, {<}, or {>}: Scroll through various lists and items. -
Page 4: Phonebook (Handset)
Phonebook (Handset) Adding entries {k} s {B} {r}: “New Entry” (New entry) s {OK} Enter the party’s name. s {OK} • You can change the character entry mode by pressing {R/ECO}. • To enter a name, see the character table in the operating instructions. -
Page 5: Frequently Asked Questions
Frequently asked questions Question Cause/solution The handset is too far from the base unit. Move closer. Why is _ displayed? The base unit’s AC adaptor is not properly connected. Reconnect AC adaptor to the base unit. The handset is not registered to the base unit. Register it (page 6). -
Page 6: Registering A Handset To The Base Unit
Registering a handset to the base unit The supplied handset and base unit are pre-registered. If for some reason the handset is not registered to the base unit, re-register the handset. Handset: {B}(13) Base unit: Press and hold {x} for about 5 seconds. Handset: {OK} s Wait until “Base PIN”...
