%OXH&ODVVLF
ClinchFX
www.clinchfx.com
Warning
It is the sole responsibility of the user to ensure that this pedal and any
associated cables and equipment are used in a manner that will not
present a danger to either the user or any other person, in conformance
with any applicable health and safety laws.
ClinchFX accepts no
responsibility for any personal injury or damage of any kind resulting
from improper use of this pedal.
1
Advertisement
Table of Contents
Related Manuals for ClinchFX Blue Classic

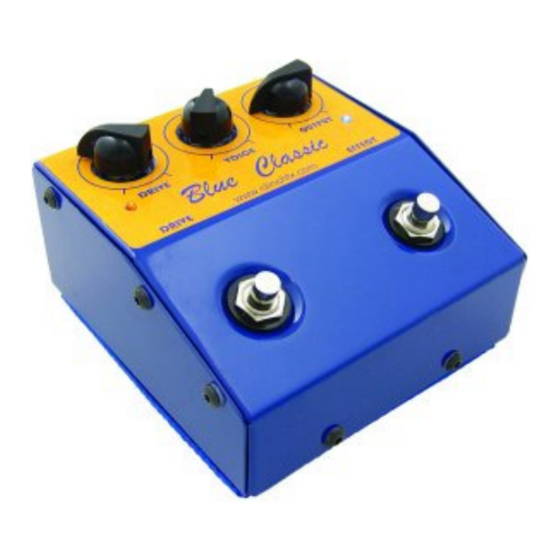

Summary of Contents for ClinchFX Blue Classic
- Page 1 ClinchFX accepts no responsibility for any personal injury or damage of any kind resulting from improper use of this pedal.
- Page 2 Power Supply The Blue Classic is designed to operate from a 9V DC supply. Minimum allowed voltage is 7.2V DC and maximum voltage is 12V DC. External Power Supply Power can be supplied from either a 9V DC regulated power pack with a 2.1mm coaxial plug with negative connected to the centre pin, or a 9V battery.
- Page 3 This switch activates the Drive control and increases the power supply sag that is designed into the Blue Classic. It also applies an increase in output level, depending on Drive control setting. The orange LED will light when Drive is operating. If Drive is activated with the pedal bypassed, the orange LED will light, but the pedal will remain bypassed.
- Page 4 The pedal serial number is located on the base of the battery compartment. Warranty The ClinchFX Blue Classic is covered against manufacturing defects for a period of one year from date of purchase. At our discretion we will either repair or replace faulty units.
