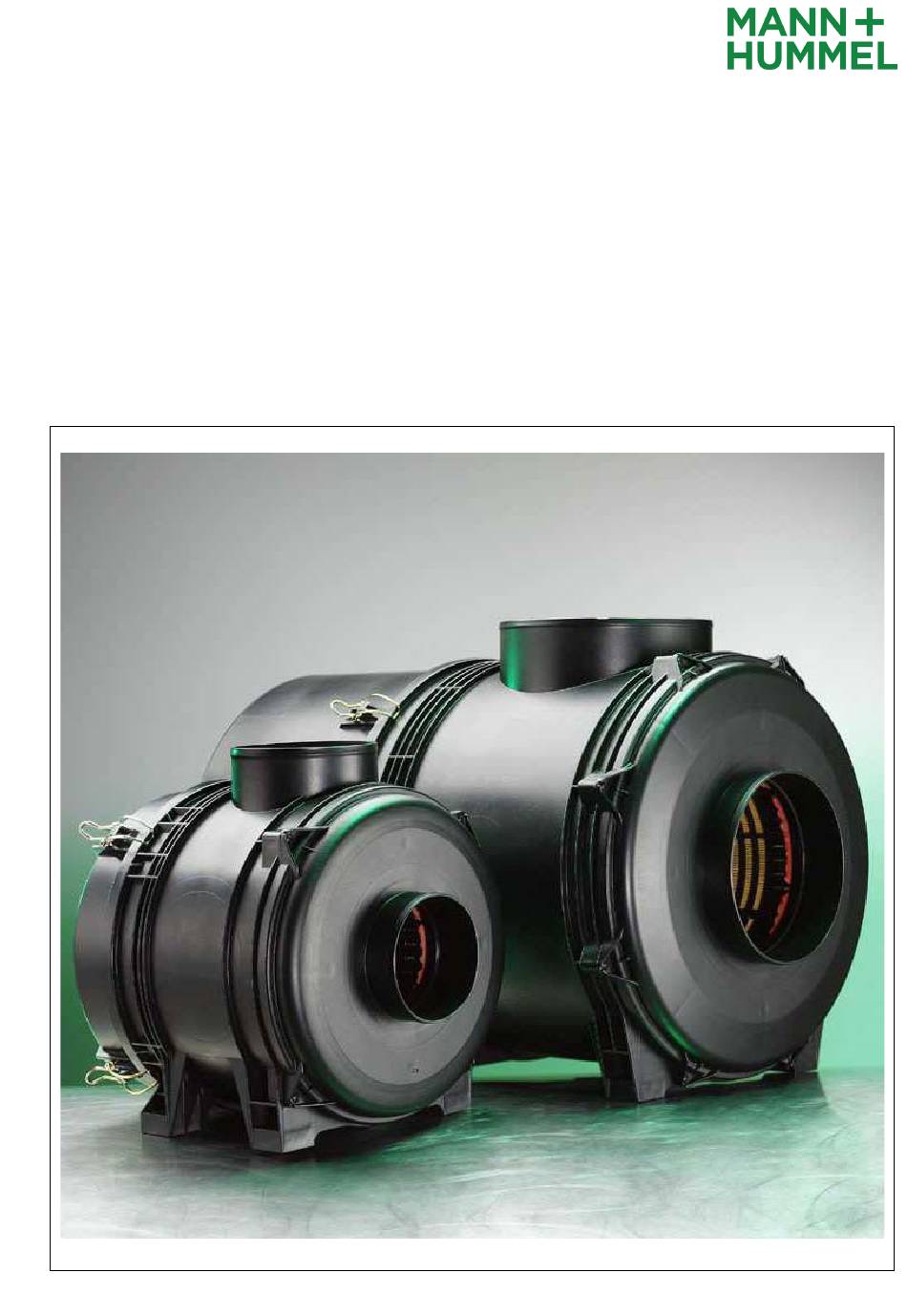

- Page 1 NLG series Operating Instructions 19 611 28 017 Version 0806...
-
Page 2: Table Of Contents
These operating instructions should make Business Unit Industrial Filters it easier for personnel to familiarize them- selves with the NLG series and to use it in Brunckstr. 15, the various application areas for which it was D - 67346 Speyer designed. -
Page 3: Safety
Functional description economical operation. The NLG series is a air cleaner designed for Intended use cleaning intake air induced by all types of machine (e.g. motors, compressors, fans). -
Page 4: Installation
As an option, seals can be installed on the non-filtered air side as hose-proof protection. However, only limited water passage is possible. The intake neck can also be fitted with a rain cap as an option, for protection from rain or snow. MANN+HUMMEL Industrial Filters... -
Page 5: Maintenance/Repair
(e.g. with a piece of card or a metal plate) until the maintenance indicator/switch triggers. After the maintenance indicator has triggered, do not continue to reduce the size of the intake opening as this will cause damage. After the test, reset the maintenance indicator by pressing the reset button. MANN+HUMMEL Industrial Filters... -
Page 6: Maintaining The Main Element
Figure 2: Removing the main element Figure 3: Cleaning the main element Carefully wipe the inside of housing with a damp cloth. Make sure that dust or dirt does not reach the clean-air end of the filter. MANN+HUMMEL Industrial Filters... -
Page 7: Replacing The Secondary Element
If in doubt, always fit a new main elements. 5.2.3 Fitting the main element Only use original MANN+HUMMEL elements. Never fit elements with a metal outer casing. – Carefully insert the main element into the housing open end first. -
Page 8: Maintaining The Dust Discharge Valve
PP-GF30 + steel inserts Plastics recycling Lower section of housing PP-GF30 Plastics recycling Diffuser Plastics recycling Wire clamp latches Spring steel wire Metal recycling Screws Steel Metal recycling Dust extraction valve Rubber recycling Screening valve TPE-S Plastics recycling MANN+HUMMEL Industrial Filters... -
Page 9: Troubleshooting
Remove dust carefully, check main element, housing and connections Housing not closed correctly for damage; replace if necessary and close housing correctly (see section 5) Wrong main and/or secondary ele- Remove dust carefully, insert original ment used MANN+HUMMEL filter elements MANN+HUMMEL Industrial Filters...
