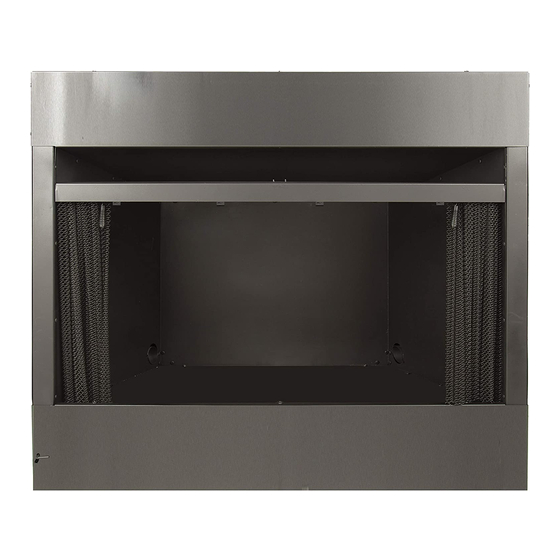

pleasant hearth ZRP320 Manual

Before installing Brick Panels to
firebox, please make sure you have
the following items:

INSTALLATION OF DECORATIVE BRICK PANELS

If any part is missing or damaged, do not attempt to assemble the product. Contact our Technical Service
Department at 1-877-477-4768 for replacement parts.
LH Panel
Center Panel
3. Set the Center Panel inside the firebox along the back interior wall facing outward so that the brick finish
is viewable. Screw in two brackets above the Center Panel in the screw holes located on the back interior
wall using two of the provided screws. (Do not tighten).
4. Adjust the LH, RH, and Center Panels so that their brick finishes are aligned and flush with one another,
then tighten all 4 screws.

WARRANTY

If within one year from the date of original purchase, this item fails due to a defect in material or workmanship,
we will replace or repair at our option, free of charge. To order parts or to obtain warranty service,
call 1-877-447-4768, Monday - Friday, 8:30 a.m. - 4:30 p.m. CST. This warranty does not cover defects resulting
from improper or abnormal use, misuse, accident, or alteration. Failure to follow all instructions in the owner's
manual will also void this warrranty. The manufacturer will not be liable for incidental or consequential damages,
or common erosion of outdoor products. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights which vary from state to state.
This product can expose you to chemicals including Benzene which is
known to the State of California to cause cancer and reproductive harm.
For more information go to www.p65Warnings.ca.gov
1. Set the LH Panel inside the firebox along the left interior wall.
The gas inlet cutouts should be on the bottom corner facing
toward the back wall and inward to the firebox, so that the brick
finish is viewable. Screw in one bracket above the LH panel in
the screw hole located on the left wall using one of the provided
screws. (Do not tighten).
2. Set the RH Panel inside the firebox along the right interior wall.
The gas inlet cutouts should be on the bottom corner facing
toward the back wall and inward to the firebox, so that the brick
finish is viewable. Screw in one bracket above the RH panel
in the screw hole located on the right wall using one of the
RH Panel
provided screws. (Do not tighten).
MODEL # ZRP320 / ZRP360 / ZRP420
TO BE USED WITH ALL PLEASANT HEARTH
Brackets 8-18 Phil. Pan
x4 3/8" B Screw
- BLACK
x4
DECORATIVE
BRICK PANEL
UNIVERSAL FIREBOX MODELS
80-10-582 - 2018-12-06
Brick
Panels
x 3
