Summary of Contents for stefani Triple Undersink

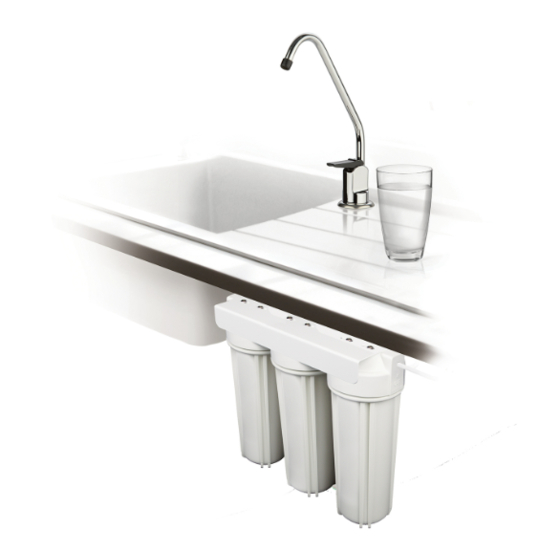

- Page 2 Additional sterilising equipment will be required for unsafe water. The Stefani Triple Undersink water filtration system is designed to operate at a maximum pressure of 862kPa (125psi); minimum pressure of 69kPa (10psi) and at a maximum temperature of 40 degree Celsius.
-
Page 3: Table Of Contents
INSTALLING WITH AN EXISTING MIXER TAP OR DISHWASHER TAP AND LOCATION SELECTION INSTALLATION INSTRUCTIONS - STEP 2........6 PURIFICATION SYSTEM ASSEMBLY INSTALLATION INSTRUCTIONS - STEP 3........8 MOUNTING THE FAUCET FINISHED INSTALLATION..…………..........9 REPLACING FILTER CARTRIDGE........... 9 WARRNATY..................11 STEFANI WATEL FILTER CARTRIDGE...........11... -
Page 4: List Of Parts
LIST OF PARTS Stefani Single Undersink Water Filtration System component identification & content check list: Ref Description Filter Housing, bracket & manifold. Mains connection shut off valve Deluxe chrome drinking faucet with locking nut 1/4”QC 50PSI Pressure Limiting Valve 1/4” OD PE White Tube 1.5 meters Faucet and 1/4”tube union connector... -
Page 5: Installation Instructions - Step 1
INSTALLATION INSTRUCTIONS - STEP 1 The Triple Undersink Water Filtration System can be fixed in 2 different ways below are the options: To find the right location, you require at least 400mm in height and sufficient access to change the filter cartridge as required on a regular basis. Avoid areas of high use to... -
Page 6: Installation Instructions - Step 2
INSTALLATION INSTRUCTIONS STEP 2 Filter housing assembly Fit the mounting manifold to a suitable position using the phillips head screws provided. Remove the plastic wrap from the around the filter cartridges before placing it into the housing Screw the filter housing onto the manifold in a clockwise direction to the end stop. Use the wrench provided and ensure the depth gauge washer cannot fit into the gap as shown on the instructions attached to the wrench. - Page 7 Cut a length of tube approximately 200mm long and connect one end to the mains connection shut off valve and the other end to the inlet of the pressure limitng valve – please ensure you check the flow direction is correct, otherwise water flow will be restricted.
-
Page 8: Installation Instructions - Step 3
INSTALLATION INSTRUCTIONS STEP 3 MOUNTING THE FAUCET Small Rubber Washer Chrome Cover Plate Large Rubber Washer Round Plate counter Locking Washer Faucet and 1/4” Tube Connector 1/4” Tube Remove the locking nut from the faucet shaft. Place Small Rubber Washer, Chrome Cover Plate and Large Rubber Washer on the shaft of faucet. -
Page 9: Finished Installation
FINISHED INSTALLATION REPLACING FILTER CARTRIDGES It is recommended to only use Stefani water filter cartridges with this filtration system. This will ensure optimum performance, protection from contaminates and compliance with the warranty. Product code to look out for replacement filters are... - Page 10 Your filter cartridges may need replacing earlier than 6-8 months if you notice a reduce volume or flow from the filter faucet, or the return of an unpleasant taste/odour to the filtered water. Please contact Stefani Australasia Pty Ltd on (08) 9350 6178 or email to stefani@stefani.com.au if you require any assistance.
-
Page 11: Warrnaty
Save insofar as they may be excluded by law, this warranty is given in lieu of all other expressed or implied warranties or conditions and STEFANI shall in no event be held liable for damages or delays caused by defects and assume no responsibility for unauthorised repairs. - Page 12 Please check the Water Filter Cartridge Guide on page 11 for other suitable fillters for this system. Register online at www.stefani.com.au for a filter change reminder by email. A filter change reminder fridge magnet has been supplied for your convenience.
