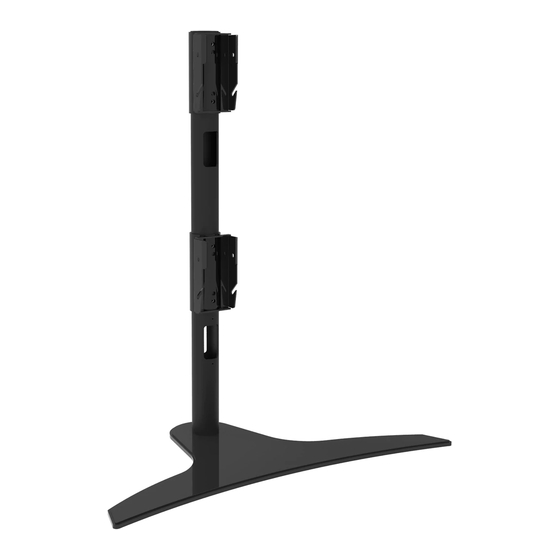

- Page 1 FS-MIS38426 For Samsung Super Ultra Wide Curved Monitor 43": LC43J890DKNXZA 49": C49HG90DMN 49": LC49J890DKNXZA 49": LC49RG90SSNXZA 60 lb (27 kg) 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 2 WARNING ENG - Do not begin to install product until you have read and understood the instructions and warnings contained in this user guide. Always use an assistant or mechanical lifting equipment to safely lift and position equipment. This product must be installed onto flat, hard, level surface to prevent tipping. Use with heavier displays may result in instability causing tip over resulting in death or serious injury.
-
Page 3: Parts List
Parts (Before beginning, make sure you have all parts shown below). Parts List Description Part # A (1) base plate 091-1207 adaptor support 091-1211 base plate right adaptor bracket 091-1243 left adaptor bracket 091-1244 support tube 091-1219 M6 x 6mm hex set screw 510-9150 M4 x 10mm socket pin screw 520-1060... - Page 4 Attach adhesive pads to the bottom of the base plate. M (6) H (2) 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 5 J (4) I (4) B (2) 3/8" (10mm) Samsung Super Ultra Wide Samsung Super Ultra Wide Curved Monitor Curved Monitor 43" (LC43J890DKNXZA) 49" (C49HG90DMN) 49" (LC49RG90SSNXZA) 49" (LC49J890DKNXZA) F(2) 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 6 4a-1 4b-1 49" (C49HG90DMN), 43" (LC43J890DKNXZA) 49" (LC49J890DKNXZA) 49" (LC49RG90SSNXZA) 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 7 4a-1 Top display Note orientation of tab Samsung Super Ultra Wide Curved Monitor 49" (C49HG90DMN), 49" (LC49J890DKNXZA), 49" (LC49RG90SSNXZA) sold separately 4a-2 Note orientation of tab Bottom display 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 8 4a-3 Top display G (4) 4a-4 G (4) Bottom display 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 9 This page intentionally left blank. 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 10 4b-1 Top display Samsung Super Ultra Wide Curved Monitor 43" (LC43J890DKNXZA) sold separately. 4b-2 Bottom display 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 11 4b-3 G (4) 4b-4 G (4) 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 12 Attach foam strip to the top edge of bottom display. 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 13 Attach top display first. Top view Attach bottom display. Top view 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 14 WARNING ENG Must support weight/front of display when disengaging quick release knobs from support tube. QUICK RELEASE; Pull knobs to disengage. Support display, tilt forward. 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 15 Optional: cable management 2019-08-19 #:090-9216-4 (2020-06-23)
- Page 16 Garantia TÜR Garanti̇ Garanzia Záruka www.peerless-av.com/warranty Peerless-AV Peerless-AV Europe Peerless-AV América Latina 2300 White Oak Circle Unit 3 Watford Interchange, Av. de las Industrias 413 Aurora, IL 60502 Colonial Way, Watford, Herts, Parque Industrial Escobedo Email: tech@peerlessmounts.com WD24 4WP, United Kingdom General Escobedo N.L., México 66062...
