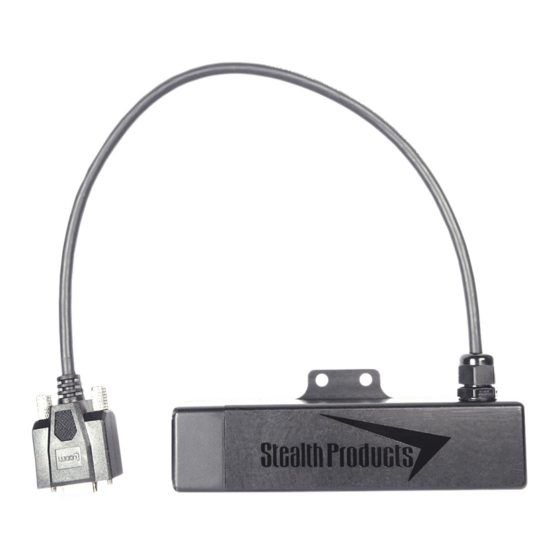

Stealth Products i-Drive 4.0 User's Manual And Maintenance Manual

Alternative drive control
Hide thumbs Also See for i-Drive 4.0:
Table of Contents

Advertisement

Quick Links

Download this manual

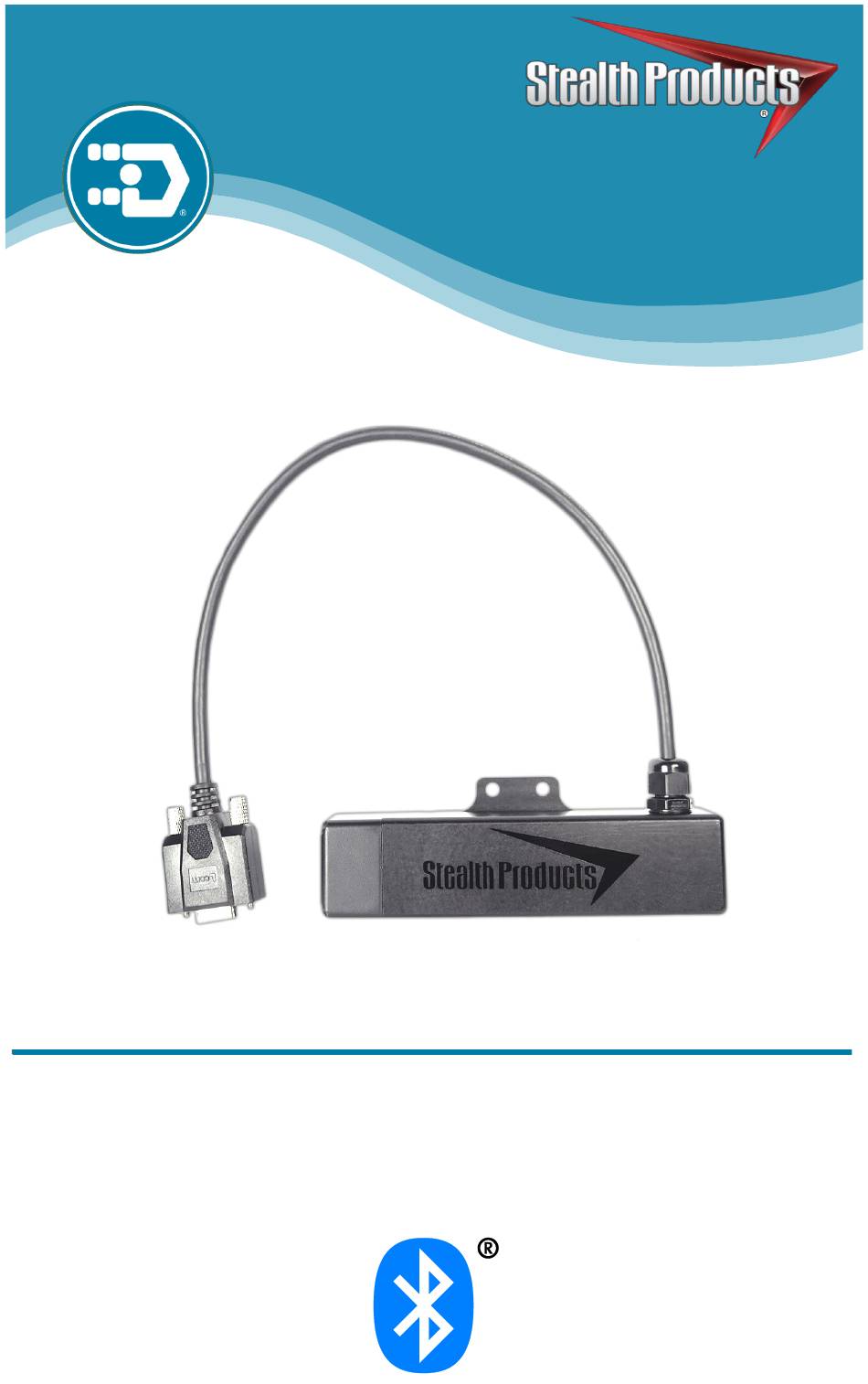

Alternative Drive Controls
USER MANUAL
®
i-Drive
4.0
Stealth's User Manual and Maintenance Guide for i-Drive 4.0
®
Alternative Control with Bluetooth
Wireless Technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i-Drive 4.0 and is the answer not in the manual?

Questions and answers

Related Manuals for Stealth Products i-Drive 4.0

Summary of Contents for Stealth Products i-Drive 4.0

  • Page 1 Alternative Drive Controls USER MANUAL ® i-Drive Stealth’s User Manual and Maintenance Guide for i-Drive 4.0 ® Alternative Control with Bluetooth Wireless Technology...

  • Page 2: Customer Satisfaction

    AppStore Logo are registered trademarks of Apple Inc. ® The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Stealth Products, LLC is under license. Other trademarks and trade names are those of their respective owners.
  • Page 3 Important Information Important Information! All persons responsible for fitting, adjustment, and daily use of the devices discussed in these instructions must be familiar with and understand all safety aspects of the devices mentioned. In order for our products to be used successfully, you must: ...

  • Page 4: Introduction

    Ordering Documentation You can download additional copies of this user manual on the Stealth website: https://stlpro.site/stealth-docs and search: i-Drive 4.0 User Manual in the search bar at the top of the page.

  • Page 5: Warranty

    Warranty Our products are designed, manufactured, and produced to the highest of standards. If any defect in material or workmanship is found, Stealth Products will repair or replace the product at our discretion. Any implied warranty, including the implied warranties of merchantability and fitness for a particular purpose, shall not extend beyond the duration of this warranty.

  • Page 6: Fcc Statement

    This device must accept any interference received, including interference that may cause undesired operation. FCC Warning Changes or modifications not approved by Stealth Products, LLC could void the user’s authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC rules.

  • Page 7: Table Of Contents

    Table Of Contents 1.0 Customer Satisfaction..................i 2.0 Important Information ................. ii 3.0 Introduction ....................iii 4.0 Warranty ......................iv 5.0 FCC Statement ....................v 6.0 Table Of Contents ..................vi 7.0 Warning Labels ................... viii 7.1 Warning Labels ......................viii 7.2 Limited Liability ......................
  • Page 8 Table Of Contents 12.6 Help Feature ....................... 11 12.7 Closing the i-Drive Programming Software ..........12 13.0 i-Drive Mobile App Installation ............... 13 ® 13.1 Downloading the i-Drive Bluetooth Application ........13 For iPhone Users ....................13 For Android Users ..................... 14 ®...

  • Page 9: Warning Labels

    SAFETY be necessary. Limited Liability Stealth Products, LLC accepts no liability for personal injury or damage to property that may arise from the failure of the user or other persons to follow the recommendations, warnings, and information in this manual.

  • Page 10: Index

    Index Configurable Parameters-There is only one additional configurable parameter in the i-Drive configuration application for switched inputs, sensor sensitivity. Sensor Sensitivity–This parameter shifts the position of the switch no-change region. A higher value therefore means that a switch will always be interpreted as ON, whereas a lower value means that a switch will almost always be interpreted as OFF.
  • Page 11 Index Configurable Parameters (Mouse Emulation)-The multi-tap feature is configurable under ‘Multi-Tap’ in the i-Drive configuration applications. Two parameters are configurable, Input Delay and Output Speed. Input Delay-This is the longest time that the i-Drive system will wait for additional taps after the first tap is detected.

  • Page 12: System Requirements

    System Requirements i-Drive Minimum System Requirements Processor 1 GHz RAM1 512 MB Disk Space 7 MB Operating System 1 Windows Vista SP2 or later (32-bit or 64-bit) Additional Requirements Internet access and a valid DAD account for configuration features, .NET Framework 4.5.1 i-Drive Bluetooth Minimum System Requirements Processor 1 GHz...

  • Page 13: Design And Function

    Design And Function 10.0 Intended Use 10.1 The i-Drive control system allows the use of alternative input devices to drive an electric wheelchair. Up to six input devices such as an egg switch, proximity pad, Sip & Puff, head array, and tray array are supported. The i-Drive system relies primarily on two types of input interpretations: switched and proportional.

  • Page 14: Factory Settings

    Port 6 Left Port 1 The i-Drive 4.0 has the capability of taking inputs from mechanical switches, proximity sensors, fiber optic sensors, joysticks, and Sip & Puff modules (all which can be configured by a certified technician). With the new i-Drive...

  • Page 15: Parts And Accessories

    Parts And Accessories 11.0 i-Drive 4.0 Packages Available 11.1 Part Number Description IDHBT200-1 i-Drive Tri-Array Head Support, includes 3 Proximity Sensors, non-proportional, with egg switch for reset mode change and i-Drive ® Bluetooth Interface IDHBT210-1 i-Drive Tri-Array Head Support with Sip & Puff, includes 3 Proximity ®...

  • Page 16: Advanced Programming Software

    Getting Started 12.2 The first step to begin use of the i-Drive 4.0 is downloading the software. The link to download the software is listed on page 7. If there are any difficulties obtaining the software, contact Stealth Products, LLC.
  • Page 17 Advanced Programming Software 12.0 The Bluetooth interface enables an external device to communicate with the i-Drive via a secure Bluetooth connection. *PC views shown. In order to connect to the i-Drive to the software, the serial number from the interface must be entered. The figure below indicates the location of the serial number on the interface.

  • Page 18: Connecting To The I-Drive

    Advanced Programming Software 12.0 Connecting To The i-Drive 12.4 After adequate time is given to allow the i-Drive to connect to your computer and you have launched the application, click the Connect button. NOTICE If may be required to change the COM in the drop-down menu next to the Connect button.

  • Page 19: Running Real Time Diagnostics

    Advanced Programming Software 12.0 Running Real Time Diagnostics 12.5 To begin the Diagnostics, click the Diagnostics button on the left of the screen. Mode Switch activation Left, Right, Forward & Reverse activation Corresponding i-Drive port when switch is pressed Double Tap Calibration Diagnostics Feature With real time Diagnostics, you are able to observe pad behavior as the head array is activated by the user.

  • Page 20: Help Feature

    Advanced Programming Software 12.0 Help Feature 12.6 Clicking the Help button will activate help. When Help is active, the help button will be green and a question mark (?) will be displayed next to your cursor. With Help active, clicking buttons and menu items will pop up with an explanation of what the clicked object is and how it can be utilized.

  • Page 21: Closing The I-Drive Programming Software

    Advanced Programming Software 12.0 Closing the i-Drive Programming Software 12.7 When you are finished configuring the i-Drive, you can click on the Quit button on the bottom right of the screen to close the application.

  • Page 22: I-Drive Mobile App Installation

    i-Drive Mobile App Installation 13.0 ® Downloading the i-Drive Bluetooth Application 13.1 ® For iPhone Users:  Search, “Trident Research, LLC” in the Apple® App Store®  Install the App and then “Open” once App has been successfully installed on your phone.

  • Page 23: For Android Users

    i-Drive Mobile App Installation 13.0 For Android Users:  Search “Trident Research, LLC” in the Play Store  Select “Install” and then “Open” when the App has been successfully installed on your phone.

  • Page 24: Opening The I-Drive Bluetooth ® App

    i-Drive Mobile App Installation 13.0 Opening the i-Drive App 13.2  A battery, battery charger, dongle cable, and a 9-pin pig tail plugged into the USB port on the interface is required in order to connect the i-Drive to your phone. Open the app on your wireless device.
  • Page 25 i-Drive Mobile App Installation 13.0 When the Main Menu reappears, select Connect on the screen. (Figure 3) Your device will search for the i-Drive. When it has located the device, the serial number will appear. Another window will appear notifying you that Diagnostics will only be available.

  • Page 26: Diagnostics

    i-Drive Mobile App Installation 13.0 Diagnostics 13.3 After channel assignments and any other modifications necessary have been made, go back to the Main Menu. Select Diagnostics in the Main Menu. Test the assignments on your i-Drive device by activating each channel. When the direction assigned to the channel has been activated, the direction should light up in green.

  • Page 27: Testing

    Testing 14.0 After the installation of the i-Drive, execute the following tests before the wheelchair is delivered or put into service:  Operational Test  Test Drive  Stop Test Operational Test 14.1 WARNING Execute this test only on a level surface, in an open area free of obstacles. Activate the wheelchair operating system.

  • Page 28: First Time Use

    Can the user safely operate the wheelchair with minimal effort? Conditions Of Use 15.3 ® The i-Drive 4.0 with Bluetooth wireless technology is intended for use as installed by the dealer, in accordance to the installation instructions in this manual.

  • Page 29: Maintenance

    Maintenance 16.0 Care And Maintenance 16.1 Ensure the hardware you are using stays in working order by keeping it cared for and maintained.  Keep electronics dry and out of the water.  Periodically check the hardware for looses screws or worn parts. Replace or repair the parts as needed.
  • Page 30 Notes 17.0...
  • Page 31 Notes 17.0...
  • Page 32 Stealth Products, LLC. • info@stealthproducts.com • www.stealthproducts.com +1(800) 965-9229 | +1(512) 715-9995 | 104 John Kelly Drive, Burnet TX 78611 P137D434 Revision Date 2019-12-17...
