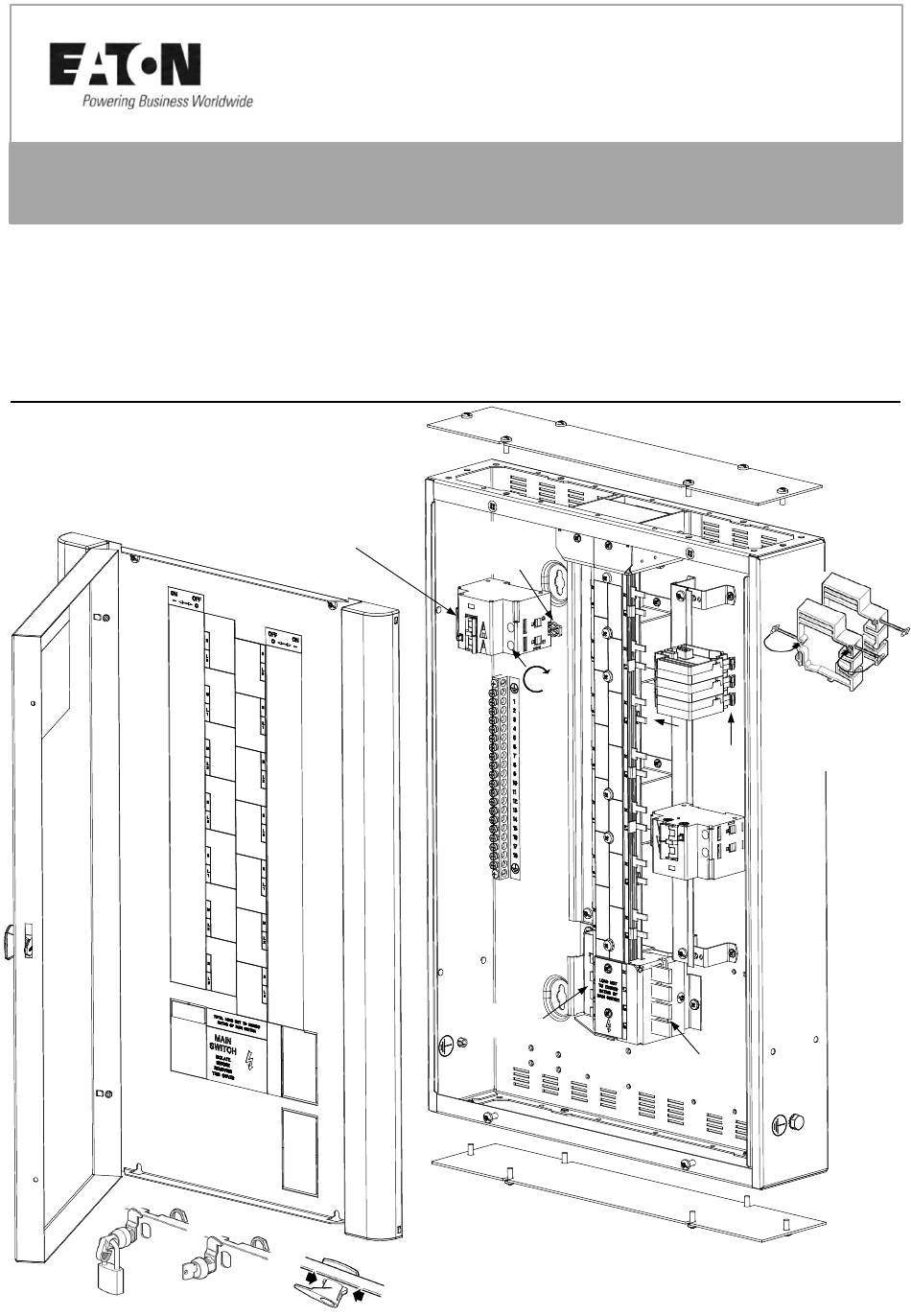

EBMAFDD14-36 - ARC FAULT DETECTION DEVICE (AFDD) DISTRIBUTION BOARD
Instruction leaflet LT1230 (02/20)
IMPORTANT NOTES
1. This product should be installed, commissioned and maintained by or under the supervision of a competent electrician in
accordance with current electrical engineering Codes of Practice, Requirements for the Electrical Installations (IET Wiring Regulations
BS7671), Construction (Design and Management) Regulations, HSG150 - Health and Safety in Construction, Statutory requirements and
any specific instruction issued by the Company.
2. After completing the installation and testing of this product it is essential that this leaflet is drawn to the attention of the person
responsible for its future operation and maintenance, and is at all times available for ready reference.
3. These notes assume throughout that the product is disconnected from the supply. It is essential that this is done before any work is
carried out.
4. These Distribution Boards are designed for use with Eaton AFDDs only. Failure to comply will result in invalid warranty and certification.
300957 – EBMAFDD14 - 14 Way DB
300958 – EBMAFDD24 - 24 Way DB
300959 – EBMAFDD36 - 36 Way DB
Before fitting the AFDD to the busbar ensure the terminals are
fully open. Locate the AFDD square to the
Insert Lock into hole tighten back nut
busbar and tighten the terminals.
Remove plastic knob
Important:
Orientate clip next
to busbar stack
2.4Nm
Incoming
Switch position
Fitting Optional Door
Lock EMDL & EMPL
This board is intended to be used
with Eaton AFDD devices
All unused ways must
Be covered with a
blanking module,
assembled and
Clip fit
fitted in gangs of 3.
Optional
SPD
position
General note: Tightening torque for
M5 thread forming screws is 3.8Nm
up to 40A
EMPB
