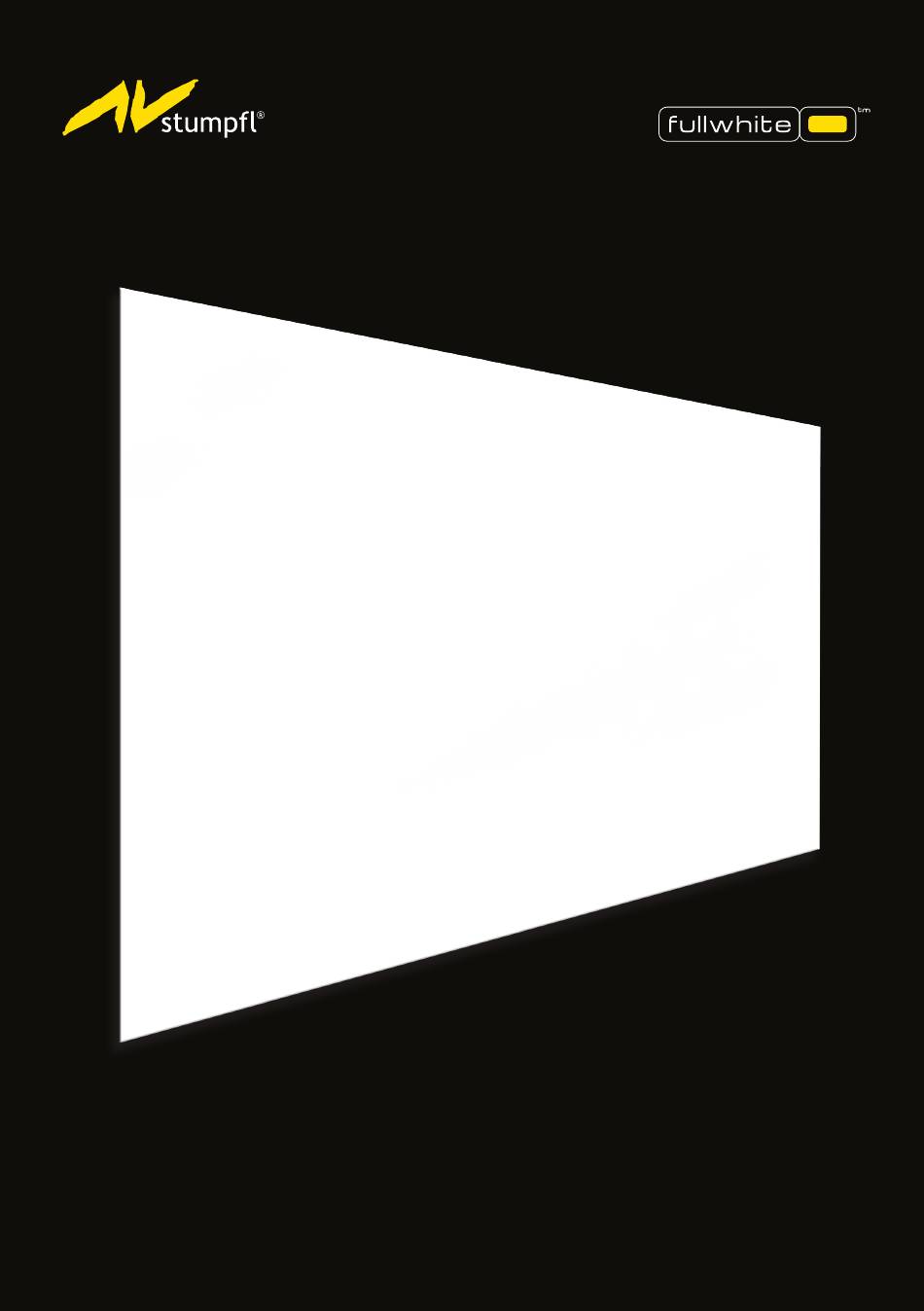

- Page 1 FULLWHITE MANUAL...
-
Page 2: Warranty
GENERAL QUALITY AND SAFETY: This projection screen is in accordance with the safety regulations in DIN standard 19045. The screen fabric is comply with DIN 4102 part 1 and the specifications of the according data sheet. WARRANTY: The warranty period for production deficiencies is 5 years for the frame elements and 24 months for the projection surface. - Page 3 OVERVIEW Further development of the mobile projection screens for applications where technology plays a sec- ondary role and puristic design is required. With the minimalistic design this projection screen fits easily in every optical superior installation. Universal, invisible mounting options as well as high stability and flexibility are essential features of this projection system.
-
Page 4: Frame Set Up
FRAME SET UP In case a positive connection is required, each Insert the red locking plate into the inner slot, clamp connection can be secured with the according to the picture on the left. enclosed red locking plate. Stick together each straight frame profile with a clamp connector with the subsequent frame section according to the labels. -
Page 5: Connection Plate
CONNECTION PLATE Slide the connection plate (red) over the securing holes as shown on pictures and tighten the locking pins with the enclosed screwdriver completely. - Page 6 FRAME SET UP Put together the connected upper and lower straight horizontal frame elements with corner parts on each end. Clamp the connection by turning the two clamp screws clockwise and secure the connections with the red locking plates.Next plug in the vertical elements, clamp and secure them in the same way.The vertical connections must always be secured with the locking plates!
-
Page 7: Center Support
CENTER SUPPORT 1-2 Put together the center support according to the labels and secure the connections with the two wing nuts. 3 Detach the pivot nuts from the top and bottom center support element and insert them into the inner slot of the horizontal frame bar. 4 Place the center support and secure it on top and bottom with the Phillips screws. -
Page 8: Protective Foil
PROTECTIVE FOIL ATTENTION!! Before you unroll the projection surface with the projection side down, the floor has to be cleaned completely and the supplied protective foil has to be laid out. The protective foil is to prevent contamination and damage to the projection side of the projection surface. -
Page 9: Mounting Options
MOUNTING OPTIONS MOUNTING BRACKET FOR WALL MOUNTING Optional as vertical or horizontal mounting point Vertikal mounting Horizontal mounting MOUNTING BRACKET FOR CEILING MOUNTING POINT FOR LEGS: SUSPENSION Individually movable mounting points with M8 threaded inserts for legs can be mounted at the back of the frame profile. -
Page 10: Pivot Nuts
PIVOT NUTS General attachment of pivot Nuts M8 DISASSEMBLY The dismantling is done in reverse order. The black colored clamp points should stay con- nected with the frame profile (see photo). -
Page 11: Mounting Plate
ACCESSORIES MOUNTING PLATE The installation of the projection surface with large FULLWHITE is done by using mounting plates.These mounting plates lifts the frame and it floats above the ground about 11cm (4.5 inches). Through the gained ground clearance the projection surface can be strached around the frame and hooked into the underlying groove easily.
