Summary of Contents for AVstumpfl Desertscreen

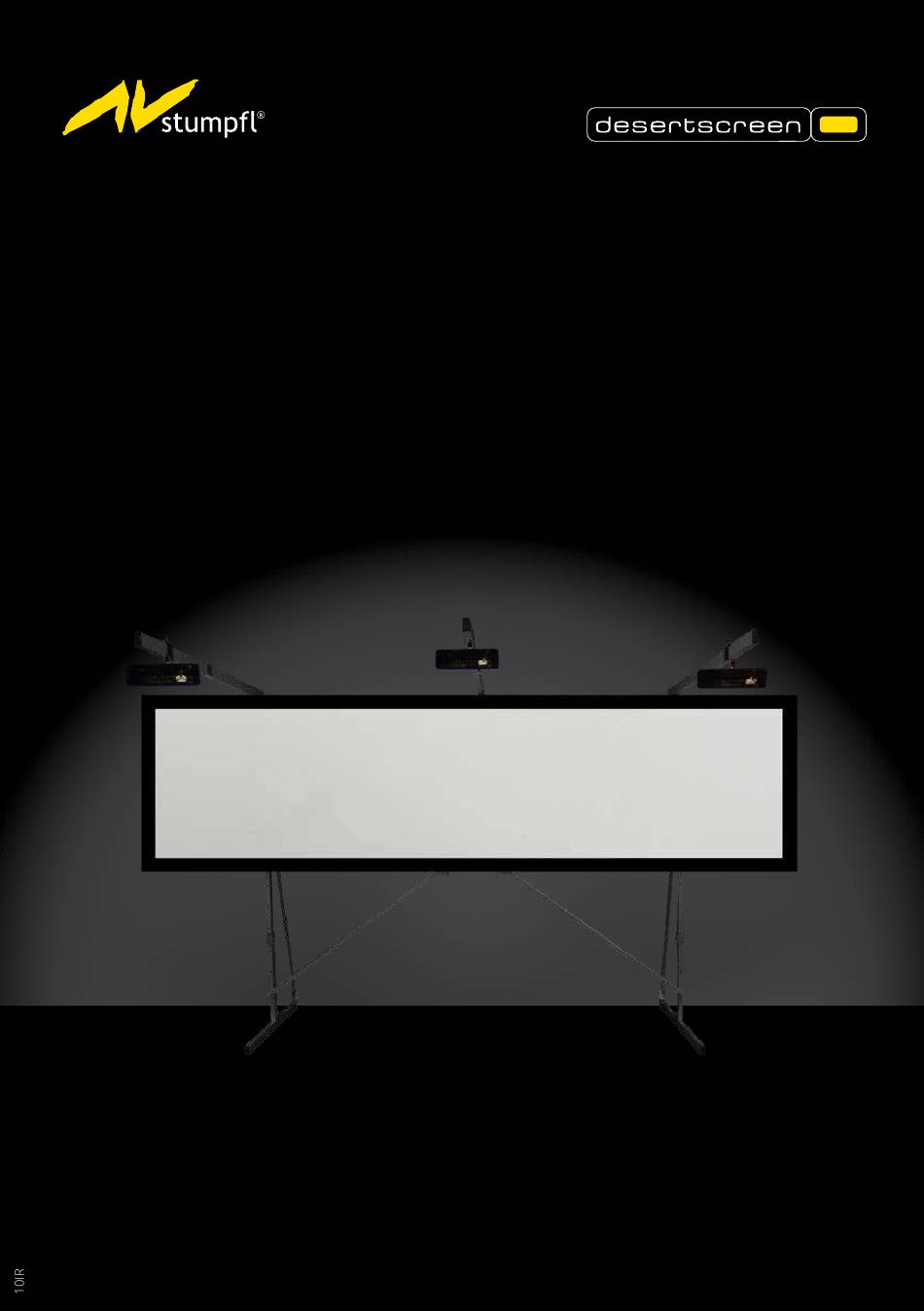

- Page 1 DESERTSCREEN INSTRUCTION FOR DESERTSCREEN...
- Page 2 SYSTEM COMPONENTS • Foldable Monoblox 64 frame with patented self locking snap joints • Foldable projection surface with reinforced border and rubber coated press buttons (optional Invisnaps) • Special AT-Legs with adjustable telescopic support • Anti sway braces for perfect stability •...
- Page 3 GENERAL QUALITY AND SAFETY: This projection screen is in accordance with the safety regulations in DIN standard 19045 and DIN 56950. The screen fabric is comply with DIN 4102 part 1 and the specifications of the according data sheet. WARRANTY: The warranty period for production deficiencies is 5 years for the frame elements and 24 months for the projection surface.
- Page 4 FRAME SET UP 1 Unfold the horizontal frame elements 2 Put together the vertical parts of the two frame Snap joints will lock automatically. bars. Corner hinges have to be open for ease as- sembly. 3 Secure the vertical frame elements with the 4 Close the corner hinges for maximum stability wing screws M8x15mm.
- Page 5 7 Set up the screen with the AT64-Legs at the 8 Each AT64-Legs must be bolted to the frame predefined height. with two wing screws M8x85mm at the left and right middle strut. PROJECTOR ARMS 9-12 Unfold the projector arms and rotate the vertical element by 270° so that the horizontal bar is positioned as seen on the pictures.
- Page 6 13-14 Now, connect the projector arms to the three middle struts at the appropriate screwing points with two wing screws M8x85mm each. ANTI-SWAY BRACES 15-18 Maximum lateral-stability is gained by mounting the anti-sway-braces. Attach the Anti-sway brace through the vertical leg element and open the two wing nuts to be able to adjust the telescopic length and clamp the plates to the horizontal bottom bar of the Monoblox64 screen.
- Page 7 SCREEN SURFACE The screen surface must be attached to the frame with several people to avoid any damage. Depending on the size of the setup area and the number of team members, the surface can be attached to the frame either when the frame lies on the ground or right after the frame system setup is completed.. PROJECTOR BRACKETS Projector brackets (black) can be positioned stepless along the projector arms.
- Page 8 AV Stumpfl GmbH | Mitterweg 46 | 4702 Wallern AVstumpfl@AVstumpfl.com | www.AVstumpfl.com | +43 7249 42811...
