ADTRAN MX3208 Specifications

Product Features
I Controller cards provide DS1
drop and insert capability for
DS3 networks
I DS1 cross connects between
both DS3 interfaces and local
DS1 drops
Hot-swappable controller
I
cards protected with 1:1
redundancy
Optional router providing end-
I
to-end Ethernet extension over
a single T1 as well as terminal
server functionality - Ideal for
IP-based traffic over TDM
backhauled network
Remotely managed through
I
SNMP or Telnet
DB9 craft interface for access
I
to user-friendly configuration
and performance monitoring
menus
I Comprehensive test and
performance monitoring
features
I NEBS Level 3 compliant
I Powered by 24 or 48 volts
Extended Temperature range,
I
-40°C to 65°C
MX3208 and MX3216 both use
I
the same chassis and there-
fore expansion can be made
without switching facilities

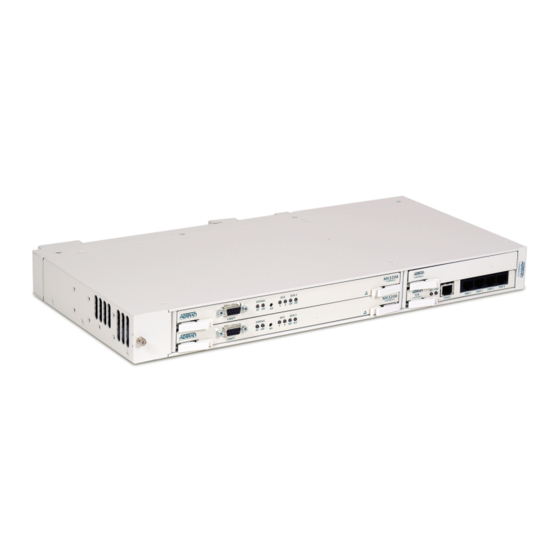

Drop/Insert DS3 Networking
MX3208 / MX3216
ADTRAN's newest drop and continue
M13 multiplexer delivers DS1s directly
to service locations, allowing carriers
full utilization of DS3 bandwidth. The
MX3208 provides up to a full T1 of
bandwidth, accessible at any point
along the DS3 path, for data Ethernet
connectivity. It costs less than half the
price of other early generation drop and
continue products.
Drop and insert DS3 networking is prac-
tical and efficient with the ADTRAN MX3208
or MX3216. Packaged in a 1RU, 19-inch
chassis the MX3208 or MX3216 routes DS1s
between the two DS3 interfaces with access
to 8 or 16 DS1s at any node.
1-8 x T1 MX3208
1-16 x T1 MX3216
The MX3208 interfaces to two coaxial
DS3s and provides the ability to drop and
insert up to 8 DS1 signals from either DS3
interface on the terminal side. The MX3216
provides the same functions as the MX3208
with 16 DS1 signals. The DS1s will be acces-
sible through the champ connector on the
back of the chassis as short haul DSX-1
signals. An RMM can be added as an
optional IP router for Ethernet network exten-
sion throughout the network and
telnet-based terminal server ports.
1-8 x T1 MX3208
1-16 x T1 MX3216
1-8 x T1 MX3208
1-16 x T1 MX3216
End-to-end solution
Manageable at any point
Manage any element from any
location along a DS3 Path
LAN connectivity at any site
RMM IP TRAFFIC
