Operating Elements

1
6
Dual-band 2 .4GHz and 5GHz Antennas sends and receives sACN Wi-Fi
1
transmission
Long LumenRadio CRMX Antenna transmits wireless DMX to CRMX
2
receivers
Link/Unlink CRMX press to link CRMX to receivers. Hold 3+ secs to unlink
3
all receivers
4 CRMX Indicator LEDs display CRMX mode, status and data
5 sACN Indicator LED displays status of sACN network and network ports
6 Corner System Indicator LEDs displays device system status
6
1
2

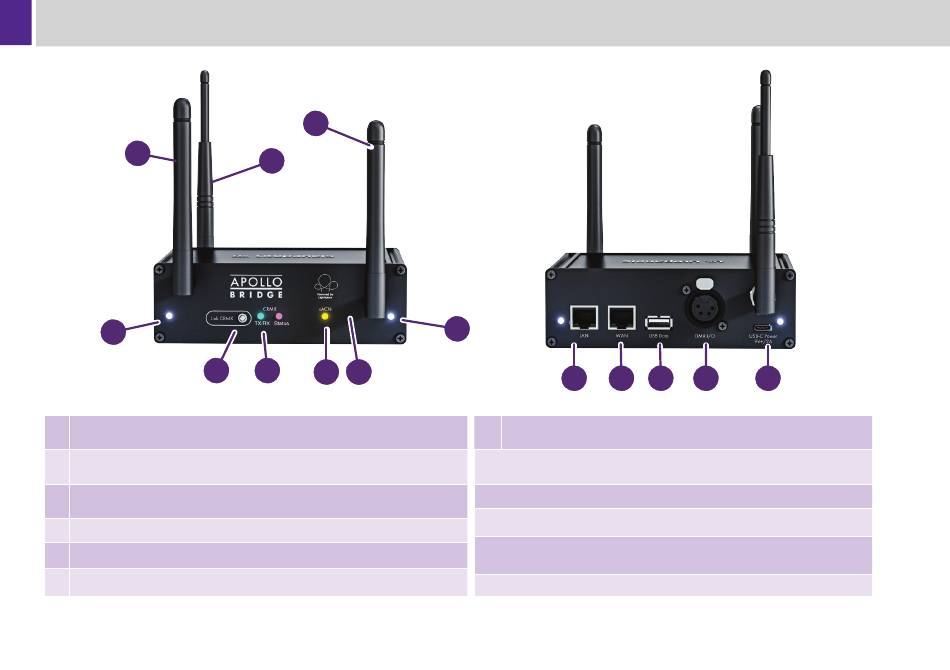

Front View
3 4
5 7
Rear View
6
8 9
Reset Pinhole Button press to reboot or hold for 3 seconds to reset to
7
factory default settings
LAN RJ45 Port connect to sACN Local Area Network devices such as
8
a lighting console
9
WAN RJ45 Port connect to Wide Area Networks, such as the internet
10
USB 3 Port for use with future features and accessories
5-Pin DMX In/Out connect to hard-wired DMX controlled fixtures or to a
11
DMX lighting board. Defaults to output
12
USB-C Power Port connect from 9V+ USB-C power supply or battery
12
10 11
