Summary of Contents for Swann HOME Series

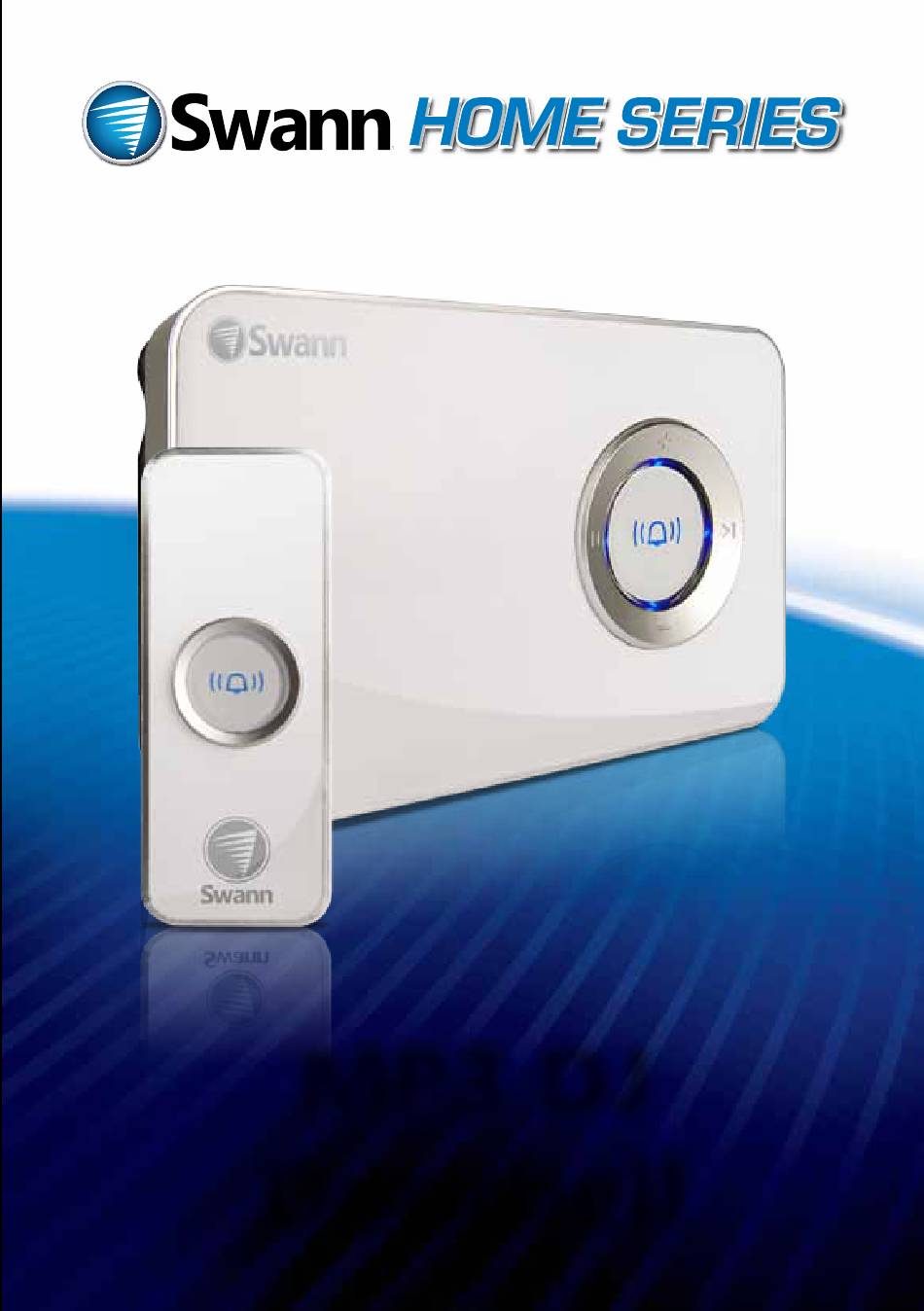

- Page 1 MP3 DJ Doorbell MDC845B130212E...
- Page 2 Installation Guide Sick of not hearing your favourite tunes when someone comes to the door? Tell us about it. In fact, we were so sick of that generic “bing-bong” (as opposed to something we could groove-on-out to) that we felt the need to release this MP3 playing wireless doorbell! Basically, how it works is like this: •...
- Page 3 Copying Music to the Doorbell Connecting the Doorbell to a Computer The internal memory of the doorbell can be accessed by a computer in the same way that you’d access a USB flash drive or similar, removable storage device. • Connect the smaller plug on the included USB 2.0 cable to the USB port on the side of the speaker unit.
- Page 4 Layout of the Speaker Unit Increase Volume Play / Stop Next Song Previous Song Decrease Volume On/Off Switch USB Port Battery Compartment DIP Switches Mounting Holes Loudspeaker USB Port The speaker unit can connect to a computer via the USB port, using the included USB cable.
- Page 5 Batteries and DIP Switches Batteries For the best performance, use fresh, high quality alkaline AA batteries. Don’t mix battery types. The speaker unit needs 3 AA batteries, which are inserted into the battery compartment on the rear of the unit. The battery compartment slides open, as indicated by the markings on the rear of the speaker unit.
- Page 6 Editing Music You’ll need to install the included software on a compatible computer. The software is compatible with Windows-based systems only (Mac users most likely have audio editing software installed already!). We’re assuming you want to select a specific part of a song to playback, such as jumping straight to the chorus of a favourite song, for example.
- Page 7 Specifications Operating current (receiver unit): 4.5V (3 x AA Batteries, not included) Operating current (doorbell unit): 12V (1 x A23 Battery, included) Transmission Frequency: 433Mhz +/- 1MHz Transmission Range: Up to 50m/164ft (line of sight) Internal Memory 2GB (1.7GB available after formatting) FCC Verification This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 8 Swann. The end user is responsible for all freight charges incurred to send the product to Swann’s repair centers. The end user is responsible for all shipping costs incurred when shipping from and to any country other than the country of origin.
