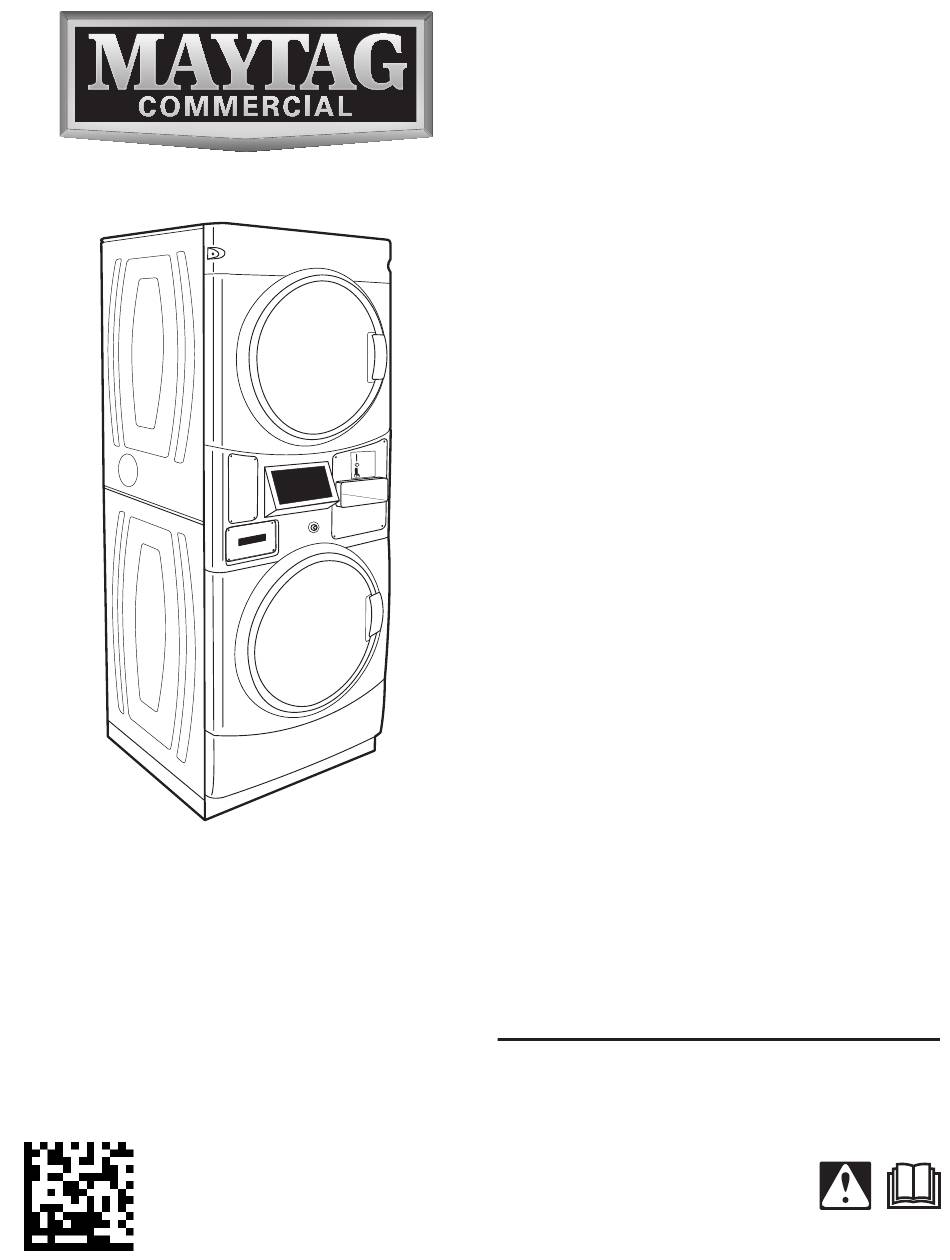

Maytag Commercial MLE22PD Installation Instructions Manual

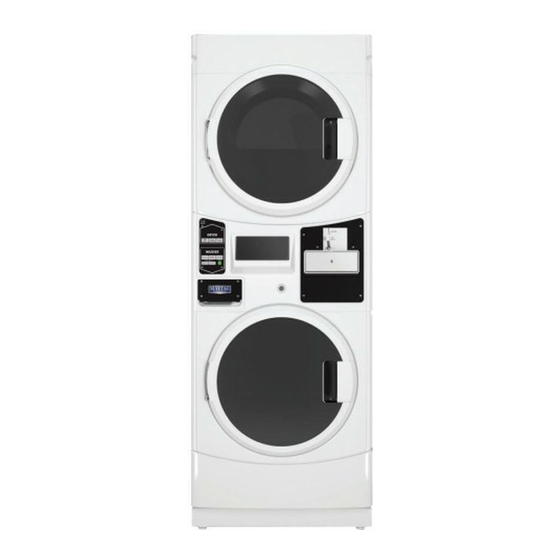

Commercial stacked washer/dryer gas or electric
Hide thumbs Also See for MLE22PD:
Table of Contents

Advertisement

Quick Links

MLE22PD
MLE22PN
MLG22PD
MLG22PN
WARNING:
precautions, including the following:
Read all instructions before using the dryer.
Keep a minimum clearance of 100 mm (4 in.) between
www.maytagcommerciallaundry.com
rear of the dryer and any wall.
INSTALLATION
INSTRUCTIONS
ORIGINAL INSTRUCTIONS
C
OmmeRCIAL
W
G
AS OR
INSTRUCTIONS
D'INSTALLATION
INSTRUCTIONS ORIGINALES
L
-
/
Ave
LINGe
SèChe
à USAGe COmmeRCIAL
à
GAz OU éLeCTRIqUe
INSTRUCCIONES
DE INSTALACIÓN
INSTRUCCIONES ORIGINALES
L
AvAdORA
COmeRCIALeS ApILAdAS
A
GAS O eLéCTRICAS
ISTRUZIONI
D'INSTALLAZIONE
ISTRUZIONI ORIGINALI
L
AvATRICe
COmmeRCIALe A COLONNA
A
To reduce the risk of re, electric shock
S
TACked
/d
ASheR
RyeR
e
LeCTRIC
-
LINGe SUpeRpOSéS
/S
eCAdORA
/
ASCIUGATRICe
GAS O eLeTTRICA
IMPORTANT S
W10920982A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MLE22PD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Maytag Commercial MLE22PD

Summary of Contents for Maytag Commercial MLE22PD

  • Page 1 à GAz OU éLeCTRIqUe INSTRUCCIONES DE INSTALACIÓN INSTRUCCIONES ORIGINALES AvAdORA eCAdORA COmeRCIALeS ApILAdAS GAS O eLéCTRICAS ISTRUZIONI D’INSTALLAZIONE MLE22PD MLE22PN ISTRUZIONI ORIGINALI MLG22PD MLG22PN AvATRICe ASCIUGATRICe COmmeRCIALe A COLONNA GAS O eLeTTRICA IMPORTANT S WARNING: To reduce the risk of re, electric shock precautions, including the following: Read all instructions before using the dryer.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS ÍNDICE Page Página Stacked Washer/Dryer Safety ..........3 Seguridad de la lavadora/secadora apiladas ...... 74 Stacked Washer/Dryer Disposal ..........6 Eliminación de la lavadora/secadora apiladas ....77 Tools & Parts .................. 7 Herramientas y piezas ..............78 Alternate Parts and Accessories ..........

  • Page 3: Stacked Washer/Dryer Safety

    STACKED WASHER/DRYER SAFETY n It is recommended that the owner post, in a prominent location, instructions for the customer’s use in the event the customer smells gas. This information should be obtained from your gas supplier. n Post the following warning in a prominent location. FOR yOUR SAFeTy 1.
  • Page 4 STACKED WASHER/DRYER SAFETY IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING: To reduce the risk of re, electric shock, or injury to persons when using the dryer, follow WARNING: To reduce the risk of fire, electric shock, or injury to persons when using the washer/ dryer, follow basic precautions, including the following: ecautions, including the following: or spotted with petrol, dry-cleaning solvents,...
  • Page 5 STACKED WASHER/DRYER SAFETY n Do not allow children to play on or in n Under certain conditions, hydrogen gas the washer/dryer. Close supervision of may be produced in a hot water system that children is necessary when the washer/ has not been used for 2 weeks or more. dryer is used near children.

  • Page 6: Stacked Washer/Dryer Disposal

    STACKED WASHER/DRYER SAFETY n Keep area around the exhaust opening n See “Electrical Requirements” section for and adjacent surrounding areas free from earthing instructions. the accumulation of lint, dust, and dirt. n Adequate ventilation has to be provided to n Ventilation openings in the base shall not avoid the back-flow of gases into the room be obstructed by a carpet or similar object.

  • Page 7: Tools & Parts

    TOOLS & PARTS Tools Needed: 203 mm (8") 203 mm (8") or 254 mm (10") Flat-Blade Screwdriver Phillips Screwdriver or 254 mm (10") Adjustable Wrench Pipe Wrench that opens to 25 mm (1") Torx T-20 Security 25 mm (1") Hex-Head 8 mm (5/16") Socket Wrench Pliers †...

  • Page 8: Alternate Parts And Accessories

    ALTERNATE PARTS AND ACCESSORIES Alternate Parts Your installation may require additional parts. If you are interested in purchasing one of the items listed here, contact your authorised Maytag distributor. If You Have You Will Need to Buy Overhead sewer Standard 76 L (20 gal.) 990 mm (39") tall drain tub or utility sink, sump pump and connectors (available from local plumbing suppliers)

  • Page 9: Dimensions/Clearances

    DIMENSIONS/CLEARANCES Dimensions Front View Side View Back View Clearances Side Clearances Back/Top Clearances...

  • Page 10: Stacked Washer/Gas Dryer Installation Requirements

    STACKED WASHER/GAS DRYER INSTALLATION REQUIREMENTS (AUSTRALIA AND NEW ZEALAND – FOR FULL DETAILS OF INSTALLATION REQUIREMENTS REFER TO AS/NZS 5601.1 – GAS INSTALLATIONS) Stacked Washer/Gas Dryer Location Stacked washer/gas dryer installation clearances n The location must be large enough to allow the washer and dryer doors to be fully opened.
  • Page 11 STACKED WASHER/GAS DRYER INSTALLATION REQUIREMENTS Stacked Washer/Gas Dryer Electrical Requirements EARTHING INSTRUCTIONS n For an earthed cord-connected dryer: This dryer must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of electric shock by providing a path of least resistance for electric current.
  • Page 12 STACKED WASHER/GAS DRYER INSTALLATION REQUIREMENTS Stacked Washer/Gas Dryer Gas Supply Requirements Natural gas (France/Belgium): This dryer is also certified for France/Belgium for use with G20/ G25 gases (20 mbar/25 mbar) with appropriate conversion. No attempt should be made to convert this appliance from the gas specified on the gas rating label for use with a different gas without consulting the serving gas supplier.

  • Page 13: Stacked Washer/Electric Dryer Installation Requirements

    STACKED WASHER/ELECTRIC DRYER INSTALLATION REQUIREMENTS Stacked Washer/Electric Dryer Location Stacked washer/electric dryer installation clearances n The location must be large enough to allow the washer and dryer doors to be fully opened. n Additional spacing should be considered for ease of installation and servicing.
  • Page 14 STACKED WASHER/ELECTRIC DRYER INSTALLATION REQUIREMENTS Stacked Washer/Electric Dryer Electrical Requirements This washer/dryer is supplied without an electric cord and plug. It must be connected by a competent electrician to a single-phase This is 3-wire appliance which must be earthed. electricity supply at the voltage shown on the dataplate, using a suitable fixed wiring installation in accordance with local and national wiring regulations.

  • Page 15: Dryer Venting Requirements

    DRYER VENTING REQUIREMENTS Rigid metal vent: n Recommended for best drying performance and to avoid crushing and kinking. Flexible metal vent: (Acceptable only if accessible to clean) n Must be fully extended and supported in final dryer location. n Remove excess to avoid sagging and kinking that may result in reduced airflow and poor performance.
  • Page 16 DRYER VENTING REQUIREMENTS (IN AUSTRALIA AND NEW ZEALAND, REFER TO AS/NZS 5601.1 – GAS INSTALLATIONS) Vent Hoods 102 mm (4") Diameter Exhaust Hoods Exhaust hood must be at least 305 mm (12") from the ground or any object that may be in the path of the exhaust (such as flowers, rocks, bushes, or snow).

  • Page 17: Dryer Gas Supply Requirements

    DRYER VENTING REQUIREMENTS (IN AUSTRALIA AND NEW ZEALAND, REFER TO AS/NZS 5601.1 – GAS INSTALLATIONS) If an Exhaust Hood Cannot be Used Multiple Dryer Venting The outside end of main vent should have a sweep elbow directed A main vent can be used for venting a group of dryers. The main downward.

  • Page 18: Installing Stacked Washer/Dryer

    INSTALLING STACKED WASHER/DRYER Remove Transport System NOTE: Slide washer/dryer onto cardboard or hardboard before 4. Models with separate washer power cords: Push the power moving to avoid damaging floor covering. cord plug into the opening on the right side of the rear panel and pull the power cord through the opening on the left side of the rear panel and close holes with the attached cap.
  • Page 19 INSTALLING STACKED WASHER/DRYER Connect Inlet Hoses Insert new hose washers (supplied) into each end of the inlet Connect Inlet Hoses to Washer hoses. Firmly seat the washers in the couplings. 1. Attach the cold water hose to the washer’s cold water inlet valve.
  • Page 20 INSTALLING STACKED WASHER/DRYER Route Drain Hose Proper routing of the drain hose avoids damage to your floor due 4. The washer drain system can be installed using a floor drain, to water leakage. Read and follow these instructions. wall standpipe, floor standpipe, or laundry tub. Remove drain hose from the washer drum Laundry tub drain or standpipe drain 1.

  • Page 21: Washer Drain System

    WASHER DRAIN SYSTEM Laundry tub drain system The washer can be installed using the standpipe drain system (floor or wall), the laundry tub drain system, or the floor drain The laundry tub needs a minimum 76 L (20 gal.) capacity. system.

  • Page 22: Leveling

    LEVELING Leveling Stacked Washer/Dryer Leveling your washer/dryer properly reduces excess noise and 3. If washer/dryer is not level, use a 14 mm or 9/16" open- vibration. end or adjustable wrench to turn jam nuts clockwise (as viewed from above) on feet until they are about 13 mm (1/2") from the washer/dryer cabinet.

  • Page 23: Complete Installation

    COMPLETE INSTALLATION 8. Check dryer operation. Using a full heat cycle, let the dryer run 1. Check the electrical requirements. Be sure that you have the for at least 5 minutes. Dryer will stop when time is used up. correct electrical supply and the recommended earthing method. See “Electrical Requirements.
  • Page 24 REVERSING DRYER DOOR SWING (OPTIONAL) Reverse Hinge 4. Lift the inner door assembly off outer door assembly. 1. Use a small flat-blade screwdriver to remove the two plug strips from the inner door. Slide the head of the screwdriver under the plugs, without scratching the inner door surface, and lift up the strip.
  • Page 25 REVERSING DRYER DOOR SWING (OPTIONAL) Replace the Door Assembly 2. Remove the strike using a Phillips screwdriver. 1. Place the inner door assembly inside the outer door assembly. 3. Insert strike on the opposite side. 2. Reassemble the inner and outer door assemblies with the six screws.

  • Page 26: Stacked Washer/Dryer Maintenance Instructions

    STACKED WASHER/DRYER MAINTENANCE INSTRUCTIONS Washer To clean washer interior: Cleaning the Door Seal/Bellow 1. Open the washer door and remove any clothing or items from 1. Open the washer door and remove any clothing or items from the washer. the washer. 2.

  • Page 27: If You Need Assistance

    STACKED WASHER/DRYER MAINTENANCE INSTRUCTIONS Washer Dryer Always do the following to maintain washer Maintenance instructions: freshness: n Clean lint screen before and after each cycle. n Use only HE (High Efficiency) detergent. n Removing accumulated lint: n Leave the door slightly open after each cycle to allow for better From inside the dryer cabinet: ventilation and drying of washer interior.

  • Page 28: Technical Specifications - Gas Dryer

    TECHNICAL SPECIFICATIONS – GAS DRYER 220-240V~50Hz 1ph 10A max. IPX4 Clothes capacity: 9.0 kg max. Sound pressure level, LpA: 58 dB(A) (uncertainty, Kpa: +/-10 dB(A)) Total mass: 174 kg max. Factory set for NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW Country: CH, CZ, CY, ES, GB, GR, CY, CZ, DK, EE, FI, GR, HR,...
  • Page 29 TECHNICAL SPECIFICATIONS – GAS DRYER Factory set for NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW Country: DE, LU, PL European Gas Category: Gas Flow Rate: 0.562703 m Supply Pressure (G20): 20 mbar Factory Adjusted Pressure (G20): 7.4 mbar Factory set for Australia/New Zealand NATURAL GAS: Injector size: 2.2 mm Heat input gross: 5.9 kW Country:...

  • Page 30: Electronic Control Setup Instructions

    ELECTRONIC CONTROL SETUP INSTRUCTIONS Washer Control Dryer Control General Washer/Dryer User Information NOTE: After the washer/dryer has been installed and plugged in, the display will show “0 MINUTES” on the washer and dryer SCROLLING “OUT OF ORDER” MESSAGE, FOLLOWED BY A portions of the display.
  • Page 31 ELECTRONIC CONTROL SETUP INSTRUCTIONS WARM START (after power failure) – A few seconds after DEBIT CARD READY – This washer/dryer is debit card ready. power is restored, if a cycle was in progress at the time of the It will accept a variety of debit card systems, but does NOT power failure, “RESELECT CYCLE”...
  • Page 32 ELECTRONIC CONTROL SETUP INSTRUCTIONS Start Operating Set-up 8 00 TYPE OF DRYER PRICING (DRYER) Washer/dryers are preset at the factory and do not require any 8 00 Fixed cycle with top off. For detailed programming. However, if you want to change the settings, follow description, see “General User Information.
  • Page 33 ELECTRONIC CONTROL SETUP INSTRUCTIONS OPTIONS TO USE IF SPECIAL PRICING IS SELECTED 7.00 SPECIAL PRICE START HOUR (WASHER) (DRYER): NOTE: Uses military time – 24 hr. clock SPECIAL CYCLE PRICE (DRYER) 7.00 This is the start hour; 0-23 hours. Select START HOUR by pressing POWERWASH 3 06 Represents the number of quarters (Coin 1)
  • Page 34 ELECTRONIC CONTROL SETUP INSTRUCTIONS C.20 VALUE OF COIN 2 (WASHER) L.00 PRICE SUPPRESSION OPTION (WASHER) C.20 PD MODELS: This represents the value of coin This option causes the customer display to 2 in number of nickles. 20 = $1.00. Increase show “ADD”...
  • Page 35 ELECTRONIC CONTROL SETUP INSTRUCTIONS If cycle counter (9 0C) is selected, the following is true: A3.02 Normal Cycle Settings allows the owner 1 00 Cycles in HUNDREDS. 1 02 = 200 to select the cycle default options of Water Temperature, Prewash, and Extra Rinse. 2 00 Cycles in ONES.

  • Page 36: Warranty

    MAYTAG COMMERCIAL LAUNDRY LIMITED WARRANTY ® MLE22PDAYW, MLE22PDAZW, MLE22PRAYW, MLE22PRAZW, MLE22PDAGW, MLE22PNAGW, MLG22PDAWW, MLG22PRAWW, MLG22PDAGW, MLG22PNAGW IF YOU NEED SERVICE: Contact your authorized Maytag ® Commercial Laundry distributor. To locate your authorized Maytag ® Commercial Laundry distributor, visit www.MaytagCommercialLaundry.com. For written correspondence: Maytag Commercial Laundry Service Department ®...
