Attach the rack-mounting rail to the front of the rack.
4
To do this:
Insert two screws through aligned openings in the
a
front plate, rack and rack-mounting rail as shown
in Figure 4.
Tighten the screws with a suitable screwdriver.
b

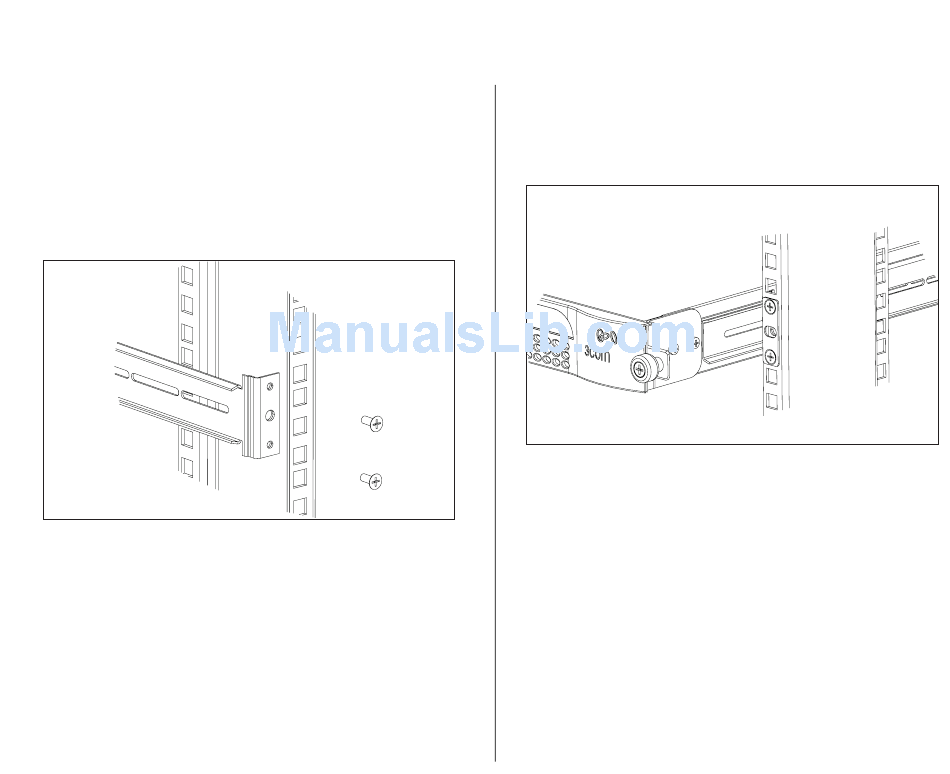

Figure 4 Fitting a Rack-Mounting Rail to the Front of the Rack
Slide the rack-mounting brackets on the sides of the
5
Webcache into the rack-mounting rails.
Rack-Mounting the Webcache
Secure the front of the Webcache to the rack with the
6
captive thumbscrews, as shown in Figure 5. Screw the
thumbscrews into rack-nuts (not supplied).
Figure 5 Attaching the Webcache to the Rack
Ensure that the ventilation holes in the Webcache are
7
not obstructed.
