Quax Basic Baby 55619-M2-WB Series Manual page 24

55619-M2-WBxxx
Bad- en luiermeubel Baignoire et table à langer
Wickel- und Bademöbel Bath and diaper cabinet

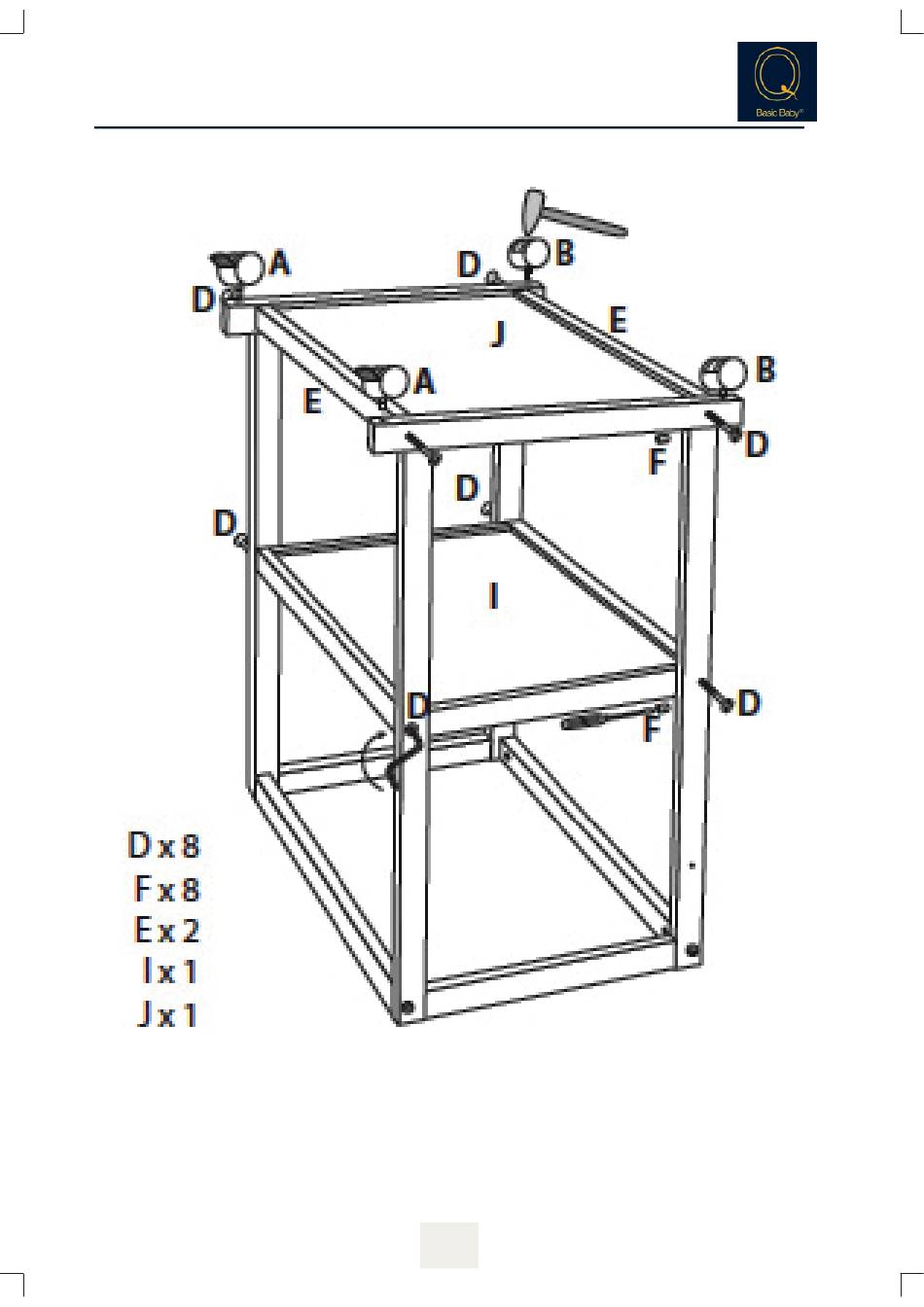

Step 2 : Use the parts of step 1, the upper shelf I, the lower shelf J, the lower crossbars E, eight eccentrics F,
eight bolts D and the four wheels A (with brake) and B (without brake)
Push four eccentrics (F) into the provided drillings on the inside the upper shelf (I). Insert the shelf between the
frames. Push four bolts (D) in the holes in the middle of the frames and do not fully teighten the eccentrics. Slide
the lower shelf (J) between the lower crossbars (E) and push four eccentrics (F) into the drillings on the inside of
the crossbars. Insert the shelf between the frames. Push four bolts (D) in the holes at the bottom of the frames
and teighten all of the eccentrics. Insert the wheels (A and B) in the provided drillings at the bottom of the frames.
info@quax.eu
24
