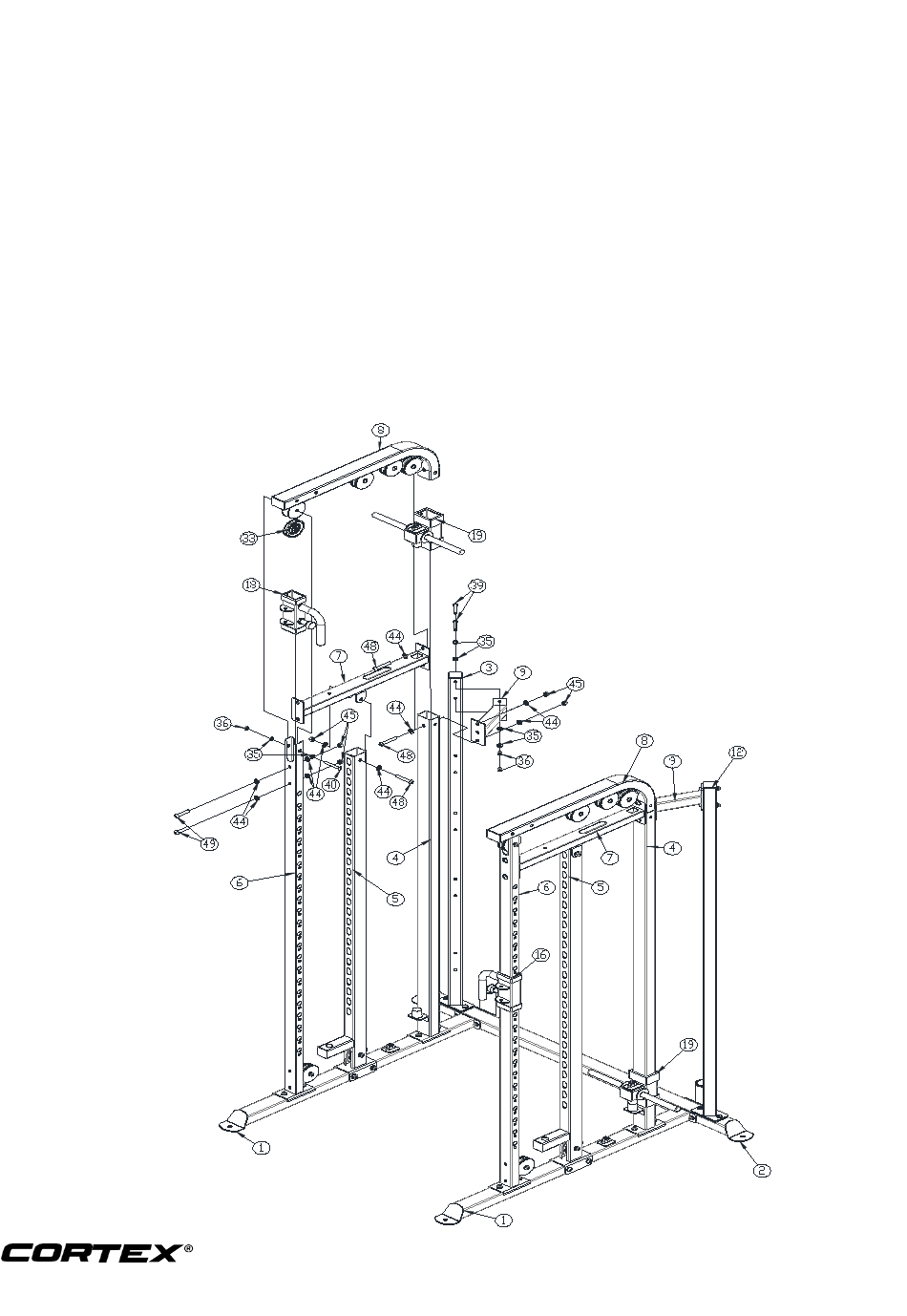

STEP 3
1. Attach Beam frame (7) to Front adjusting frame (6), Rear adjusting frame (5) and The
sliding frame (4), using Screw M12x60 (49), Flat washer Ф12 (44) and Lock nut M12
(45),Screw M12x75 (48).
2. Attach Short connection frame (9) to The sliding frame (4) and Right rear stand (3), using
Screw M12x75 (48), Flat washer Ф12 (44) and Lock nut M12 (45); Screw M10x70 (39), Flat
washer Ф10 (35), Lock nut M10 (36).
3. Attach Fixed rack (8) to Front adjusting frame (6) and Short connection frame (9), using
Screw M10x75 (40), Flat washer Ф10 (35), Lock nut M10 (36) and Pulley Φ90 (33); Screw
M12x75 (48), Flat washer Ф12 (44) and Lock nut M12 (45).
4. The same as Right rear stand (12).
