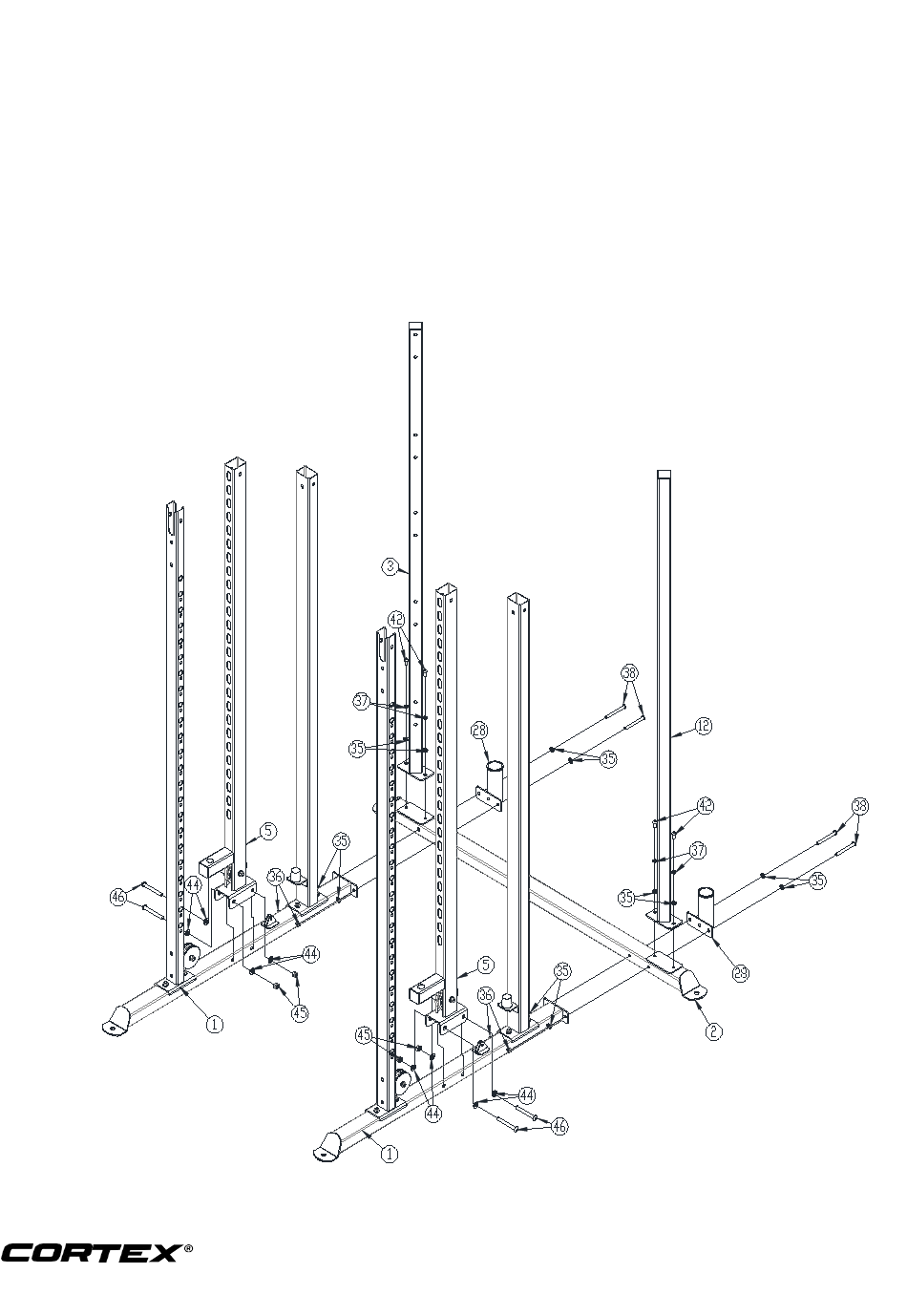

STEP 2
1. Attach Floor rack (1) to Rear floor rack (2) and The fixed frame (28), Using Screw M10x95
(38), Flat washer Ф10 (35) and Lock nut M10 (36).
2. Attach Left rear stand (12) to Rear floor rack (2), using Screw M10x20 (42), Flat washer
Ф10 (35) and Spring washer Ф10 (37). The same as Right rear stand (3).
3. Attach Rear adjusting frame (5) to Floor rack (1), using Screw M12x95 (46), Flat washer
Ф12 (44) and Lock nut M12 (45).
GS10 Multi Station
7
