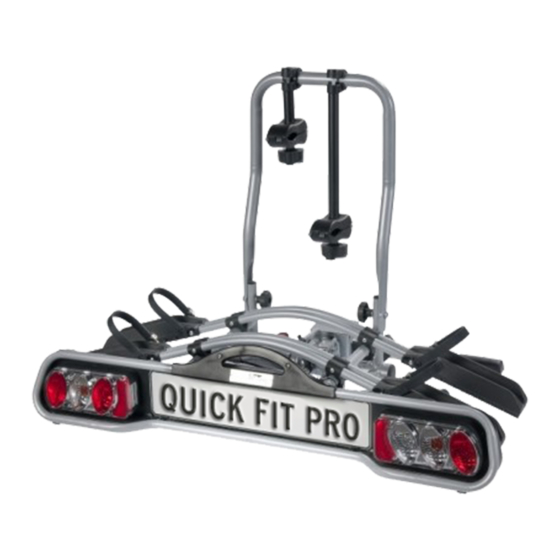

- Page 1 QUICK FIT PRO QUICK FIT PRO 350-20106...
- Page 2 Table of contents Foreword.....................................3 Obligations regarding these mounting instructions......................3 Intended Use..................................3 Mounting of the registration plate on the bicycle carrier..................... 6 Mounting of the bracket on the bicycle carrier........................6 Mounting the bicycle carrier on the trailer coupling......................7 Mounting bicycles................................
- Page 3 Personal injury or material damage possible: Instructions under the heading warn of possibly impending danger. The QUICK FIT PRO bicycle carrier is used to transport a Failure to avoid such danger may result in max. of two bicycles. It must be mounted on trailer slight or minor injuries.
- Page 4 Material:....mind. Stahl St52 oder Grauguss GG52 F = 2 carriage bolts D value:............... ≥ 7,6 kN G = 2 washers Observe the instructions from the coupling manufacturer. Carrier:............QUICK FIT PRO Item no. QUICK FIT PRO:..........350-20106 Material:..............Steel Net weight:: for two bicycles ............17 kg with extension for third bicycle.........
- Page 5 Safety instructions Follow the mounting instructions exactly. Failure to follow Personal injury or material damage possible the instructions may lead to personal injury and property due to an unsecured/incorrectly mounted damage. bicycle carrier. If you are not sure about correct mounting, ask your dealer The moving parts of the bicycle carrier or the manufacturer for further information.
- Page 6 Mounting Personal injury or material damage possible due to loss of the bicycles while driving. A loose connection between the carrier and bracket can lead to a loosening of the connection and loss of the bicycles. • Check the bicycle carrier for secure and complete mounting of the bracket on the carrier before each trip.
- Page 7 Mounting • Park your vehicle on a level surface • Apply the handbrake. Personal injury or material damage possible due to a damaged bicycle carrier. Damage of the carrier, e.g. by bent parts, cracks or scratches, prevents the safe operation of the carrier. •...
- Page 8 Mounting Personal injury or material damage possible due to an unsecured bicycle carrier. If the lever is not secured by locking, the bicycle carrier could become detached from the vehicle while driving. • Lock the bicycle carrier. • Check that you have locked the lever and removed the key.
- Page 9 Mount bicycles Personal injury or material damage possible due to flying parts. Improperly tightened parts on the bicycles can become loose while driving. • Remove all parts not firmly attached to the bicycle, such as bicycle pumps, panniers, navigation devices or batteries. In order to improve the handling of your vehicle, mount the heavier bicycle first.
- Page 10 Mount bicycles Personal injury or material damage due to loss of the bicycles. Driving without using the safety straps can lead to accidents. • Before the start of every trip, check correct and secure mounting of the straps around the bicycles and the U-bracket of the carrier (See Step 6, Section "Mounting bicycles").
- Page 11 Tilting the bicycle carrier Personal injury or material damage due to sudden folding down of the carrier. Body parts or objects under or in front of the carrier when it is folded down may be crushed. • Make sure that there is nothing beneath the carrier.
- Page 12 Cleaning The bicycle carrier can be cleaned with a mild detergent, with warm water and/or a soft cloth. First remove any coarse dirt and dust. Do no use any solvents or similar cleaning agentssince these may damage the bicycle carrier. Leave the bicycle carrier to dry on its own.
- Page 13 Maintenance / Disposal / Contact Before each trip, check the bicycle carrier for wear. Defective metal parts and tightening straps in particular must be replaced. Please refer to our customer service for the replacement of parts. Any modification of original parts and materials or the construction of bicycle carrier can adversely affect its safety and serviceability.
- Page 14 Spare parts overview - Exploded drawing...
