Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
1-888-KEITHLEY
www.keithley.com
Overview
WARNING
The procedures contained in this document are intended for use by qualified service
personnel only. Do not perform these procedures unless qualified to do so. Failure to
recognize and observe normal safety precautions could result in personal injury or death.
The Keithley Instruments Model 2600-FIX-TRX Grounded Phoenix-to-Triax Cable Adapter (see
combination dual triax connector and low-noise chassis ground banana plug connector that provides easy
connection pathways between the rear-panel terminal blocks of Models 2601/2602/2611/2612 System
®
SourceMeter
instruments (both Series 2600 and 2600A) and Models 8101-4TRX and LR-8028 test fixtures. These
pathways are described in

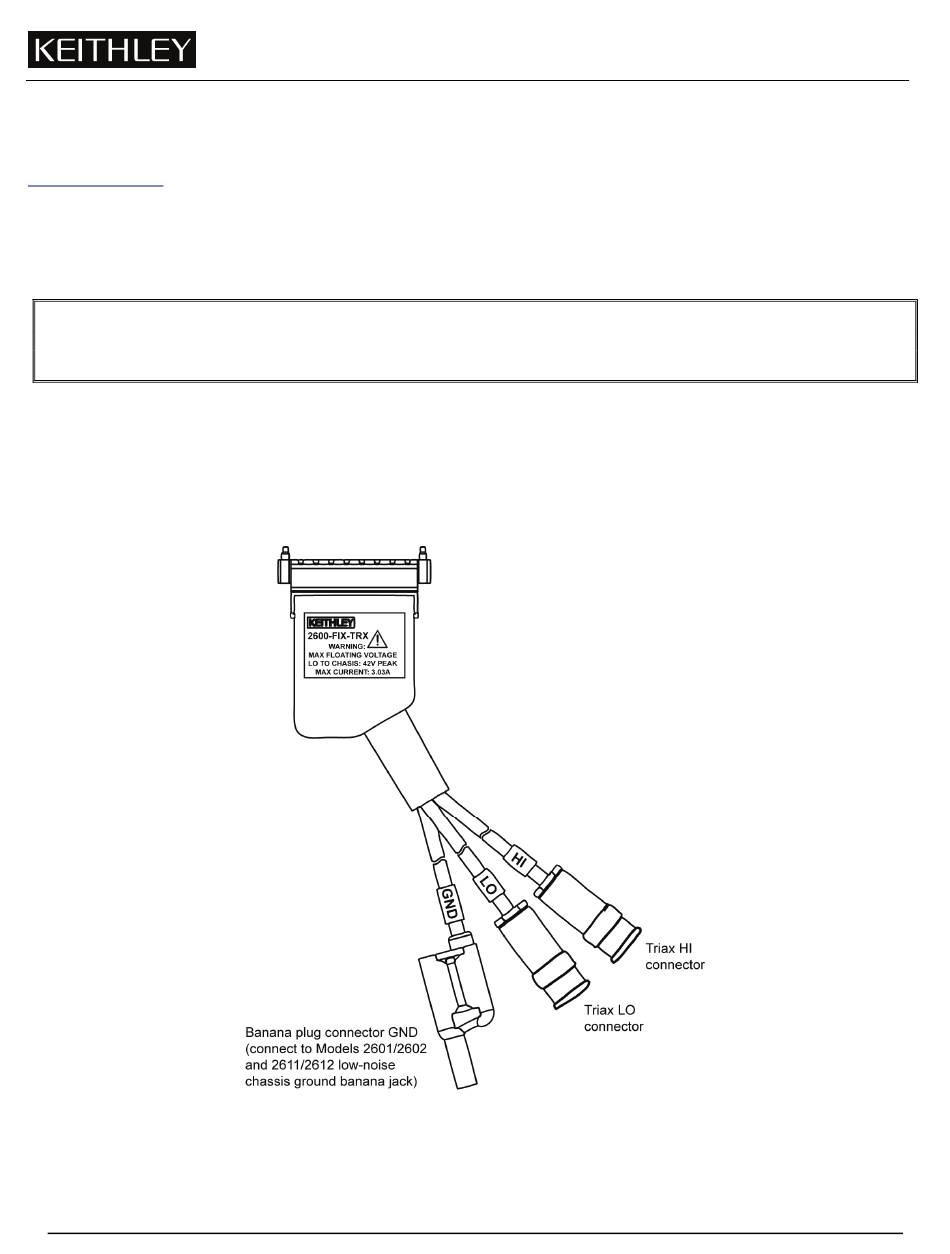

Figure 1: Model 2600-FIX-TRX Grounded Phoenix-to-Triax Cable Adapter
PA-1004 Rev. A / June 2009
Grounded Phoenix-to-Triax Cable Adapter
Table 1.
Model 2600-FIX-TRX
Figure
1) is a
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Keithley 2600-FIX-TRX
Summary of Contents for Keithley 2600-FIX-TRX
- Page 1 Do not perform these procedures unless qualified to do so. Failure to recognize and observe normal safety precautions could result in personal injury or death. The Keithley Instruments Model 2600-FIX-TRX Grounded Phoenix-to-Triax Cable Adapter (see Figure 1) is a...
- Page 2 Series 2600A-FIX-TRX Grounded Phoenix-to-Triax Cable Adapter Keithley Instruments, Inc. 28775 Aurora Road Cleveland, Ohio 44139 1-888-KEITHLEY www.keithley.com Connections This section identifies the connections that are made within the cable adapter and how to connect it between the instruments and fixtures.
- Page 3 Proper use of these cable adapters and fixtures together ensures that the source-measure units used to test a device share a common ground connection, yielding accurate measurements. NOTE The Model 2600-FIX-TRX should not be used for 4-wire measurements because the sense leads are not connected in these connector assemblies. Example test connections...
- Page 4 Keithley Instruments, Inc. 28775 Aurora Road Cleveland, Ohio 44139 1-888-KEITHLEY www.keithley.com Figure 3: MOSFET testing example using four Model 2600-FIX-TRX cable adapters ® For additional connection information, refer to the Series 2600A System SourceMeter Instruments Reference Manual (document number 2600AS-901-01).
- Page 5 Model 2600-FIX-TRX Grounded Phoenix-to-Triax Cable Adapter Keithley Instruments, Inc. 28775 Aurora Road Cleveland, Ohio 44139 1-888-KEITHLEY www.keithley.com Handling Observe the following precautions when handling components: • Wear cotton gloves. • Avoid unnecessary physical contact with the connectors. Cleaning To clean connectors: 1.
