Keithley Instruments, Inc.
28775 Aurora Road
Cleveland, Ohio 44139
(440) 248-0400

Introduction

The Model 2510-CAB Cable Assembly provides for 4-wire signal connections to the INPUT/OUTPUT connector on the rear
panel of the Model 2510 TEC SourceMeter
The cable assembly (Figure 1) consists of 1.5 meters of eight conductor, 18 gauge, non-shielded wire. The wire is terminated
on one end with an 8-pin female Phoenix connector that mates with the INPUT/OUTPUT connector on the Model 2510. The
other end is not terminated.

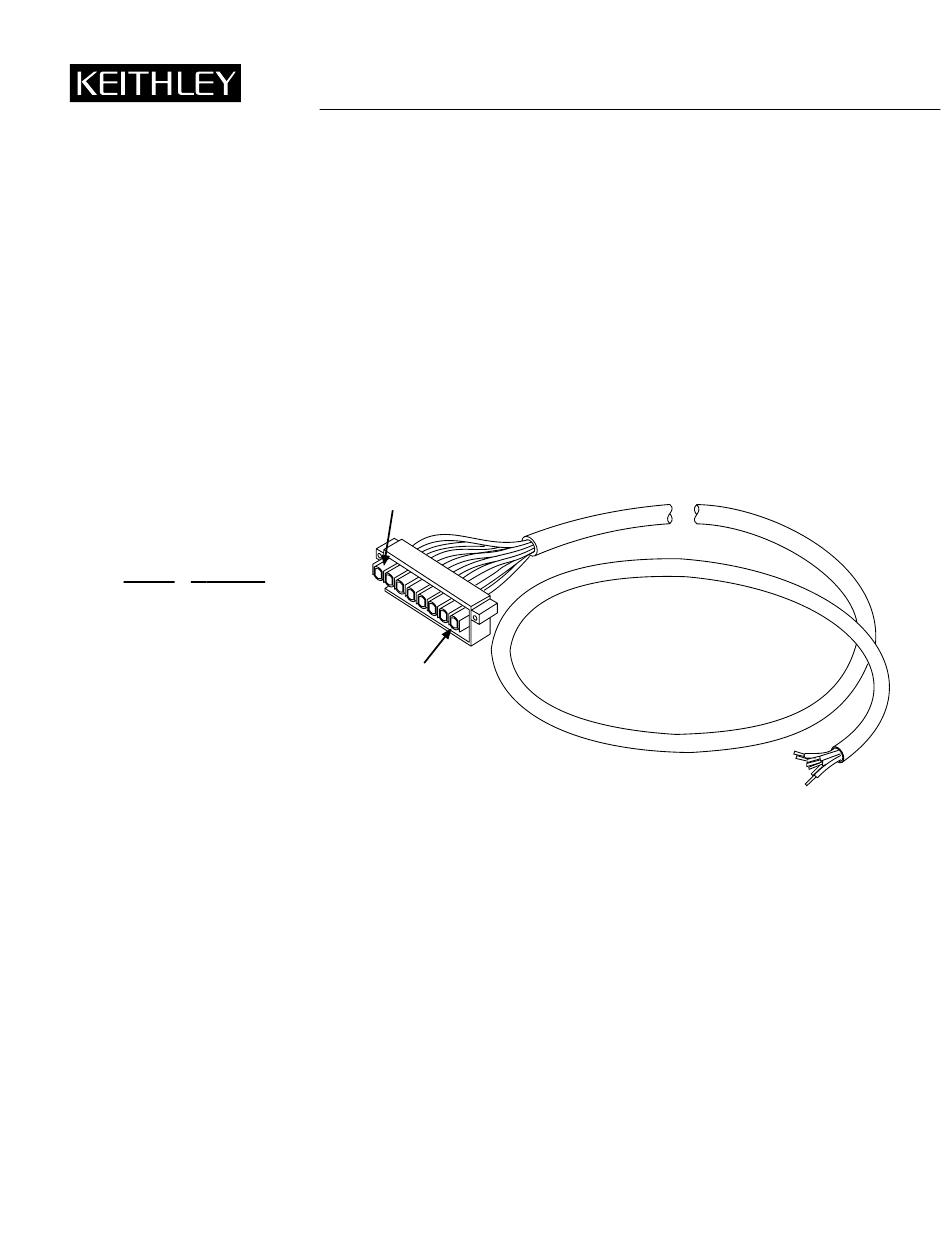

Figure 1
Model 2510-CAB cable assembly
Pin No.
Wire Color
1
White
2
Blue
2
Yellow
4
Red
5
Black
6
Green
7
Brown
8
Orange
Specifications
Operating Temperature Range:
Operating Voltage:
Current Rating:

Safety Precautions

This product is intended for use by qualified personnel who recognize shock hazards and are familiar with the safety pre-
cautions required to avoid possible injury. Read the operating information carefully before using the product.
General Definitions
The types of product users are:
Responsible body is the individual or group responsible for the use and maintenance of equipment, for ensuring that the
equipment is operated within its specifications and operating limits, and for ensuring that operators are adequately trained.
Model 2510-CAB Cable Assembly
®
.
Pin 1
Pin 8
-20˚C to +80˚C
42 V PEAK
5A MAX
Packing List
PA-707 Rev. B / 5-01
