Introduction
The Model 2280-001 Output Mating Connector allows you to make 2-wire and 4-wire sense connections with the
Series 2280 Precision Measurement Power supplies. This document contains information that will help you install
the output mating connector.
Electrical characteristics
• Rating: 300 V AC/DC, 12 A
• Applicable wire size: 24 to 12 AWG
• Insulation withstands voltage: 2000 V AC for 1 minute
• Insulation resistance: ≥ 500 MΩ at 500 V DC
• Screw torque value: 0.5 Nm (4.4 in. lb.)
Parts list

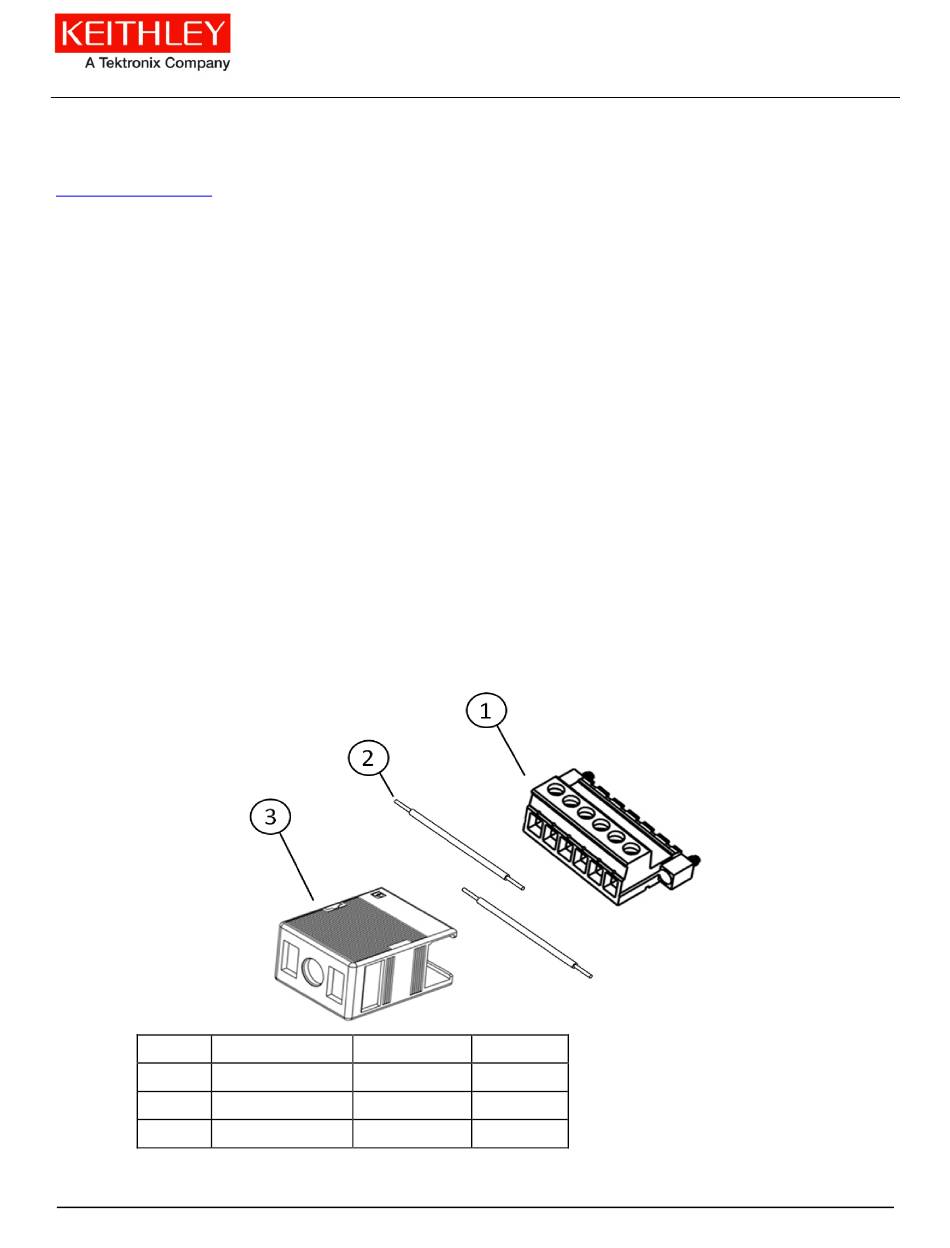

The following figure shows the hardware supplied with this connector; the table below it contains part names,
numbers, and supplied quantities.
Description
1
Plug connector
2
Jumper wire
3
Cable housing
077085600 /June 2014
Model 2280-001 Output Mating Connector
Figure 1: Model 2280-001 Output Mating Connector
Part number
131917500
174656900
380126600
*P077085600*
Installation Instructions
Quantity
1
2
1
1
