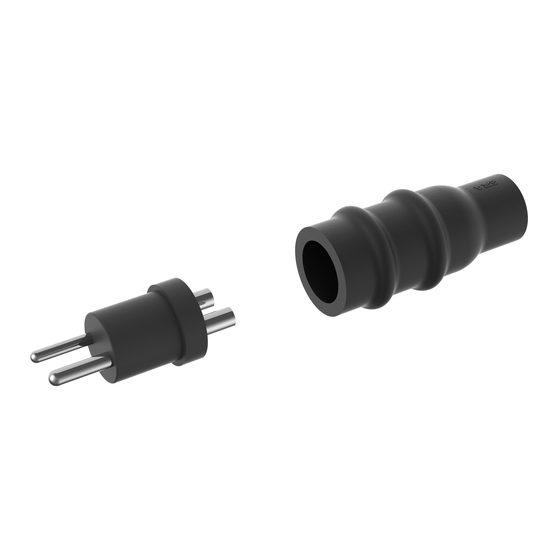

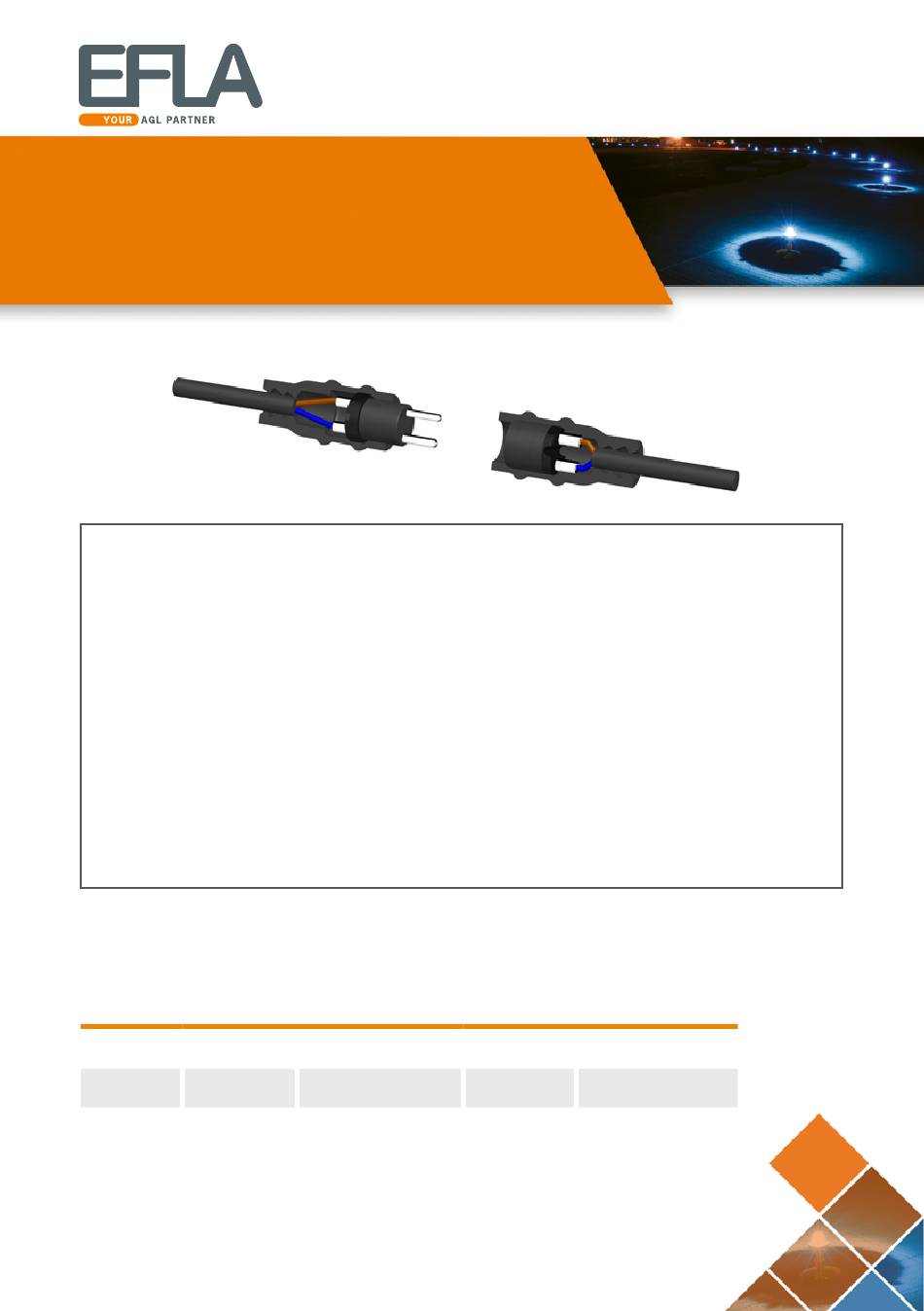

SECONDARY CONNECTOR KIT
KD501- KD502 series
Caution!
•
Only personnel qualifying to work with high voltage equipment and circuits are
allowed to do the installation.
•
Make sure the circuits are disconnected from the voltage supply and correctly
grounded. Never connect or disconnect live circuits. Voltage is lethal.
•
Follow the local instructions for safety precautions or refer to the FAA advisory
circular AC150/5340‐26 (maintenance of Airport visual Aid Facilities). Follow also
Advisory circular AC150/5370‐10 part XI Lighting installations. Always test the
installation according to above mentioned documents and local instructions.
•
Make sure that dimensions of the cable comply with the type of connector used. In
case of any kind of non‐compliance do not proceed with the installation.
•
Check www.efla.net for possible updates of installation instructions.
Dimensional Data
Plug
Receptacle
KD501
KD502
KD501.1
KD502.1
KD501.2
KD502.2
Conductor Size
1.5‐2.5 mm
2
4.0‐6.0 mm
12‐10/8
2
4.0‐6.0 mm
12‐10/8
2
AWG
Cable Diameter
16‐14
8.5‐13.5 mm
11.5‐18.0 mm
8.5‐13.5 mm
Advertisement
Table of Contents
Related Manuals for EFLA KD501 Series
Summary of Contents for EFLA KD501 Series
- Page 1 Make sure that dimensions of the cable comply with the type of connector used. In case of any kind of non‐compliance do not proceed with the installation. • Check www.efla.net for possible updates of installation instructions. Dimensional Data Plug Receptacle...
- Page 2 Contents A. Silicone grease tube B. Body with connecting parts C. Plug or receptacle housing The kit also includes: installation manual and paper towel KD501-series KD502-series 1. Clean approximately 20 cm of the cable end with a cleanser, i.e. spirit or equivalent and let dry.
- Page 3 Measuring Tool KD501-series KD502-series 5. Strip the sheath of a two core cable 20 ±5 5. Strip the sheath of a two core cable mm for plugs (KD501-series). Wires should 13mm for receptacles (KD502-series). Wires be stripped up to 8 ±1 mm. should be stripped up to 8 ±1 mm.
- Page 4 KD501-series KD502-series EFLA is the world’s leading supplier of seamless power and communication products for airfield ground lighting circuits. With more than 30 years experience in the field, it develops, manufactures and sells globally-certified series isolation transformers, connector kits and prefabricated cable leads. The company’s components meet the highest qualifications in materials and electrical design to withstand challenging installation in underground pits and cans and direct underground installation.
