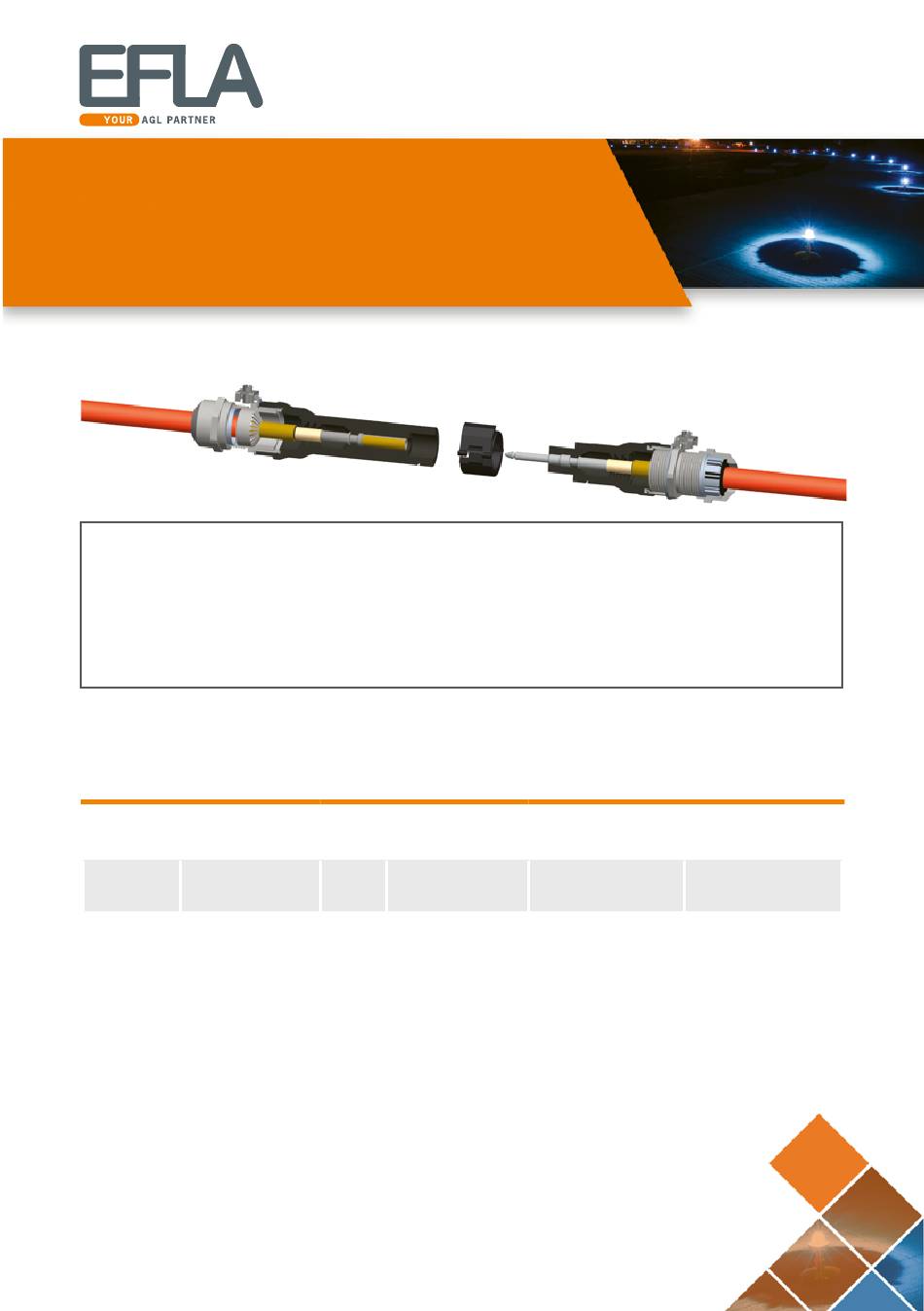

EFLA KDL1 Series Quick Start Manual

PRIMARY CONNECTOR KIT
KDL1-series
Caution!
Only personnel qualified to work with high voltage circuits are allowed to do the installation.
Make sure that the circuits are disconnected from the voltage supply and correctly
grounded. Never work on live circuits. Voltage of primary circuit is lethal. Make sure that
the outer diameter of cable and the diameter of cable insulation are compatible.
Conductor Size
EFLA Type
(mm
KDL1 6
KDL1.6 10*
* 16mm² stranded, ** up to 19 strands
Follow the local instructions for safety precautions or refer to the FAA advisory circular AC
150/5340-26 Maintenance of Airport Visual Aid Facilities. In addition, follow Advisory circular
AC 150/5370-10 Part-XI Lighting Installations. Always test the installation according to above
mentioned documents and local regulations.
Make sure that dimensions of the cable comply with the type of connector used. In case
any kind of non-compliance, do not proceed with the installation. If any damage has
occured to the connectors or cables, do not proceed with the installation.
For more information about the products, please visit us at www.efla.net
Cable Diameter
AWG
) (mm/inch)
2
9.0 – 17.0 mm
8**
0.354 – 0.669"
9.0 – 17.0 mm
6
0.354 – 0.669"
Diameter at Wire Diameter, Length
Insulation
(mm/inch)
7.5 – 13.0 mm 42 mm, 276 mm
0.295 – 0.512" 1.654", 10.886"
7.5 – 13.0 mm 42 mm, 276 mm
0.295 – 0.512" 1.654", 10.866"
of Assembly
(mm/inch)
