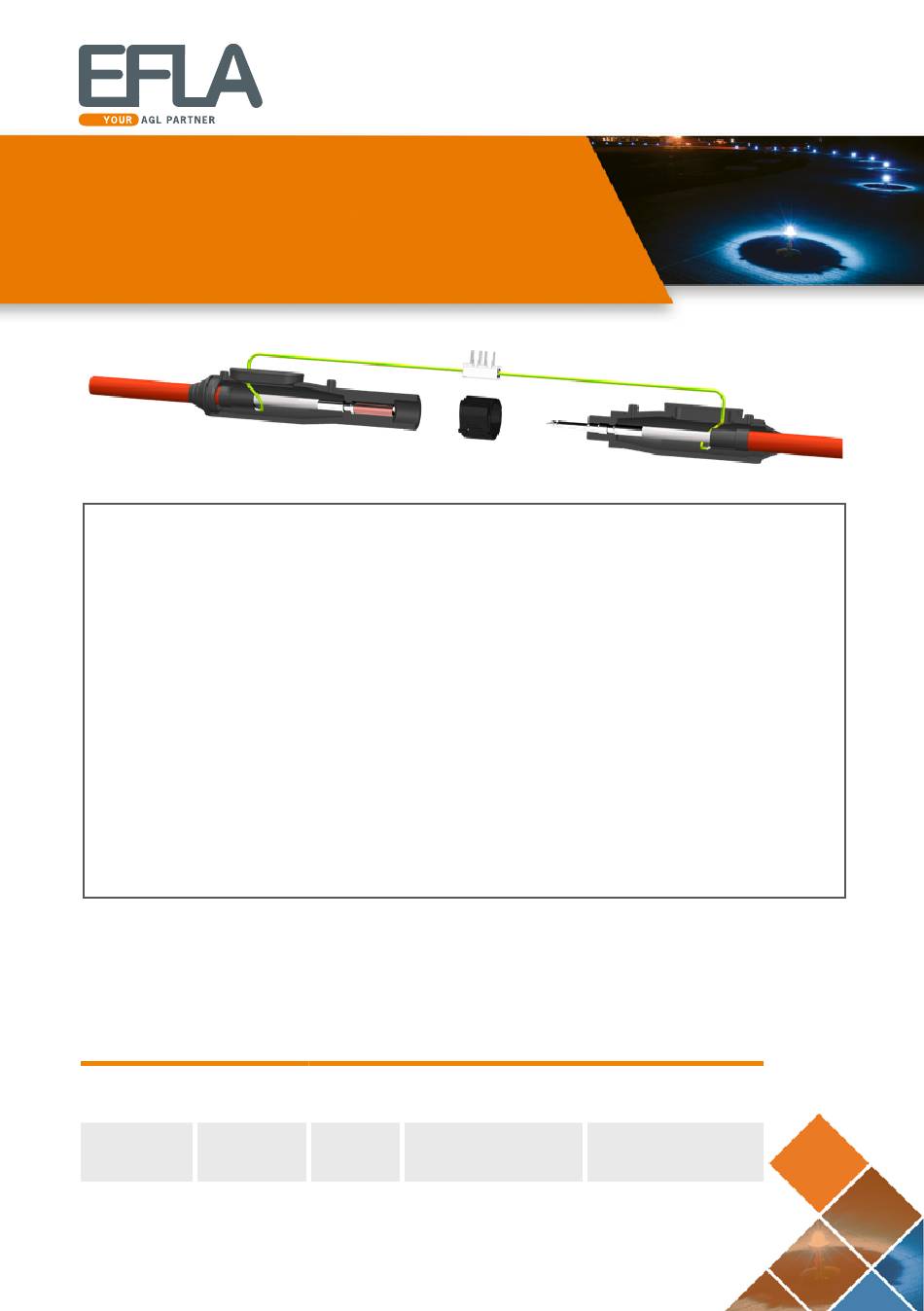

EFLA KDR600 Series Manual

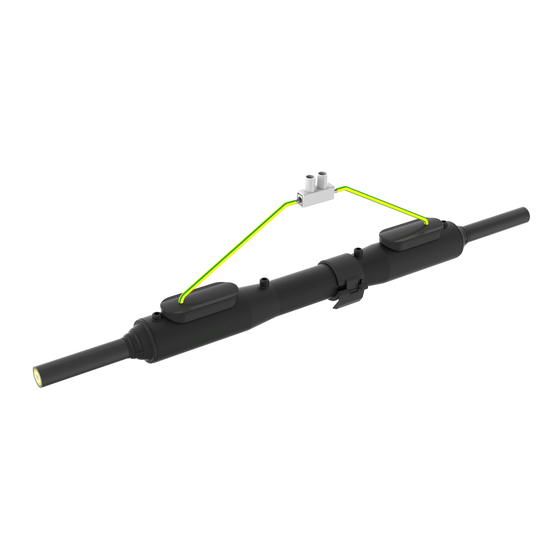

PRIMARY CONNECTOR KIT
KDR600 series
Caution!
• Disconnect voltage supply and ground all circuits. FAA advisory circulars standards:
latest AC150/5340-26 and AC150/5370-10.
• In case of non-compliance, do not install.
• Check that all components are in the plastic bag as per Contents below.
• Read carefully through the Safety Instructions baled on the resin bag and prepare
yourself accordingly.
• Do not open the aluminum bag before Step 11 of these installation instructions.
• In case the resins last date of use is expired or the resin containing aluminum bag is
damaged - Do not use the resin.
• Note: Installation temperature range is +50C to +450C. Stocking temperature range is
+100C to +400C.
• Check www.efla.net for possible updates of installation instructions.
Dimensional Data
EFLA Type Conductor
size [mm
KDR600 6
KDR600.2 10*
*16 mm2 stranded, **up to 19 strands
AWG Cable diameter
] [mm, inch]
2
8** 9.0 – 19.0 mm
0.354 – 0.748"
6 9.0 – 19.0 mm
0.354 – 0.748"
Diameter/Length
of assembly
[mm, inch]
31/270 mm
1.22/10.62"
31/270 mm
1.22/10.62"
