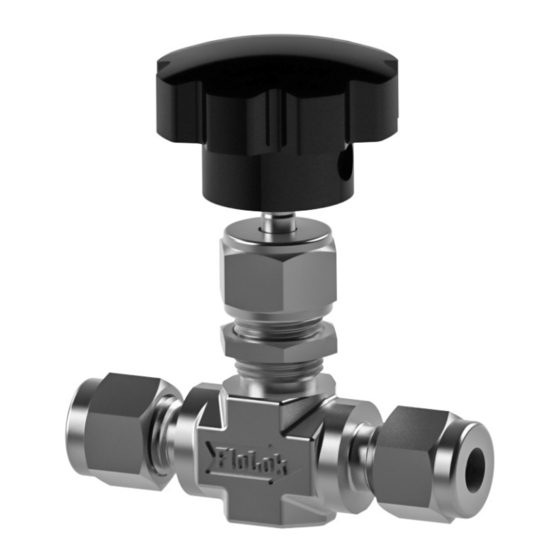

Maintenance Instructions
Packing Rebuild Kit Components:
Belleville Springs (X2)
Disassembly
1. Remove the handle by loosening
the set screw using a 3/32"
Allen wrench.
100, 600, 500 Series Valve
Packing Pusher
Upper Packing
Lower Packing
Packing Support
2. Use a wrench to remove
the packing nut.
Lubricant
(MCD-111 & MCG-130)
Advertisement
Related Manuals for SSP 100 Series
Summary of Contents for SSP 100 Series

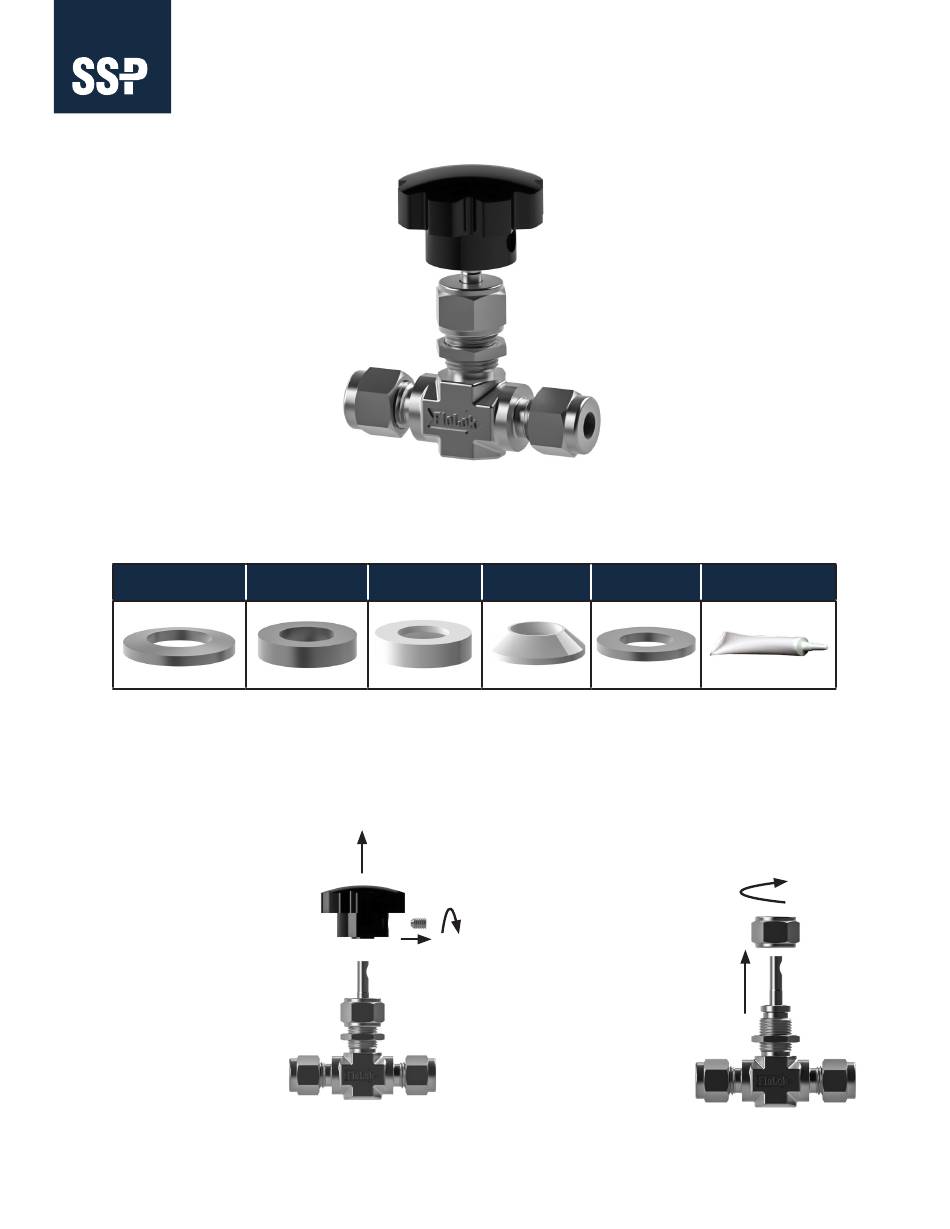

- Page 1 Maintenance Instructions 100, 600, 500 Series Valve Packing Rebuild Kit Components: Lubricant Belleville Springs (X2) Packing Pusher Upper Packing Lower Packing Packing Support (MCD-111 & MCG-130) Disassembly 2. Use a wrench to remove 1. Remove the handle by loosening the packing nut. the set screw using a 3/32”...
- Page 2 4. Turn the stem counter clockwise 3. Slide the Belleville spring to remove the stem and packing washers up over the stem. from the body. Reassembly Taper Surface down 5. The packing consists of the 6. Apply MCG-111 lube over the packing pusher, upper packing, entire upper and lower packing lower packing, and packing...
