Seal Kit
Spring Kit
Maintenance
O-Ring
Instructions
WARNING
If the valve is disconnected from
a system, it must be depressurized,
cycled, and purged.
CAUTION
Care should be taken to not
scratch or damage sealing surfaces.
1.
• 4CP - 3/16 HEX KEY
• 8CP - 3/8 HEX KEY
2.
3.
4. Discard components that will be replaced.
5. Make sure all components are clean.
1. Lubricate the O-Ring and install it on the insert.
(Lubricate with system compatible lubricant)
2.

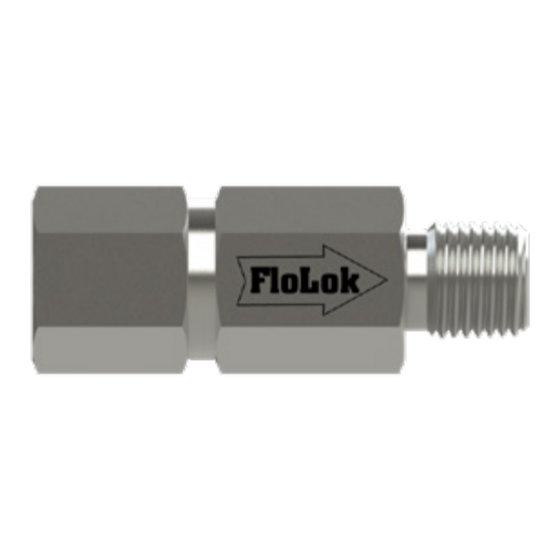

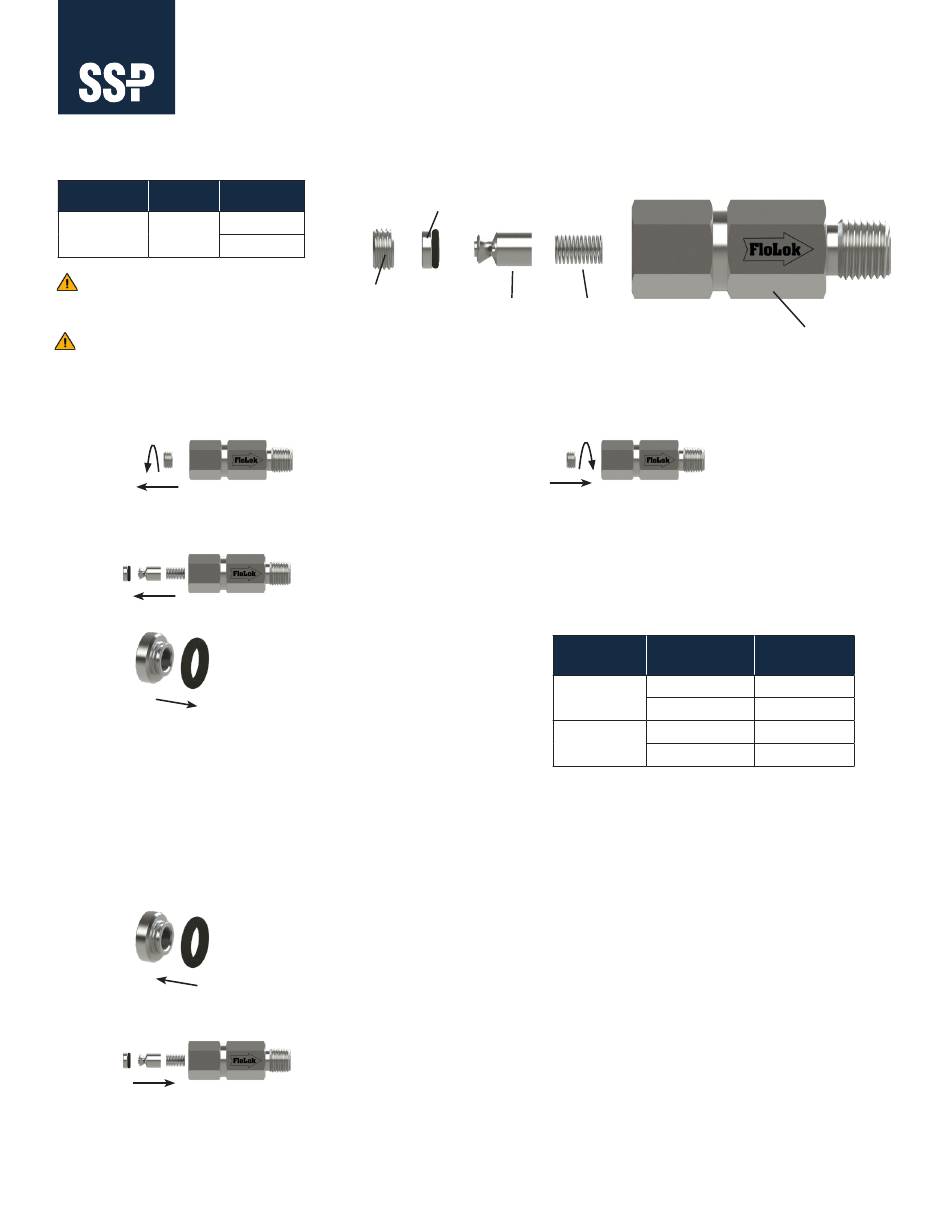

CP Series Check Valve
Maintenance Instructions
Insert with
O-Ring
Spring
Label
Insert
Lock
Screw
Poppet
Spring
3.
4. Tighten the insert lock screw according to the table.
Valve Series
Valve Material
4CP
8CP
5. Test product prior to installation in the system.
6. Attach the new label to the body hex, as necessary.
Body
Torque Value
in·lbs (N·m)
Brass
45 (5.1)
All Other
85 (9.6)
Brass
100 (11.3)
All Other
300 (33.9)
