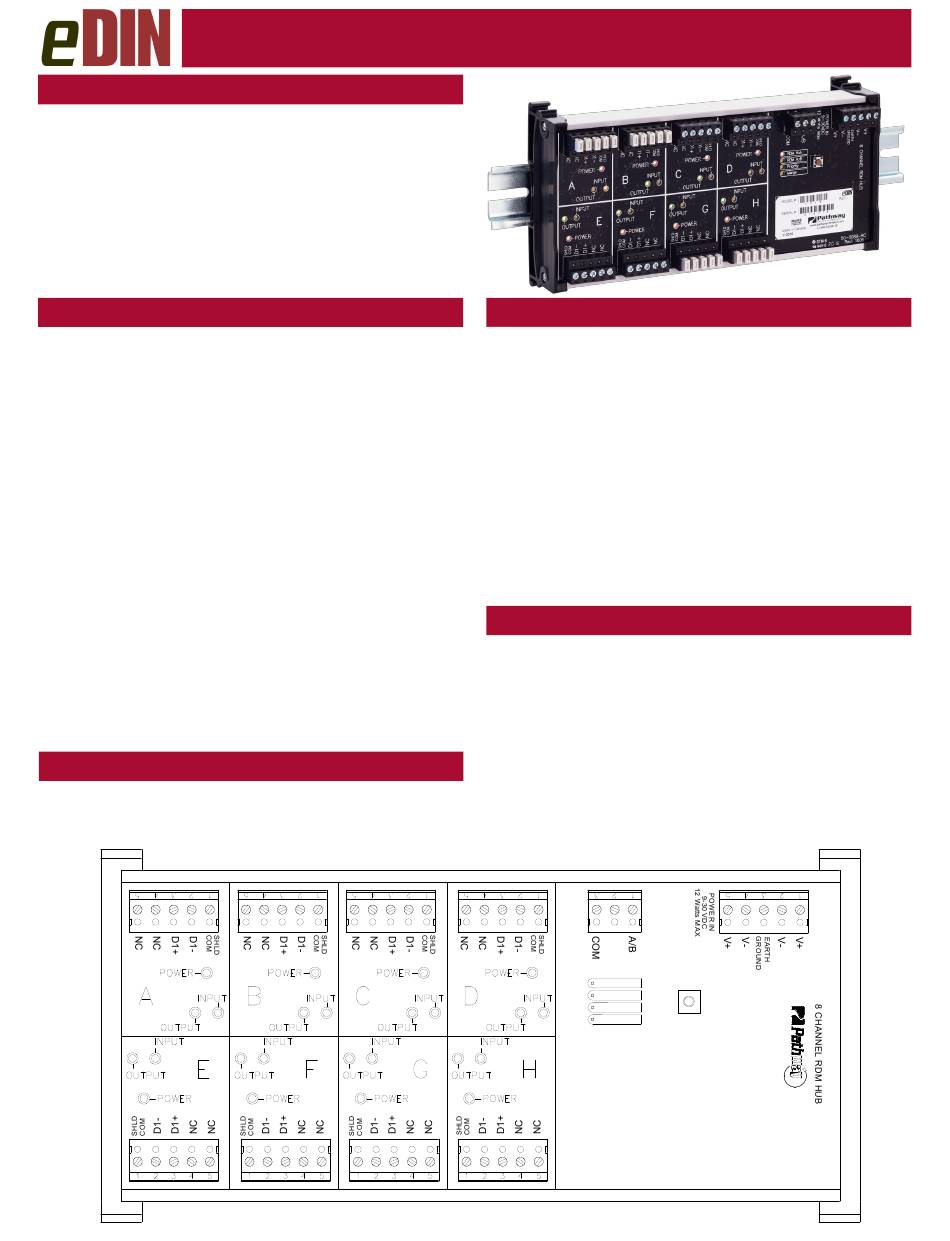

Pathway connectivity solutions 1016 Manual

Model 1016
OVERVIEW
The #1016 eDIN 8-port RDM Hub brings flexibility to
single universe DMX512 distribution systems.
Through the use of automatic DMX512 sensing,
across four operating modes, any port may detect
a roving DMX512 source and act as an input; or
two inputs may be merged together; or the user
may select between inputs; or a priority scheme
may be invoked. The module is RDM discoverable
and configurable, as well as daisy-chainable.
CONNECTIONS
The eDIN RDM Hub features terminal strips that can be
removed from the card to facilitate easy wiring installation
or replacement. Make the following connections, WITH
THE POWER TURNED OFF.
POWER
The RDM Hub will operate on a range of voltages from 9-
30 volts DC. Each eDIN module requires 250mA.
Observe the correct polarity when connecting to V+ and
V-. A second set of terminals are provided as a thru con-
nection to other eDIN modules. The EARTH GND termi-
nal must be connected to the enclosure's chassis or elec-
trical ground terminal to ensure EMC compliance.
DMX512
DMX512 (DMX) connections consist of a shield and data
pair. DMX usually comes from a lighting console, Path-
®
port gateway, architectural controller or another #1016.
Connect DATA+ and DATA- to D1+ and D1-. Observe
the same polarity convention throughout the system.
Connect the cable shield or common wire to the SHLD
COM terminal.
DMX TERMINATE
Each port on the RDM Hub is auto-terminated as required
by its operation.
• eDIN DMX/RDM Hub Manual
rev1
STATUS INDICATORS
POWER
INPUT
OUTPUT
FUNCTION
CONFIGURATION
To configure, press and hold the function button until the
current Function LED begins to flash. Momentarily re-
lease then press the button to cycle through the operating
mode options.
release the button. After three seconds, the LED will
change to a steady glow and the new mode will take ef-
fect.
Amber. Steady glow indicates each port's
isolated power supply is OK; off indicates
no power. If all LEDs are off, check that
the module is receiving power.
Amber. Steady glow indicates port latched
to active DMX source. Input and Output
off on all ports indicates no DMX source.
Green. Steady glow indicates port is
transmitting DMX. Input and Output off on
all ports indicates no DMX source.
Amber. Steady glow indicates the current
operating mode. Flashing indicates the
module is in edit mode.
Once the desired mode is selected,
RDM Hub
RDM A/B
Priority
Merge
Rev.0
