Application Note
10/29/2015

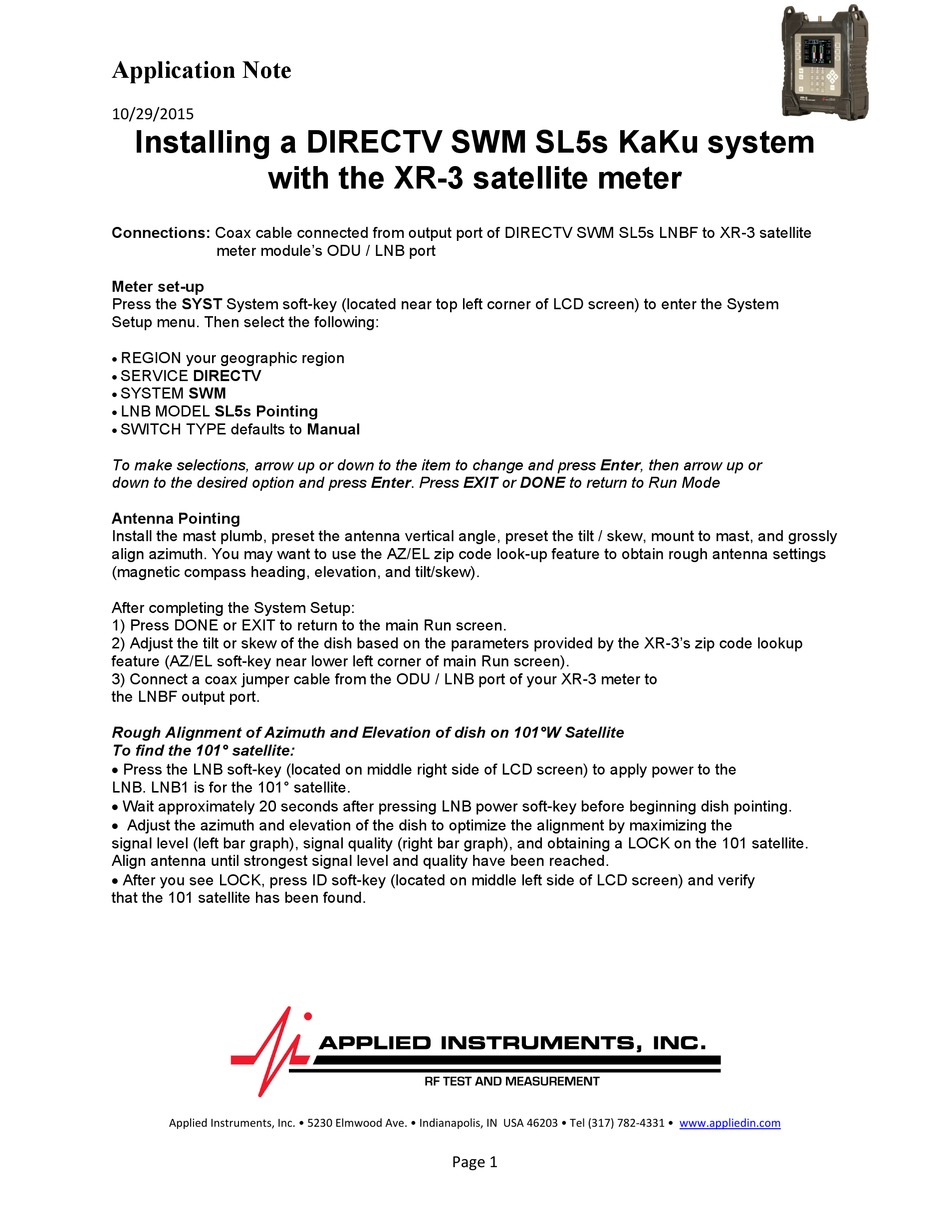

Installing a DIRECTV SWM SL5s KaKu system

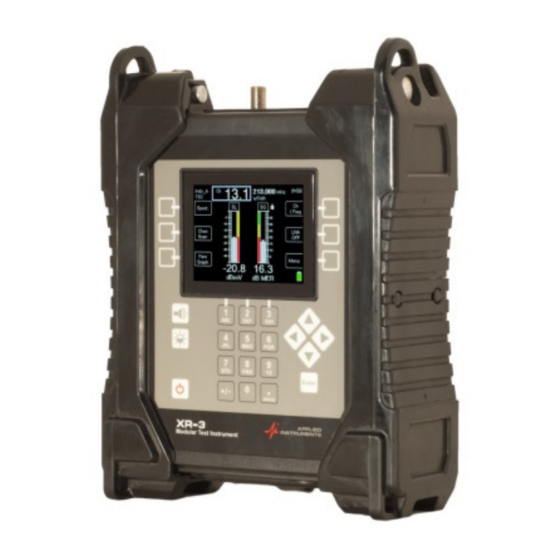

with the XR-3 satellite meter
Connections: Coax cable connected from output port of DIRECTV SWM SL5s LNBF to XR-3 satellite
meter module's ODU / LNB port
Meter set-up
Press the SYST System soft-key (located near top left corner of LCD screen) to enter the System
Setup menu. Then select the following:
REGION your geographic region
SERVICE DIRECTV
SYSTEM SWM
LNB MODEL SL5s Pointing
SWITCH TYPE defaults to Manual
To make selections, arrow up or down to the item to change and press Enter, then arrow up or
down to the desired option and press Enter. Press EXIT or DONE to return to Run Mode
Antenna Pointing
Install the mast plumb, preset the antenna vertical angle, preset the tilt / skew, mount to mast, and grossly
align azimuth. You may want to use the AZ/EL zip code look-up feature to obtain rough antenna settings
(magnetic compass heading, elevation, and tilt/skew).
After completing the System Setup:
1) Press DONE or EXIT to return to the main Run screen.
2) Adjust the tilt or skew of the dish based on the parameters provided by the XR-3's zip code lookup
feature (AZ/EL soft-key near lower left corner of main Run screen).
3) Connect a coax jumper cable from the ODU / LNB port of your XR-3 meter to
the LNBF output port.
Rough Alignment of Azimuth and Elevation of dish on 101°W Satellite
To find the 101° satellite:
Press the LNB soft-key (located on middle right side of LCD screen) to apply power to the
LNB. LNB1 is for the 101° satellite.
Wait approximately 20 seconds after pressing LNB power soft-key before beginning dish pointing.
Adjust the azimuth and elevation of the dish to optimize the alignment by maximizing the
signal level (left bar graph), signal quality (right bar graph), and obtaining a LOCK on the 101 satellite.
Align antenna until strongest signal level and quality have been reached.
After you see LOCK, press ID soft-key (located on middle left side of LCD screen) and verify
that the 101 satellite has been found.
Applied Instruments, Inc. • 5230 Elmwood Ave. • Indianapolis, IN USA 46203 • Tel (317) 782‐4331 • www.appliedin.com
Page 1
Advertisement
Table of Contents
Related Manuals for Applied Instruments DIRECTV SWM SL5s
Summary of Contents for Applied Instruments DIRECTV SWM SL5s
- Page 1 10/29/2015 Installing a DIRECTV SWM SL5s KaKu system with the XR-3 satellite meter Connections: Coax cable connected from output port of DIRECTV SWM SL5s LNBF to XR-3 satellite meter module’s ODU / LNB port Meter set-up Press the SYST System soft-key (located near top left corner of LCD screen) to enter the System Setup menu.
- Page 2 Application Note 10/29/2015 Rough Alignment of Tilt / Skew of dish on 119°W Satellite To check the status of the 119° satellite: Press the LNB soft-key again to switch to LNB2. LNB2 is for the 119° satellite. Adjust the tilt / skew of the dish (rotate dish about a point) to optimize the alignment by maximizing the signal level (left bar graph), signal quality (right bar graph), and obtaining a LOCK on the 119°...
- Page 3 Application Note 10/29/2015 DIRECTV recommends adjusting the azimuth and elevation of the dish while looking at the 101 satellite, adjusting the tilt/skew of the dish while looking at the 119 satellite, and then performing their fine-tuning/dithering process while looking at the 101 satellite. Please refer to DIRECTV’s official instructions regarding their dithering/fine-tuning process for more information.
- Page 4 Application Note 10/29/2015 Checking signal level and quality of individual transponders on each satellite, if desired: After aligning the DIRECTV SWM 5-LNB dish (model SL5s), as an optional step, if you want to look at the signal level and signal quality of the individual transponders on each satellite, use the following System Setup to switch the meter out of Pointing mode and into Control mode: ...
