Applied Instruments Sat Buddy 2 User Instructions

"Sat Buddy 2"
Satellite Signal Meter
User Instructions
DEFINITIONS
LNB: Low Noise Block amplifier. The portion of the antenna dish that receives the
high-frequency signal reflected from the dish and then down-converts it to the
L-band (950-2150 MHz).
IRD: Integrated Receiver Decoder. Also referred to as the set-top box or satellite
receiver. The IRD processes the digital data carried by the RF signal and
provides the baseband picture signal to the television.
RF: Radio Frequency signals
Cable: 75 Ohm coaxial cable
Dish: Oval shaped antenna hardware mounted on the exterior of the customer's
premises.
™
INTRODUCTION

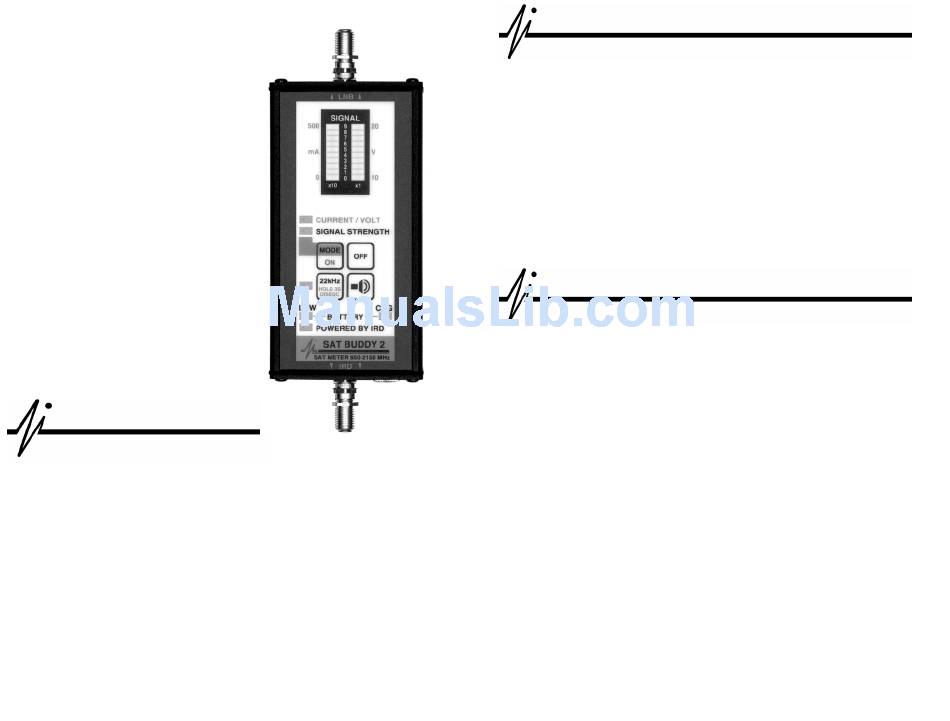

The Sat Buddy 2 satellite meter measures relative RF signal strength when
™
connected to a dish antenna. It is designed for installing and maintaining typical DBS
residential satellite systems. The Sat Buddy 2
voltage being supplied to the LNB. It can power LNBs and multi-switches using its
internal battery or allow IRD power to run through it.
Each Sat Buddy 2 package contains:
™
•
Sat Buddy 2 meter
™
•
Protective rubber boot with clip
•
Wall plug transformer for charging battery
•
Cigarette lighter adapter for charging battery in automobile
•
Instruction page

SPECIFICATIONS

Frequency Range .......................950 to 2150 MHz
Impedance..................................75 Ohm
Measurable Input Level .............-48 to –8 dBm total power
Insertion Loss.............................14 dB (950 to 1450 MHz)
Size (HxWxD)/Weight ..............6.5" x 2.7" x 1.1", 1.0 lbs.
Operating Temperature..............0º to 125º F (-17º to 50º C)
Connectors.................................F81 Double F female barrel (field replaceable)
Power.........................................Uses IRD power when connected, otherwise uses
LNB Power................................Current limited at 475 mA.
Internal Battery Pack .................Rechargeable 12 cell NiMH, 350 mAh, 12-16 volts
Battery Charge Time..................12 hours from wall charger
Wall Charger Output..................12 VDC, 200 mA
Signal Measure Mode
•
Signal Level Display..........Bar graph LEDs
•
Audible Tone .....................Dual beep rate with solid tone at peak
Current/Voltage Mode
•
LNB current draw ..............0 to 500 mA (each LED segment is 50 mA)
•
LNB supply voltage ...........10 to 20 volts (each LED segment is 1V, above 9V)
Specifications subject to change without notice.
1
also measures LNB current and the
™
-60 to –20 dBm per transponder
22 dB (1450 to 2150 MHz)
(16.5 cm x 6.9 cm x 2.8 cm, 455g)
internal battery. IRD voltage loss is 1.3 V.
nominal, 10 minute automatic shut off, 1.3 hours typical
use per charge.
