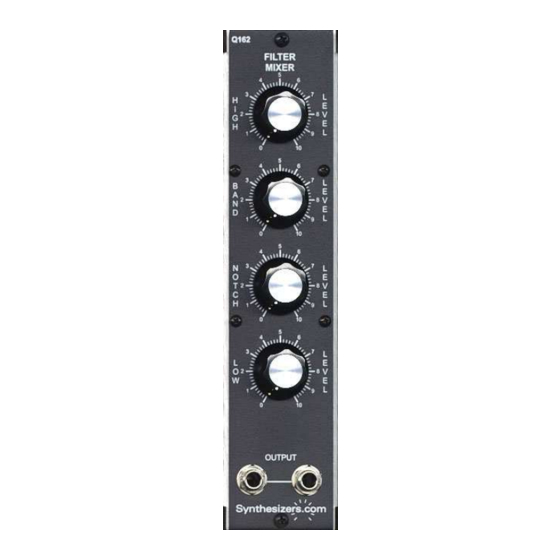

Q162 Filter Mixer
Use the Q162 Filter Mixer next to your Q107 Filter to easily create new sounds. Sim-
ply select the amount of High Pass, Band Pass, Notch, and Low Pass response used
to contribute to the final waveform which is available at 2 connectors.
The Q162 is connected to the Q107 Filter using cables behind the panels. Requires
exchanging connectors on the Q107 filter. Soldering not required.

Specifications

Panel Size: Single width 2.125"w x 8.75"h.
Signal Levels: 10V PP.
Power: +15V@30ma, -15V@30maNone.

Installation

The Q162 normally mounts to the right side of a Q107 Filter. Four jack assemblies
are provided which are made to replace the High, Band, Notch and Low jacks on the
Q107 and provide a cable to connect to the Q162. Each new jack assembly has 2
cables – one short one for connection to the Q107 and one long one which connects
to the Q162. Remove each of the 4 waveform jacks from the Q107 and replace it
with a new jack assembly and connect the short cable to the same place on the Q107

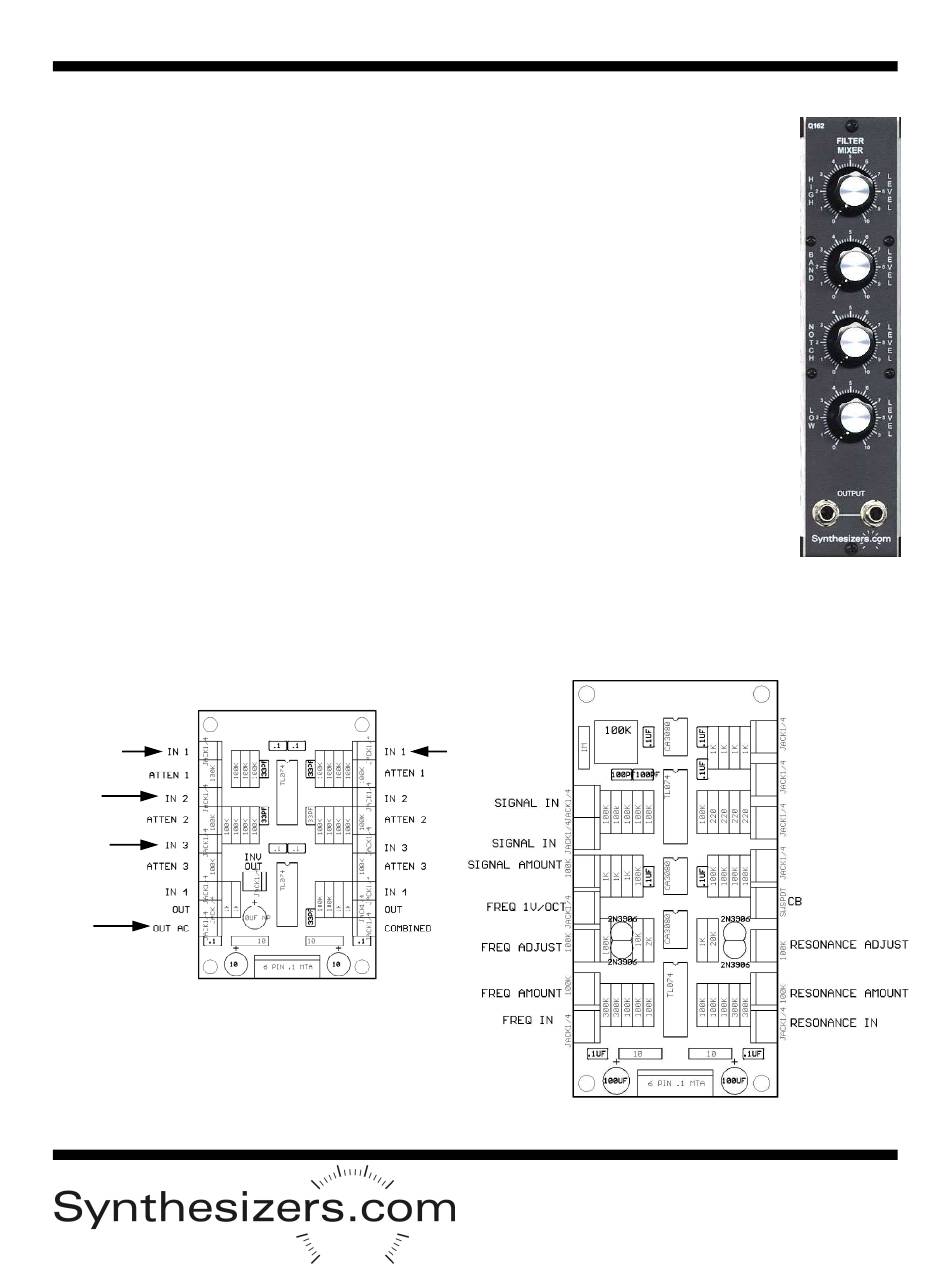

as the old cable. Then connect the 4 long cables to the Q162 according to the draw-
ing below.
Q162 Filter Mixer
High
Band
Notch
Out
Q107 Filter
Low
Aug 2014
Notch
High
Band
Low
